As you can see, the state of interface Bri 2/0:1 is up, its speed is 128 kbps, and
channels (timeslots used) B1 and B2 are in use; the state of Bri 2/0:2 is down, and
the field of timeslots used is NULL.
Network requirements
Router D is connected to a DMS100 switch of the carrier, using the access number
of 8810148. The ISDN lines on interface BRI 2/0 are allocated two SPIDs and LDNs;
they are:
spid1 = 31427583620101, LDN1 = 1234567
spid2 = 31427583870101, LDN2 = 7654321
In addition, the username and password for dialing are user and hello respectively.
Router D needs to place an MP call on interface Bri 2/0 to obtain an address from
the carrier for accessing the Internet.
Network diagram

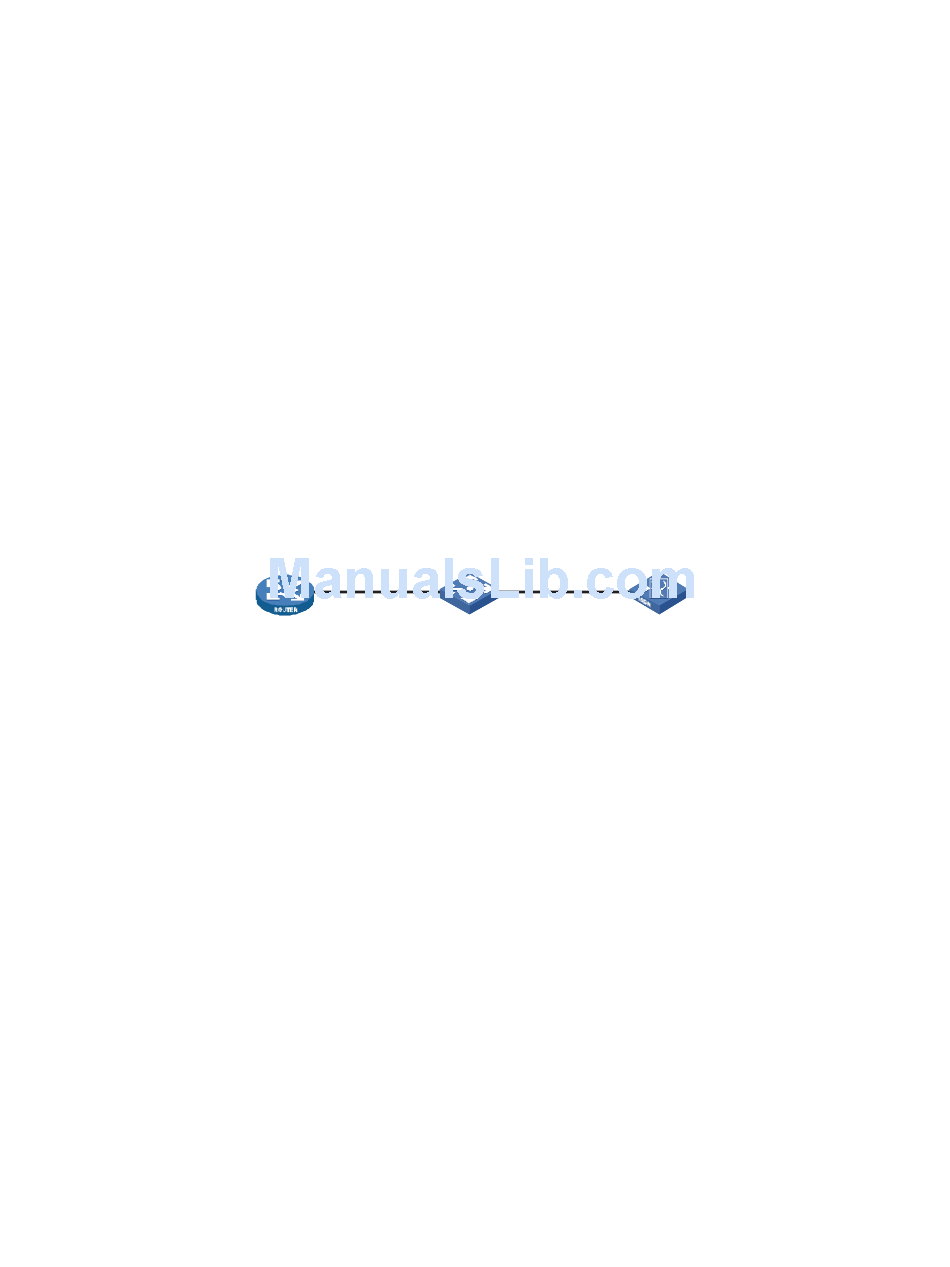

Figure 126 Interoperate with the DMS 100
Router
BRI 2 / 0
SPID 1 : 31427583620101 , LDN 1 = 1234567
SPID 1 : 31427583870101 , LDN 1 = 7654321
Configuration procedure
# Enable IP packet-triggered dial.
<Router> system-view
[Router] dialer-rule 1 ip permit
# Encapsulate interface BRI 2/0 with MP.
[Router] interface bri 2/0
[Router-Bri2/0] link-protocol ppp
[Router-Bri2/0] ppp mp
# Enable C-DCC.
[Router-Bri2/0] dialer enable-circular
[Router-Bri2/0] dialer-group 1
[Router-Bri2/0] dialer circular-group 1
# Configure ISDN parameters.
[Router-Bri2/0] isdn protocol-type ni
[Router-Bri2/0] isdn two-tei
[Router-Bri2/0] isdn number-property 0
[Router-Bri2/0] isdn spid1 31427583620101 1234567
[Router-Bri2/0] isdn spid2 31427583870101 7654321
[Router-Bri2/0] isdn spid service data
NT 1 DMS 100
8810148
