Transparent Bridging
X.25
Transparent Bridging
over HDLC
C
ONFIGURATION
[RouterB-Serial2/0] fr interface-type dte
[RouterB-Serial2/0] bridge-set 1
[RouterB-Serial2/0] fr map bridge 50 broadcast
Network requirements
As shown in Figure
respectively, which are interconnected over X.25. Configure the two routers to
enable transparent bridging between the two LAN segments.
Network diagram

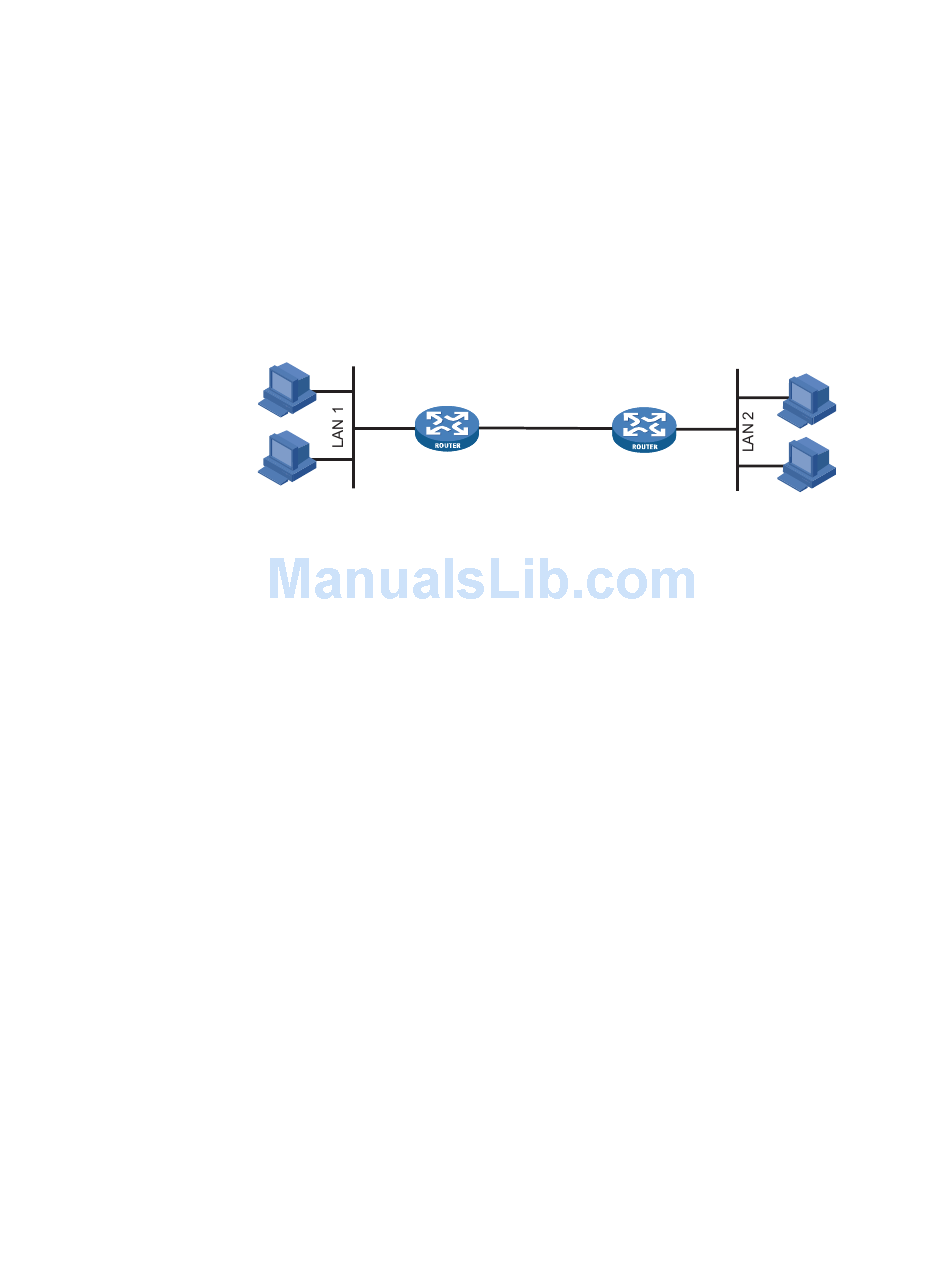

Figure 116 Network diagram for transparent bridging over X.25 configuration
Eth1 /0
Configuration procedure
1 Configure Router A
<RouterA> system-view
[RouterA] bridge enable
[RouterA] bridge 1 enable
[RouterA] interface ethernet 1/0
[RouterA-Ethernet1/0] bridge-set 1
[RouterA-Ethernet1/0] quit
[RouterA] interface serial 2/0
[RouterA-Serial2/0] link-protocol x25 dce
[RouterA-Serial2/0] x25 x121-address 100
[RouterA-Serial2/0] x25 map bridge x121-address 200 broadcast
[RouterA-Serial2/0] bridge-set 1
2 Configure Router B
<RouterB> system-view
[RouterB] bridge enable
[RouterB] bridge 1 enable
[RouterB] interface ethernet 1/0
[RouterB-Ethernet1/0] bridge-set 1
[RouterB-Ethernet1/0] quit
[RouterB] interface serial 2/0
[RouterB-Serial2/0] link-protocol x25
[RouterB-Serial2/0] x25 x121-address 200
[RouterB-Serial2/0] x25 map bridge x121-address 100 broadcast
[RouterB-Serial2/0] bridge-set 1
Network requirements
As shown in Figure
respectively, which are interconnected over an HDLC link. Configure the two
routers to enable transparent bridging between the two LAN segments.
116, LAN 1 and LAN 2 are attached to Router A and Router B
S2 /0
S 2/0
Router A
117, LAN 1 and LAN 2 are attached to Router A and Router B
Eth1/0
Router B
