Hardware Installation and Reference Guide
Item
Weight
Number of fans
Rated voltage
Max. power consumption
Max. fan rotation speed
Max. airflow volume
Max. air pressure
Hot swapping
Cooling
Automatic speed regulation
Status monitoring
1.7

Cables

1.7.1

Console Cable

The equipment supports the DB9 to RJ45 console cable consisting of a DB9 female connector on one end and
RJ45 male connector on the other. A console cable connects the console port of a switch to the serial port of a
terminal, enabling users to configure their equipment locally.

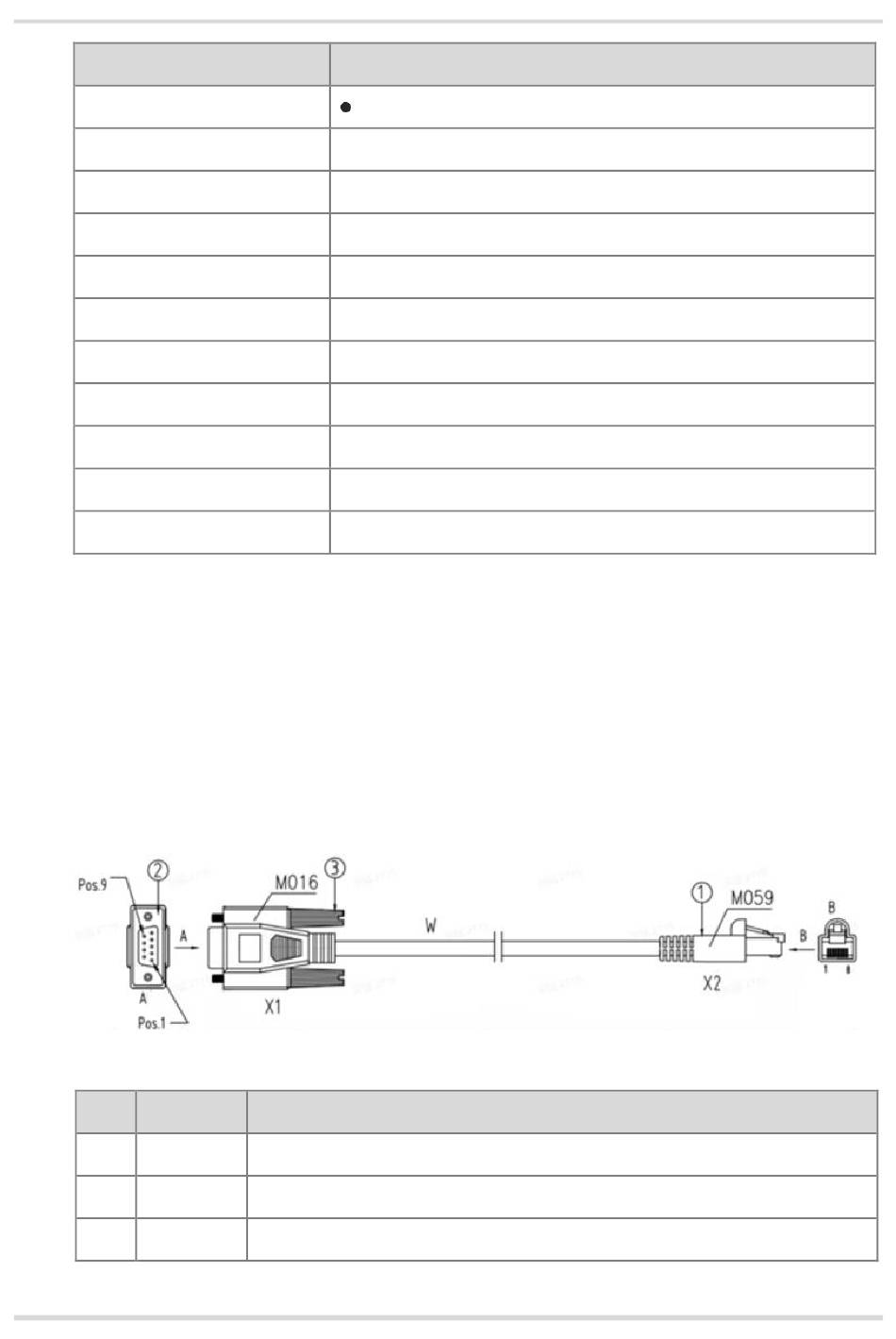

Figure 1-15 Console Cable Structure
Table 1-25 Console Cable Components
No. Component
1 B connector
2 A connector
3 Screw
Specification
Without packing materials: 0.55 kg (1.21 lbs.)
1
12 V DC
44.4 W
8,600 RPM
109.4 CFM
470 Pa
Supported
Front-to-rear airflow (air exhaust on fan module panel)
Supported
Rotation speed monitoring and fault alarm
Description
RJ45 connector with shielded crystal head
DB9 RS-232 female connector with blue rubber core
Screw
21
Overview
