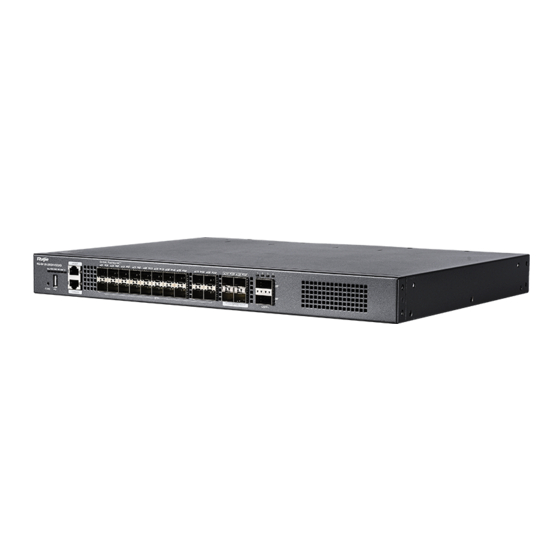

Ruijie RG-S6120 Series Switches
Hardware Installation and Reference Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RG-S6120 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ruijie RG-S6120 Series

Summary of Contents for Ruijie RG-S6120 Series

  • Page 1 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide...
  • Page 2 This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.
  • Page 3 It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts. Obtaining Technical Assistance  Ruijie Networks Website: https://www.ruijienetworks.com/  Technical Support Website: https://ruijienetworks.com/support...

  • Page 4: Product Overview

    Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide 1 Product Overview The RG-S6120 series switch is a next-generation L3 switch featured with high performance, high security and multiple services. Mainly applied to the aggregation layer of the campus network, the switch provides multi-layer switching at full line rate and complete end-to-end Quality of Service (QoS) policies, assigning different service flow with different bandwidth and ensuring no delay for key service flow.
  • Page 5 Rated input current: 7.2 A to 3.5 A Power < 260 W Consumption Refer to Appendix B Optical Module The supported modules may update at any time. Please contact Ruijie Networks for details. Temperature Support temperature warning and overheat protection. Warning GB9254-2008 CLASS A GB4943-2011 Altitude 0 to 5000 m (16404.2 feet)
  • Page 6 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Weight (With two fans and 8 kg (17.64 lbs, with four fan modules and two power modules) Without the power module) Dimensions 442 mm x 387 mm x 44 mm (17.40 in. x 15.24 in. x 1.73 in.), 1RU (W x D x H) The RG-S6120-48XS8CQ switch is a class A product.
  • Page 7 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Note: 1. System indicator 4. SFP+ port indicator 2. Locator indicator 5. QSFP28 port 3. SFP+ port 6. QSFP28 port indicator RG-S6120-48XS8CQ supports 100G QSFP28, 10G SFP+ and 1G SFP modules. For a detailed model and specification, refer to Appendix B.
  • Page 8 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide External Ports The RG-S6120-48XS8CQ switch provides the following ports:  Universal serial bus (USB) port: This port can connect with USB memory to save logs, host versions, warnings and other diagnostic messages. Therefore, it is more convenient to upgrade the software version of the switch on line and save the log information.
  • Page 9 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide The SFP+ port is NOT connected. Solid green The SFP+ port is connected at 10G/1G. SFP+ port indicator 1F-48F The SFP+ port is transmitting or receiving data at Blinking green 10G/1G.
  • Page 10 Rated input current: <3 A@90~264 VAC@full load Power < 85 W Consumption Refer to Appendix B Optical Module The supported modules may update at any time. Please contact Ruijie Networks for details. Temperature Support temperature warning and overheat protection. Warning GB9254-2008 CLASS A GB4943-2011 Altitude...
  • Page 11 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide 0° C to 50° C (32° F to 122° F) Working The temperature decreases by 1° C (1.8° F) as the altitude ranging from 3000m (9842.52 feet) to Temperature 5000m (16404.2 feet) increases by 220m (721.78 feet).
  • Page 12 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Front Panel Figure 1-2 Front Panel of RG-S6120-20XS4VS2QXS Note: 1. System indicator 10. SFP28 port indicator 2. PWR1 indicator 11. SFP28 port 3. PWR2 indicator 12. QSFP+ port indicator 4. Fan indicator 13.
  • Page 13 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Note: 1. Grounding point 3. Power slot 2. Fan slot 4. Asset management asset Asset Management Label The asset management label is next to the FAN2 slot of the rear panel and can be removed. The label contains information such as asset name, category, number and registration date on the label.
  • Page 14 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Identificatio Indicator n on the Status Meaning panel The system is powered off. 4） A system fault occurs. Solid red System indicator 5） The temperature reaches the upper limit. Status (Front panel/rear panel) Blinking green Initialization is in progress.
  • Page 15 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide The RG-S6120-20XS4VS2QXS switch draws air from bottom to top using the rear panel fan to ensure that the device works properly in the specified environment. Make sure to maintain a minimum distance of 100 mm around the device for ventilation.
  • Page 16 Refer to Appendix B Optical Module The supported modules may update at any time. Please contact Ruijie Networks for details. All RJ45 ports support IEEE802.3bt type4 90W PoE. The max power supported by the switch is subject to the actually configured power supply.
  • Page 17 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide GB4943-2011 Altitude 0 to 5000 m (16404.2 feet) 0° C to 45° C (32° F to 113° F) Working The temperature decreases by 1° C (1.8° F) as the altitude ranging from 3000m (9842.52 feet) to Temperature 5000m (16404.2 feet) increases by 220m (721.78 feet).
  • Page 18 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Front Panel Figure 1-2 Front Panel of RG-S6120-24XMG4XS4VS-UP-E Note: 1. System indicator 8. SFP+ port 2. Power indicator 9. SFP28 port 3. Fan indicator 10. PoE button 4. PoE indicator 11. FUNC button 5.
  • Page 19 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Asset Management Label The asset management label is next to the FAN3 slot of the rear panel and can be removed. The label contains information such as asset name, category, number and registration date on the label.
  • Page 20 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide The locator takes effect. It is controlled by O&M Solid blue personnel remotely. The power module is NOT in the position. The power module works properly. Solid green Power indicator 1） A power fault occurs.

  • Page 21: Power Module

    Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide 1.4 Power Module 1.4.1 RG-PA550I II-F RG-S6120-48XS8CQ switch supports RG-PA550I II-F. RG- PA550I II-F is a smart power module and supports communication with the switch and asset management, including model, version number and SN. The power module can be hot swapped and supports asset management, including model, version number and SN.
  • Page 22 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide 100 VAC to 240 VAC Rated Voltage 240 VDC 50/60 Hz 90 VAC to 264 VAC Maximum Voltage 192 VDC to 288 VDC 47/63 Hz Input Current 3.5 A to 7.2 A 3.6 A (Rated Current)
  • Page 23 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide 90 VAC to 264 VAC Maximum Voltage 192 VDC to 288 VDC 47/63 Hz Input Current 3 A Max Output Voltage 12 V Max Current Output 12.5 A Max Power Output...
  • Page 24 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide The system requires at least one power module. Please install a blank panel in each vacant slot to maintain proper cooling and air flow throughout the system. Power Model RG-PA520I-P-F (AC input)
  • Page 25 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Solid red An output error occurs. 1.4.4 RG-PA1150P-F RG-S6120-24XMG4XS4VS-UP-E switch supports RG-PA1150P-F. RG-PA1150P-F is a smart power module and supports communication with the switch and asset management, including model, version number and SN. The power module can be hot swapped and supports asset management, including model, version number and SN.
  • Page 26 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide I2C Communication Allows the host to communicate with the power module by I2C. Supports dual power modules to cooperate in parallel, enabling PE with 1+1 Power Supply Redundancy redundancy and redundant power supplies with current sharing.

  • Page 27: Preparation Before Installation

    Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide 2 Preparation before Installation 2.1 Safety Precautions To avoid body injury and device damage, please carefully read the safety precautions before you install the RG-S6120 series switch. The following safety precautions do not cover all possible dangers.
  • Page 28 Direct or indirect touch through a wet object on high-voltage and mains supply can bring a fatal danger. The RG-S6120 series switch has more than one input power supply. Please unplug all power cables after powering off the switch.

  • Page 29: Installation Site Requirements

    Install the switch in an open cabinet as much as possible. If you install the switch inside a closed cabinet, be sure that the cabinet has a good ventilation and heat dissipation system.  Be sure that the cabinet is firm enough to bear the weight of the RG-S6120 series switch and its installation accessories. ...

  • Page 30: Cleanness Requirements

    2.2.5 System Grounding Requirements A good grounding system is the basis for the stable and reliable operation of the RG-S6120 series switch. It is the key to prevent lightning stroke and resist interference. Please carefully check the grounding conditions on the installation site according to the grounding requirements, and perform grounding properly as needed.

  • Page 31: Emi Consideration

    Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide The device using AC power supply must be grounded by using the yellow/green safety grounding cable. Otherwise, when the insulating resistance decreases between the power supply and the enclosure in the device, electric shock may occur.

  • Page 32: Precaution For Fiber Connection

    Air-laid paper, fiber end microscope Meter Multimeter, errormeter, optic-power meter RG-S6120 series switch is not shipped with a tool kit. You need to prepare a tool kit by yourself. 2.5 Package Contents Package Contents Chassis, Yellow/green grounding cables; Quick installation guide; Packing list, Pouched...

  • Page 33: Product Installation

    Bind cables or fibers Installation check 3.2 Installation Verification The RG-S6120 series switch is a complicated device. Carefully plan and arrange the installation location, networking mode, power supply, and wiring before installation.  The installation location provides sufficient space for heat dissipation.

  • Page 34: Cabinet Installation

    Precautions Before mounting the RG-S6120 series switch into the cabinet, first verify that the front and back brackets of the cabinet are at the right locations. If the bracket is too far forward, the front panel of the device may be too close to the front door,...
  • Page 35 Mounting the Switch to a Rack The RG-S6120 series switch is qualified for EIA standard and can be installed in 19-inch wiring cabinet. During the process of installation, keep the front panel of the switch forward. It is recommended use tray to install the RG-S6120 series switch and fix the tray on the bracket, or use the rear bracket provided with the switch.
  • Page 36 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide The mounting brackets are located at the four of the six screw holes at both sides on the rear panel of the host. Distinguish the left and the right rear brackets according to the marked directions.

  • Page 37: Installing And Removing A Fan Module

    Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide 3.5 Installing and Removing a Fan Module Wear anti-static gloves before the following operations. Installing an Fan Module Take out a new fan module from the fan module box. Hold the handle at the end of the fan module. Insert the fan module to the chassis slowly along the guide rail until it is fully seated, and make sure that it is in good contact with the slot.
  • Page 38 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Install the blank panel and put the removed fan module into its package Figure 3-5 Removing an M1SFAN I-F Fan Module Withdraw the fan module uprightly and slowly. Install a blank panel on the location where a fan module is removed to ensure normal ventilation and dissipation and avoid dust in the chassis.
  • Page 39 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Insert the power module smoothly. Please pay attention to the direction of the power panel to avoid wrong insertion. If it is difficult or even impossible to insert the module, pull out the module, make sure the power module and guide rail are well aligned, and then insert the module again.
  • Page 40 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Figure 3-3 Installing Power Cord Retainer Removing a RG-PA550I II-F Power Module Press the plug of the power module, Hold on to the module handle with one hand to pull out part of the module, hold the bottom of it with the other hand, and pull out the power module uprightly and slowly.
  • Page 41 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Installing a RG-PA150I-F Power Module Take a new power module out of the package and confirm the input mode and the input parameters of the power module match the requirements. Remove the blank panel and take the plane printed with power information as the top panel of the power module.
  • Page 42 3.7 Grounding A PGND is installed on the back of RG-S6120 series switch. First connect the PGND to the grounding terminal of the cabinet and then connect the grounding terminal to the grounding bar of the equipment room.

  • Page 43: Connecting The External Interface Cables

    Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Connect the RJ45 connector to the Console interface of the management engine module with shipped console cable , and connect the DB9 connector to the NM or control terminal. By default, the baud rate is 9600, data bit 8, parity check none, stop bit 1, and flow control none.
  • Page 44 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide  Verify that the cabinet has been fastened completely, and does not move or tilt.  Verify that the device has been installed in the cabinet, and all the cables have been fastened to the cabinet.

  • Page 45: System Debugging

    Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide 4 System Debugging 4.1 Establishing the Configuration Environment Establishing the Configuration Environment Connect the PC to the console port of the switch through the console cable, as shown in Figure 4-1.
  • Page 46 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Choose Cancel. The Connection Description window appears as shown in Figure 4-2. Figure 4-2 Enter the name of the new connection and click OK. A window appears as shown in Figure 4-3. In the column of Connect Using field, select the serial port you want to use.

  • Page 47: Power-On Startup

    Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide After the serial port parameters are set, click OK to enter hyper terminal window. 4.2 Power-on Startup Checking before Power-on  Check if the switch is fully grounded.  Check if the fan module and the power module are correctly installed.

  • Page 48: Monitoring And Maintenance

    5 Monitoring and Maintenance 5.1 Monitoring Indicator When the RG-S6120 series switch is running, users can monitor the status of host and each module by inspecting corresponding indicators.  When the indicator of the master CM is red, it means the system has a fault, in which case you can determine and eliminate the fault by viewing with the management software.
  • Page 49 When the power supply fails, you only need to disconnect the power cable, unplug the power module, replace it with a qualified one, and then connect the power cables. Replacing Lithium Battery The built-in lithium batteries can support the real time clock of the RG-S6120 series switch without external power supply. Please contact Ruijie technical support for replacing lithium batteries.

  • Page 50: General Troubleshooting Procedures

    Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide 6 Troubleshooting 6.1 General Troubleshooting Procedures Abnormal working after installation Check the cabinet installation Check the mounting of the switch in the cabinet Check the power connection Check the installation of the power supply module...

  • Page 51: Common Issues

    Check whether the configuration of the serial port on the hyper terminal is the same as that described in Ruijie RG-S6120 Series Switches RGOS Configuration Guide. If not, modify the serial port configuration parameters. If there is still no serial port printed information, please contact Ruijie Customer Service Department for technical support.
  • Page 52 Such a problem is related to the settings of the serial port. Check if the settings of such parameters as the baud rate match those in Ruijie RG-S6120 Series Switches RGOS Configuration Guide. Fault 6: The newly-inserted service card module fails to be powered on.

  • Page 53: Appendix A Connectors And Connection Media

    Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Appendix A Connectors and Connection Media 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX Port 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX is a port that supports self-adaptation of five rates, and automatic MDI/MDIX Crossover at these three rates. 10GBASE-T 10GBASE-T complies with IEEE 802.3an standard, and the supported cables and cabling distances are listed in the following table.
  • Page 54 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Compliant with IEEE 802.3bz, 5GBASE-T requires 100-ohm CAT6 UTP or STP (recommended) with a maximum distance of 100 meters (328 feet). The CAT6 UTP wire must meet TIA TSB-5021 requirements. And the recommended cabling rules are as follows: 1) Avoid mixed cabling with other cables, or use metal clapboard in the trunking to isolate different wires.
  • Page 55 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide 100BASE-TX In addition to the above cables, the 100BASE-TX can use up to 100m of 100-ohm CAT5. Figure A-2 shows the definition of pin signal concerning the 100BASE-TX: Figure A-2 Definition of pin signal concerning the 100BASE-TX...

  • Page 56: Appendix B Mini-Gbic, 10G, 25G, 40G And 100G Module

    Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Appendix B Mini-GBIC, 10G, 25G, 40G and 100G Module We provide 1000M SFP modules (Mini-GBIC modules), 10G SFP+ modules, 40G QSFP+ modules and 100G modules. according to the types of interfaces of the switch modules. You can select modules to suit your specific needs. The following models and technical specifications of some 1000M SFP modules, 10G SFP+ modules, 40G QSFP+ modules and 100G modules are listed for your reference.
  • Page 57 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide MINI-GBIC-ZX80-SM1550 80km MINI-GBIC-ZX100-SM1550 100km GE-SFP-LX20-SM1310-BIDI 9/125 20km GE-SFP-LX20-SM1550-BIDI 9/125 20km GE-SFP-LH40-SM1310-BIDI 9/125 40km GE-SFP-LH40-SM1550-BIDI 9/125 40km SFP-S4-R1000P1 V1 1310 9/125 10km SFP BIDI Modules Rate/Distance Model GE-SFP-LX20-SM1310-BIDI Gigabit/20km GE-SFP-LX20-SM1550-BIDI GE-SFP-LH40-SM1310-BIDI Gigabit/40km GE-SFP-LH40-SM1550-BIDI BIDI modules must be used in pairs.
  • Page 58 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide XG-SFP-ER-SM1550 1550 40km -4.7 -11.3 interface) XG-SFP-ZR-SM1550 1550 80km interface) 62.5 SFP-M3-R1000P1 2000 300m -7.5 interface) SFP-S1-R1000P1 1310 10km -8.2 -10.3 interface) SFP-S4-R1000P1 V2 1310 10km -8.2 -10.3 interface) The existing 10G SFP+ copper modules:...
  • Page 59 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide interface) 150m 4700 (OM4) 300m 2000 40G-QSFP-LS (OM3) -7.6 to 2.3 -9.9 to 2.4 (MPO R-MM850 (Perlane) (Perlane) 400m interface) 4700 (OM4) 40G-QSFP-LR -7.0 to 2.3 -13.7 to 2.3 1310 10km...

  • Page 60: Appendix C Lightning Protection

    Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Appendix C Lightning Protection Installing AC Power Arrester (lightning protection cable row) The external lightning protection cable row should be used on the AC power port to prevent the switch from being struck by lightning when the AC power cable is introduced from the outdoor and directly connected to the power port of the switch.
  • Page 61 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Installing the Ethernet Port Arrester During the switch usage, the Ethernet port arrester should be connected to the switch to prevent the switch damage by lightning before the outdoor network cable connects to the switch .
  • Page 62 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide You should pay attention to the following conditions during the actual installation to avoid influencing the performance of the Ethernet port arrester:  Reversed direction of the arrester installation. You shall connect the external network cable to the “IN” end and connect the switch Ethernet port to the “OUT”...

  • Page 63: Appendix D Cabling Recommendations In Installation

    Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Appendix D Cabling Recommendations in Installation When the switches are installed in standard 19-inch cabinets, the cables are tied in the binding rack on the cabinet by the cable management bracket, and top cabling or bottom cabling is adopted according to the actual situation in the equipment room.
  • Page 64 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide  Cables of different types (such as power cords, signal cables, and grounding cables) should be separated in cabling and bundling and no mixed bundling is allowed. When they are close, crossover cabling can be adopted.
  • Page 65 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Figure D-3 Bundling up cables (3)  Cables not to be assembled or remaining parts of cables should be folded and placed in a proper position of the cabinet or cabling slot. The proper position indicates a position that will not affect device running or cause device damage or cable damage during commissioning.
  • Page 66 Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Figure D-4 Cable fastening  The hard power cable should be fastened at the terminal connection area to prevent stress on terminal connection and cable.  Do not use self-tapping screws to fasten terminals.

  • Page 67: Appendix E Site Selection

    Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Appendix E Site Selection  The machine room should be at least 5km away from the heavy pollution source such as the smelter, coal mine and thermal power plant, 3.7km away from the medium pollution source such as the chemical industry, rubber industry and electroplating industry, and 2km away from the light pollution source such as the food manufacturer and leather plant.

  • Page 68: Appendix F Ruijie Intelligent Tech Assistant

    Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide Appendix F Ruijie Intelligent Tech Assistant Scan the QR code to get help. · Ruijie Networks Intelligent Service: http://yixiu.ruijie.com.cn:8888/robot/interface/index.html · Ruijie Networks Official Website: https://www.ruijienetworks.com/ · Ruijie Customer Service: 86-4008-111-000...
