Hardware Installation and Reference Guide

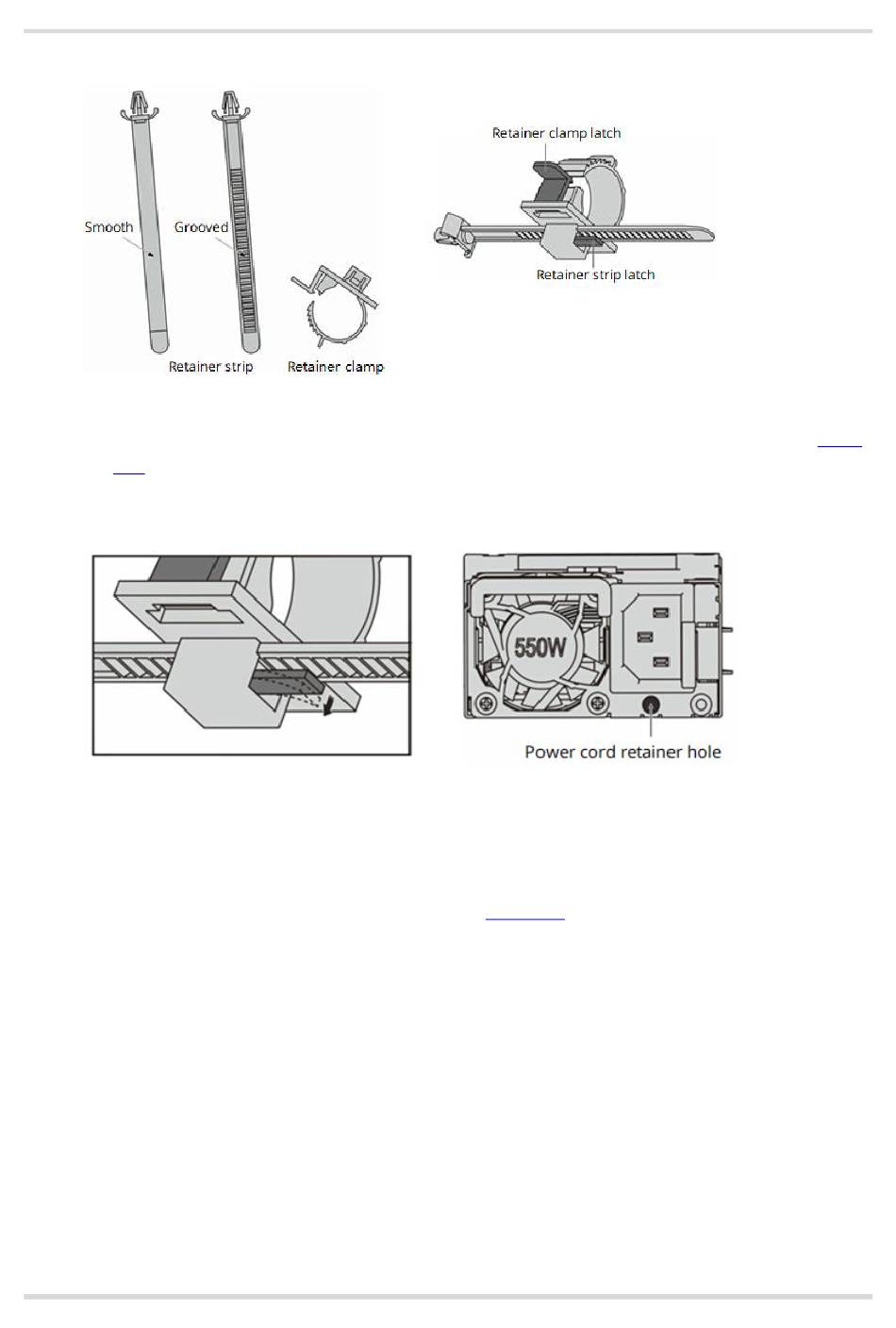

Figure 3-9 Retainer Strip, Retainer Clamp, and Latches
(2) Thread the retainer strip through the hole at the bottom of the clamp and lock it into place, as shown in
3-10. If you want to remove the strip, press the retainer strip latch and pull the strip out.
Figure 3-10 Retainer Strip
(3) Check whether the power cord retainer is assembled properly. If you can remove the strip without pressing
the retainer strip latch, the strip is not installed properly. Try with the other side of the strip.
(4) Fix the end of the retainer strip to the power module, to hold the clamp in place.
(5) Slide the retainer clamp around the AC power cord. If you want to adjust the clamp to secure the AC power
cord, press the retainer clamp latch first, as shown in Figure 3-11.
46
Installing the Switch
Figure
