Hardware Installation and Reference Guide

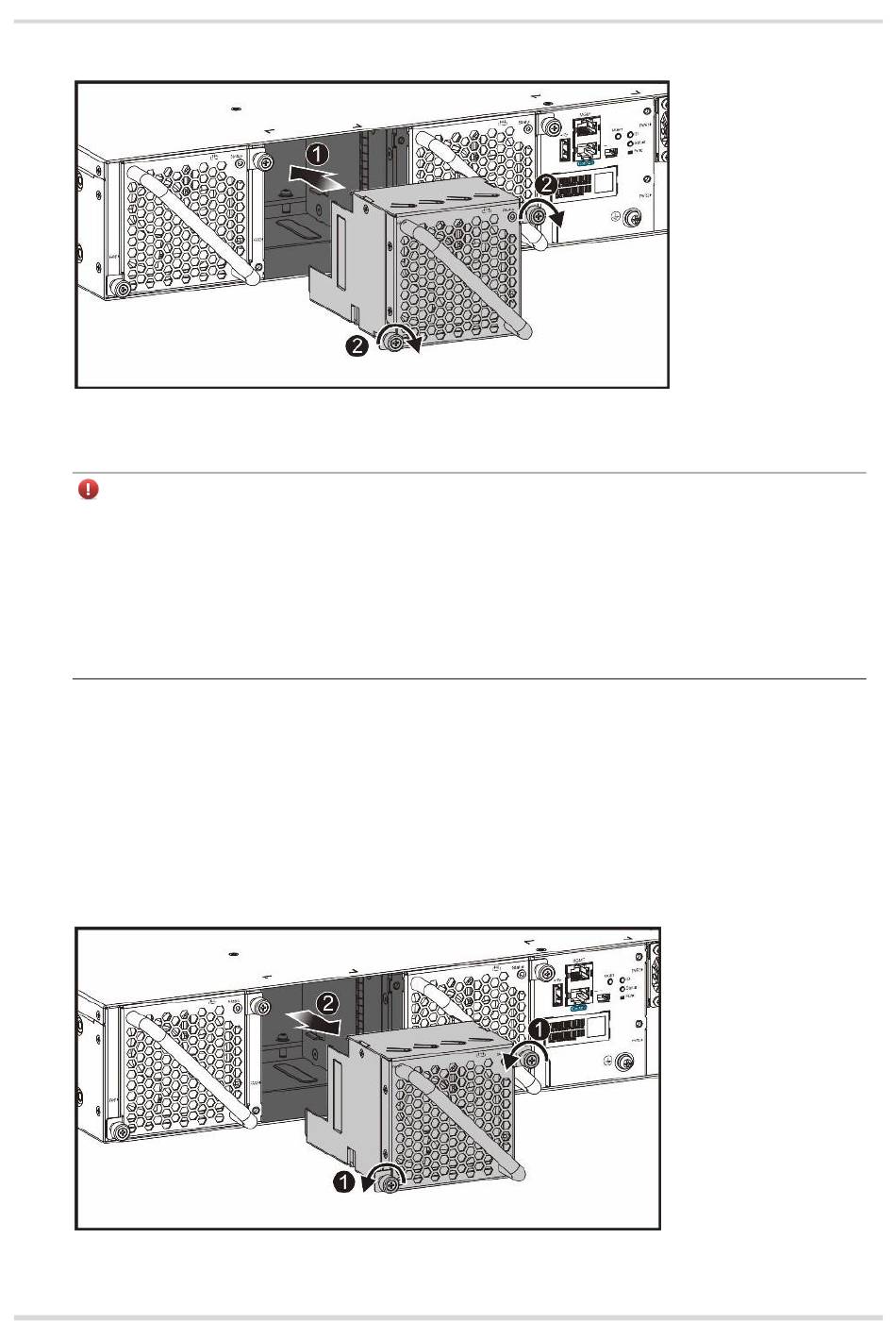

Figure 3-4 Installing the Fan Module
Warning

Slide the fan module all the way into the chassis gently. Align the fan module in the right orientation to the
open fan slot.

If you are not able to push the fan module all the way into the slot, carefully slide the module out of the
slot and repeat step 2 to reinstall the module.

If you are not able to screw in the captive screw, the fan module may not come in contact with the
chassis.

All fan and power modules must have the same airflow direction or else an error can occur.
3.5.2

Removing the Fan Module

(1) Unscrew the captive screws on the fan module.
(2) Grasp the handle on the fan module and slide the module out of the slot.
(3) Install the filler panel in the empty slot. Put the removed module back into its packing materials.
Figure 3-5 Removing the Fan Module
42
Installing the Switch
