Hardware Installation and Reference Guide

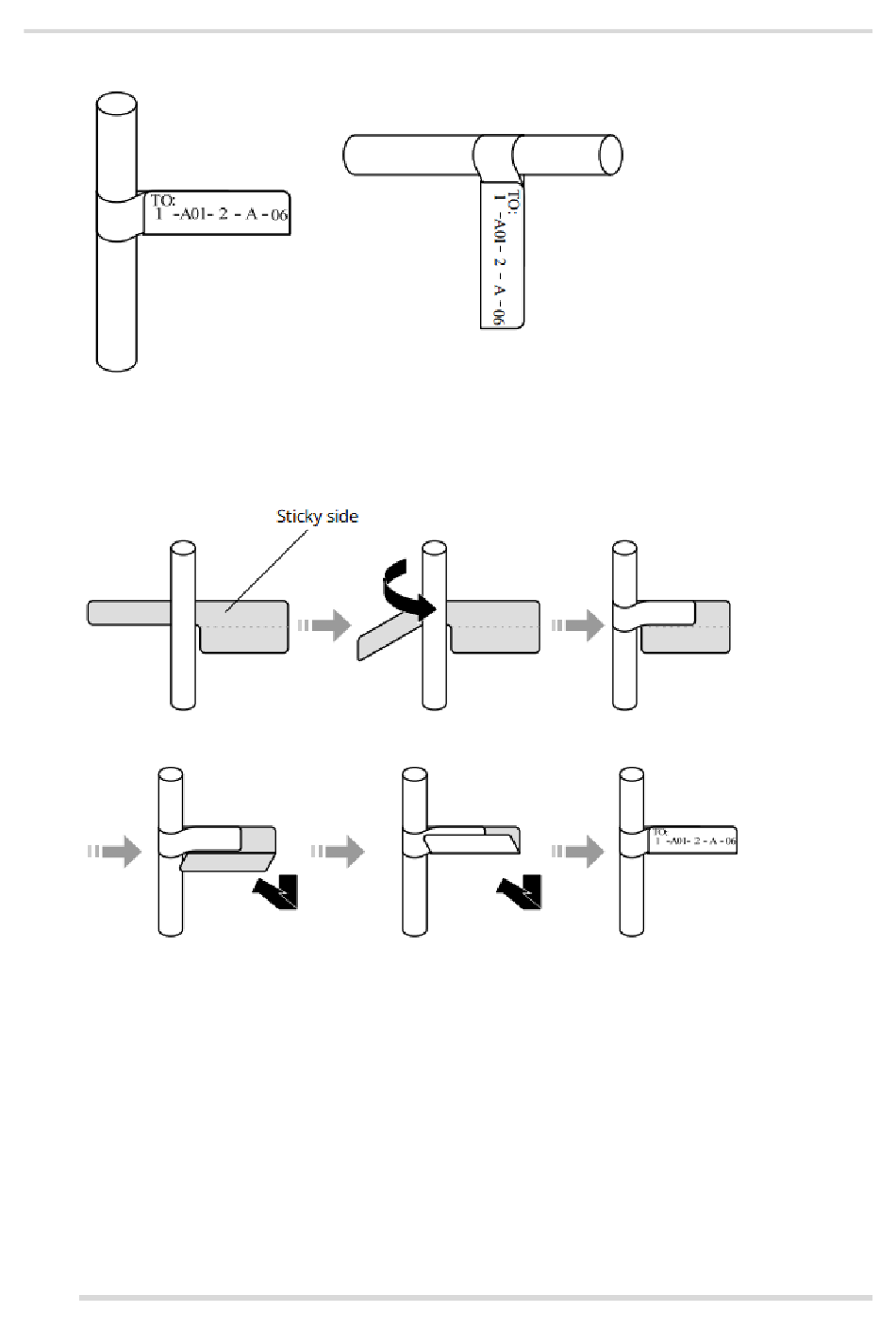

Figure 7-1 Keeping the Label Text Area Facing Right or Downwards
(2) Labeling procedure
Figure 7-2 Signal Cable Labeling Procedure
7.1.3

Label Contents

The contents of the two sides of the label identify the location of the ports connected to the two ends of the
power cord. Fill in the label according to the specific environment.
(1) Fill the content of the local end of the cord location in area ①.
(2) Fill the content of the remote end of the cord location in area ②.
(3) Area ③ is collapsed when the label is pasted.
