Hardware Installation and Reference Guide
Figure 7-3 Signal Cable Label
7.2

Connectors and Media

7.2.1

100BASE-TX/10BASE-T Port

Table 7-1 100BASE-TX/10BASE-T Pin Assignment
Pin
1
2
3
6
4, 5, 7, 8

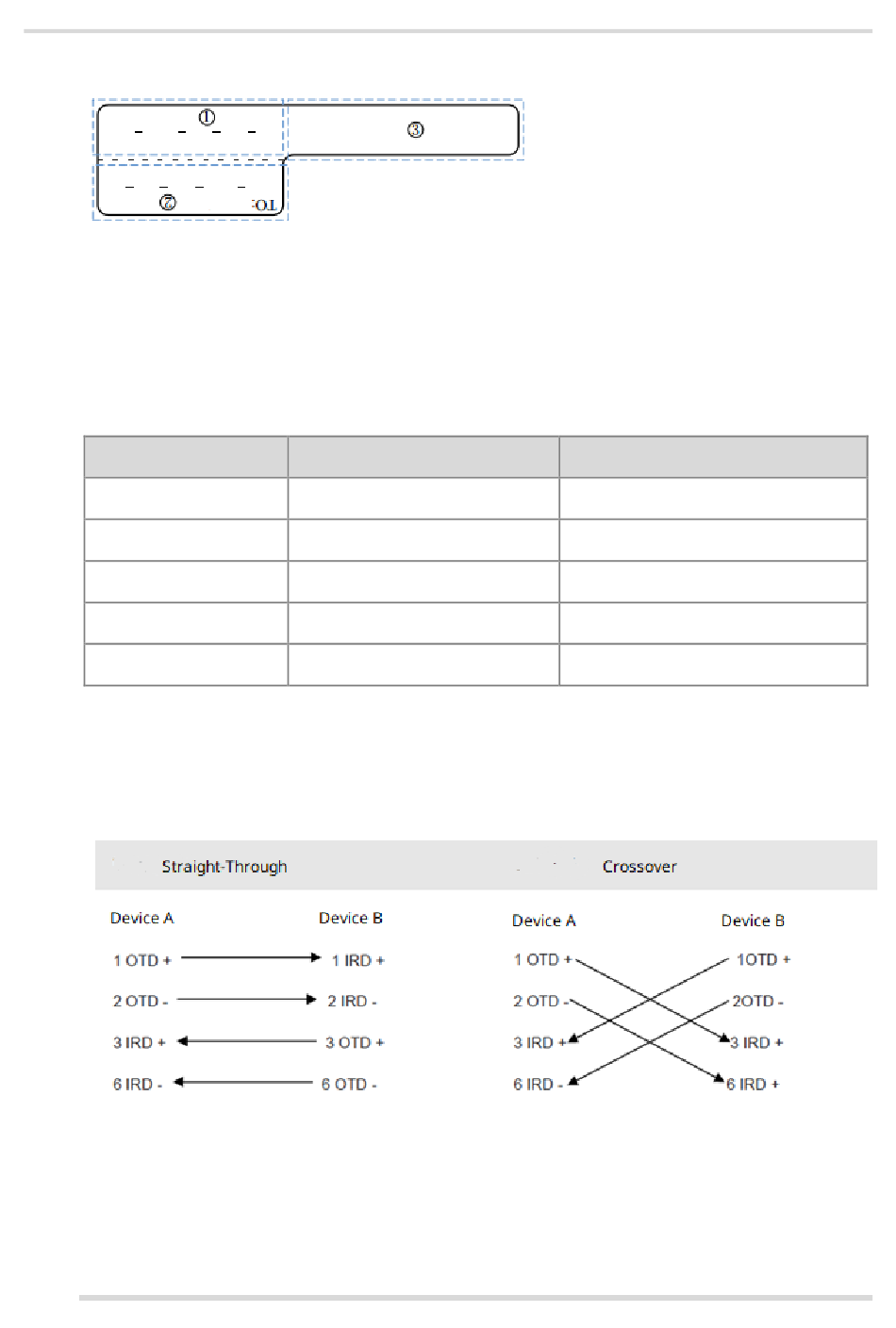

The following figure shows 100BASE-TX/10BASE-T straight-through and crossover cables.
Figure 7-4 100BASE-TX/10BASE-T Twisted Pairs
7.2.2

1000BASE-T Port

Compliant with the IEEE 802.3ab standard, 1000BASE-T requires CAT5, CAT5e or higher standard 100-ohm
twisted pairs with a distance of up to 100 meters (328.08 ft.). The 1000BASE-T port employs four pairs of wires
MDI Mode
Output Transmit Data+
Output Transmit Data–
Input Receive Data+
Input Receive Data–
Not Used
MDI-X Mode
Input Receive Data+
Input Receive Data-–
Output Transmit Data+
Output Transmit Data–
Not Used
60
Appendix
