Hardware Installation and Reference Guide

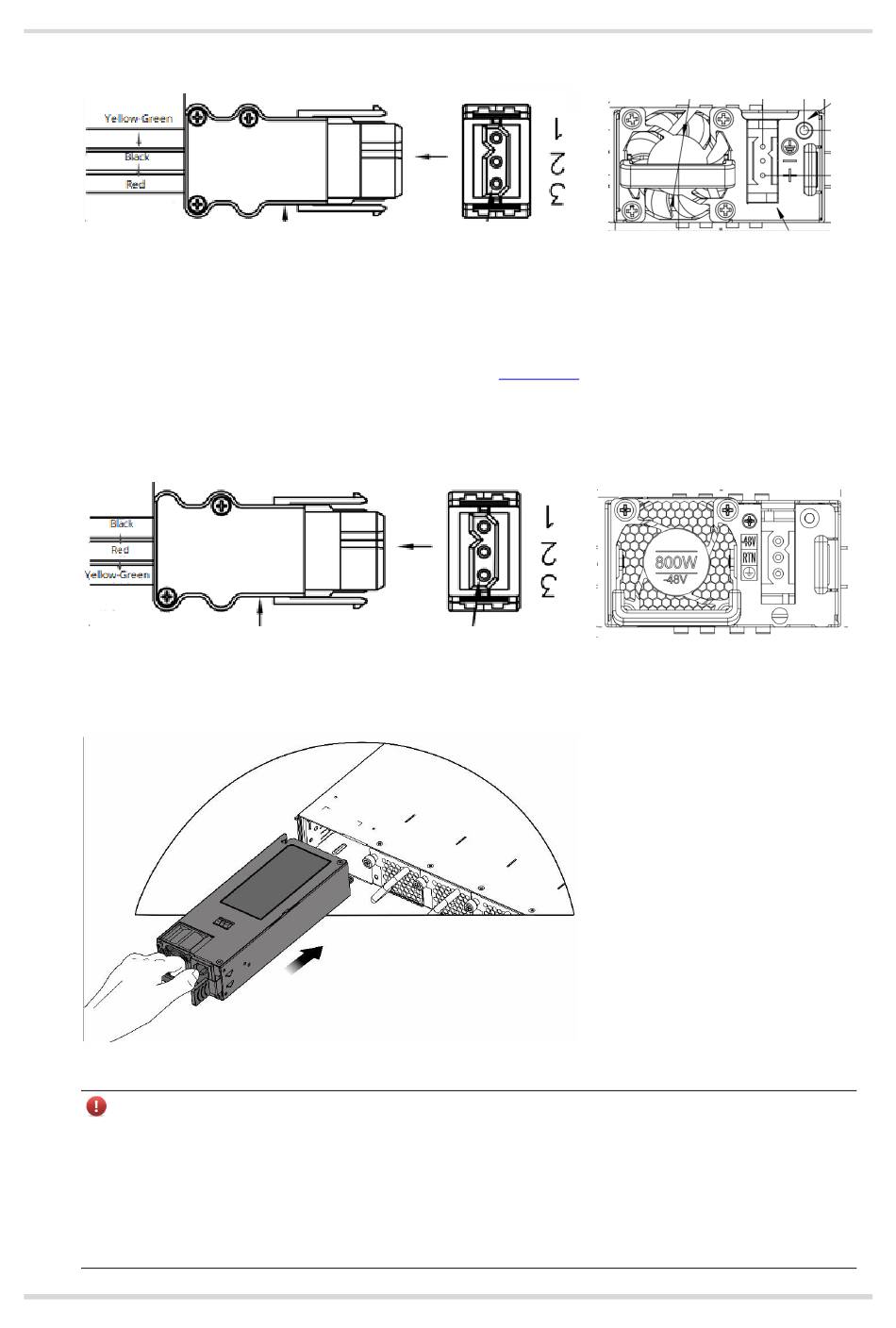

Figure 3-12
Power Supply A
The input terminals of power supply B are deep blue, which are –48 V, RTN, and PGND from top to
○
bottom. Power supply B requires power cord B (HST-RJ-250, sequence of the colored wires from top to
bottom: black, red, and yellow-green), as shown in
Figure 3-13
Power Supply B
Figure 3-14
Installing the RG-PD800I-F
Warning
Slide the power module all the way into the chassis gently. Align the power module in the right orientation
to the open power slot.
If you are not able to push the power module all the way into the slot, carefully slide the module out of the
slot, align the module with guide rails, and reinstall the module.
All fan and power modules must have the same airflow direction or else an error can occur. Verify that the
power module must match the power cord.
Figure
3-13.
48
Installing the Switch
