Hardware Installation and Reference Guide

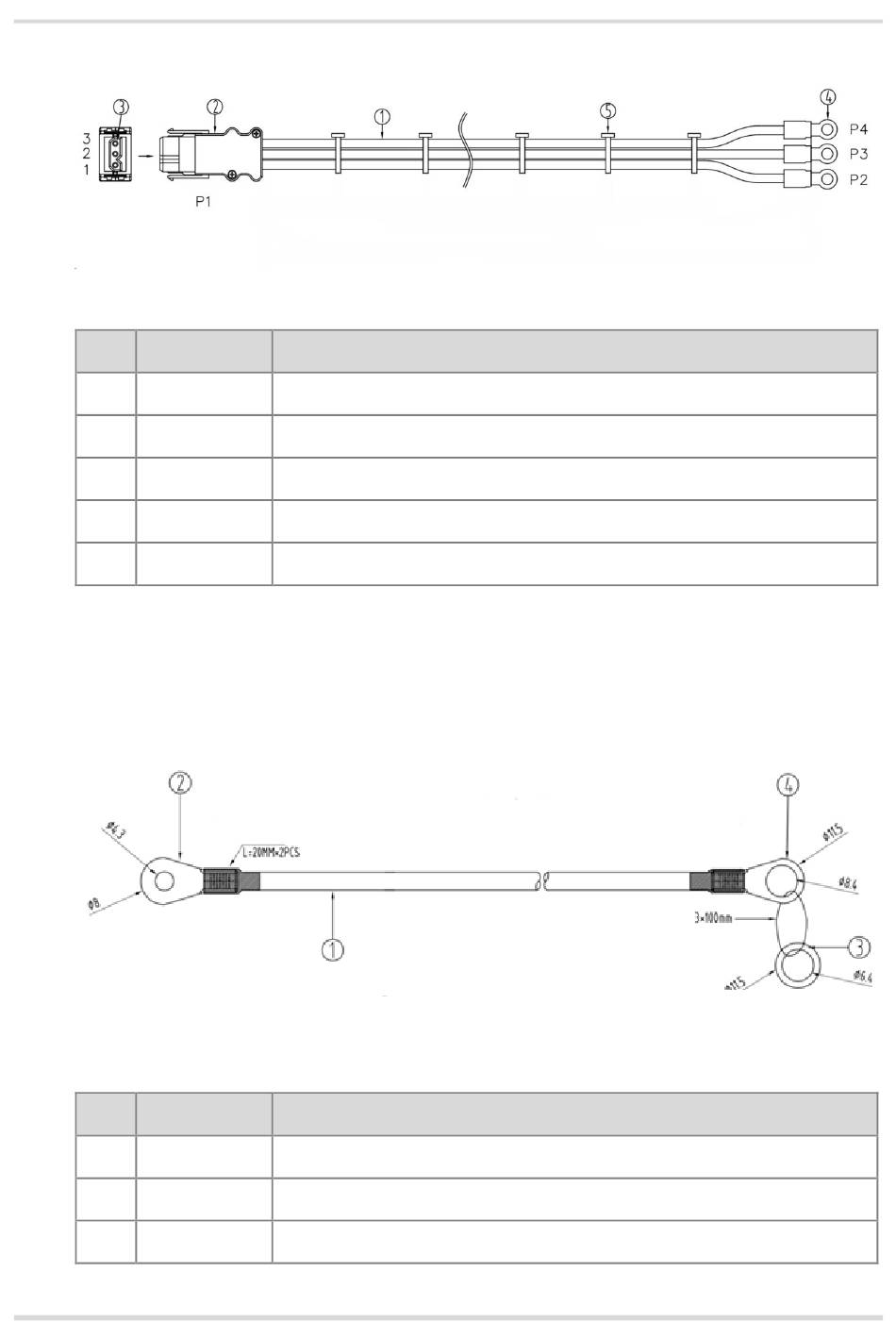

Figure 1-18
DC Power Cord Structure
Table 1-27
DC Power Cord Components
No.
Component
1
Cable sleeve
2
Housing
3
Terminal stud
4
Lug
5
Cable tie
1.7.4
Grounding Wire
Figure 1-19
Grounding Wire Structure
Table 1-28
Grounding Wire Components
No.
Component
1
Cable sleeve
2
Small lug
3
Copper washer
Description
UL1015, 12 AWG
D99602-10300-W, black
S99601-000G9-W
313053VM, M5 screw
2.5 x 80 mm (3.15 in.) cable tie
Description
UL1015 18 AWG, yellow-green, 2 meters (6.56 ft.), crimping
HX430A-21T lug
ID: 6.4 mm (0.25 in.), OD: 11.5 mm (0.45 in.), T: 1 mm (0.04 in.)
24
Overview
