Hardware Installation and Reference Guide
3.3
Installing the Chassis
3.3.1
Installation Guidelines
Please verify that the front and rear brackets of the rack are in the right locations before mounting. If the front
brackets are too close to the front door, there will not be sufficient clearance between the front panel and the
door. As a result, the front door cannot be closed after Ethernet cables and optical fibers are connected to the
chassis. Generally, maintain a minimum clearance of 10 mm (0.39 in.) between the front panel and the front
door. Before installation, verify the following guidelines are met:
The rack has been secured.
The various components in the rack have been installed.
There are no obstacles inside or around the rack when installing the switch.
3.3.2
Mounting the Brackets
(1) Remove two L-brackets and eight M4 x 8FMO countersunk screws from packing materials.
(2) Position an L-bracket against one side of the chassis and secure the bracket to the chassis with four screws.
Repeat this step with for the other bracket on the opposite side of the chassis.

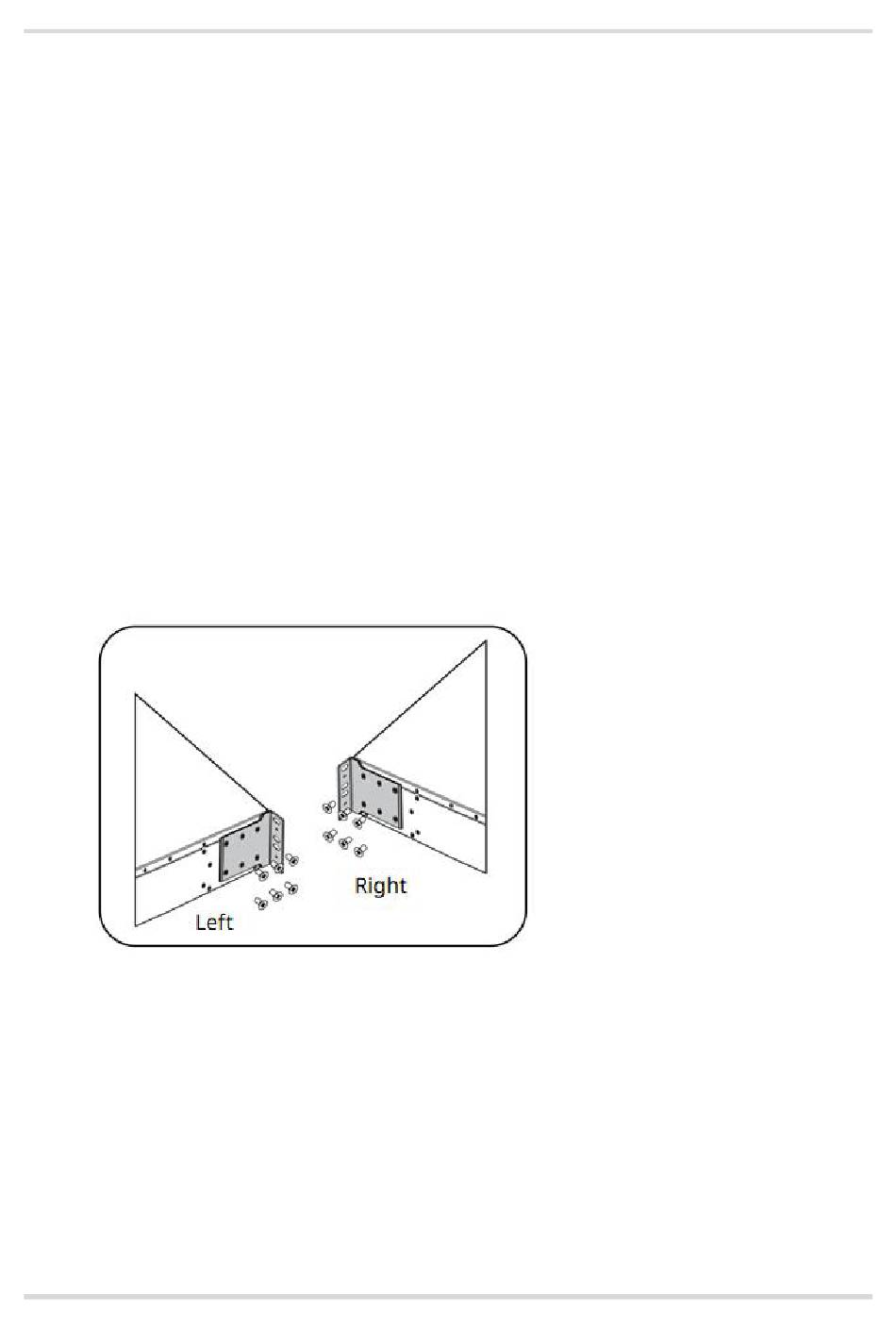

Figure 3-2
Installing the Brackets
3.3.3
Mounting the Chassis on the Rack
The chassis can be installed on a standard 19-inch EIA rack. Mount the chassis on the rack with its front panel
facing forward. You are advised to use a tray or guide rails to assist in installing the chassis on the rack.
Figure 3-3
Mounting the Chassis on the Rack
(1) Install the rack-mount guides and mounting brackets on the chassis.
38
Installing the Switch
