Hardware Installation and Reference Guide

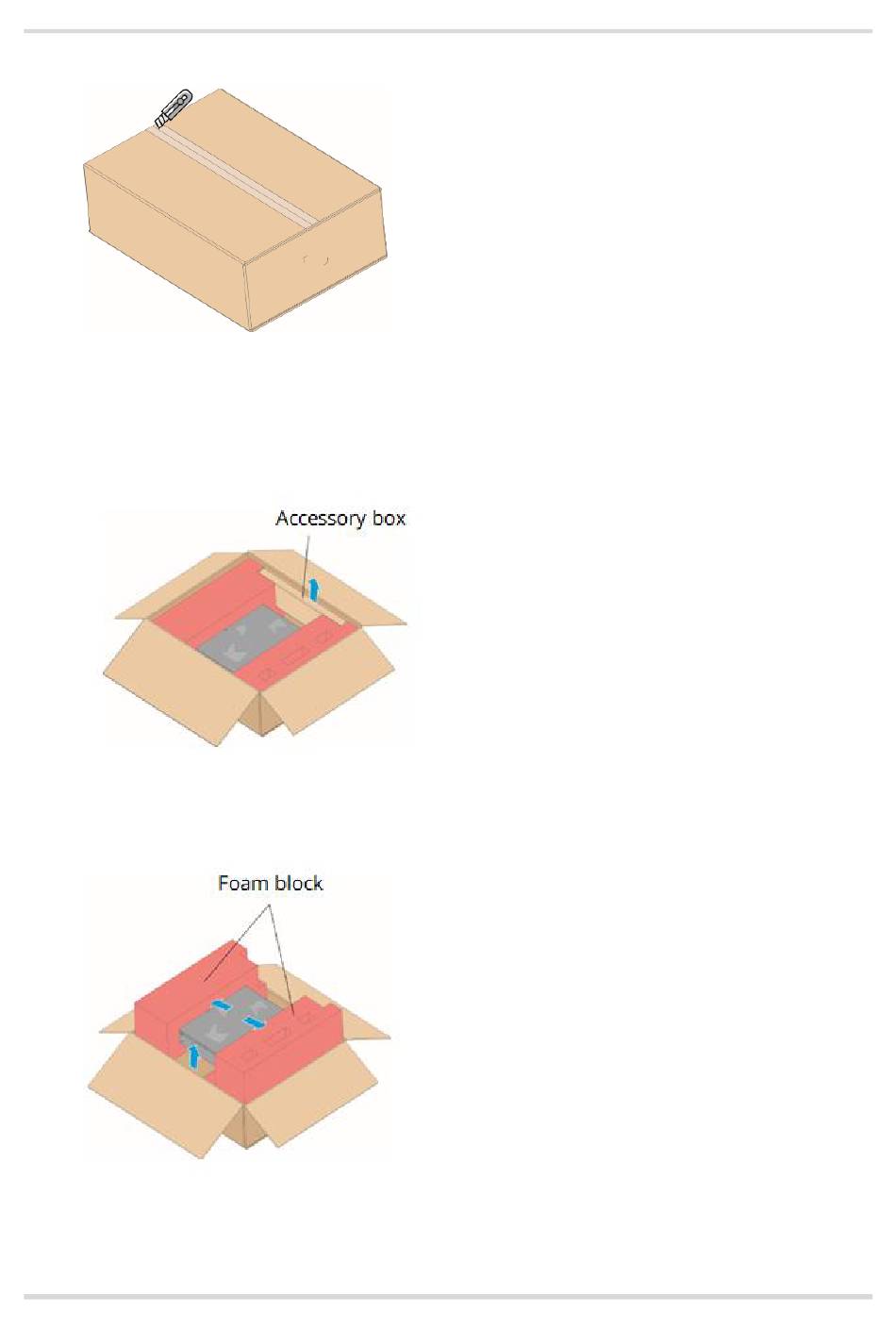

Figure 2-4
(3)
Take out the accessory box, verify that the main accessories are not missing, and then keep the accessory
box handy.
Figure 2-5
Figure 2-6
(4)
Place the switch with the panel foam facing upwards.
(5)
Remove the panel foam and set it aside.
34
Preparing for Installation
