- Page 1 RG-S6510 (V2.0) Series Switches Hardware Installation and Reference Guide...
- Page 2 This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.
- Page 3 Appendix B "10G, 25G, 40G and 100G Modules" Appendix C “Lightening Protection” Appendix D “Cabling Recommendations in Installation” Appendix E “Site Selection” Obtaining Technical Assistance Ruijie Networks Website: https://www.ruijienetworks.com/ Technical Support Website: https://ruijienetworks.com/support Case Portal: https://caseportal.ruijienetworks.com ...
- Page 4 Describes network protocols and related mechanisms that supported by the Configuration Guide product, with configuration examples. Describes the related configuration commands, including command modes, Command Reference parameter descriptions, usage guides, and related examples. Symbol Conventions Means reader take note. Notes contain helpful suggestions or references. Means reader be careful.
-
Page 5: Product Overview
Frequency: 50 Hz to 60 Hz Rated current: 3.5A to 7.2A Power Less than 300 W Consumption Refer to Appendix B Optical Module The supported modules update at any time, contact Ruijie Networks for details. SFP28 Port Supported - 3 -... - Page 6 Hardware Installation and Reference Guide Product Overview QSFP28 Port Supported FC Port Unsupported 10GBASE-T Port Unsupported Temperature Support temperature warning and over-temperature protection. Warning EMC Standards GB9254-2008 CLASS A GB4943-2011 Safety Standards Working 0° C to 45° C (32° F to 113° F) Temperature Storage -40°...

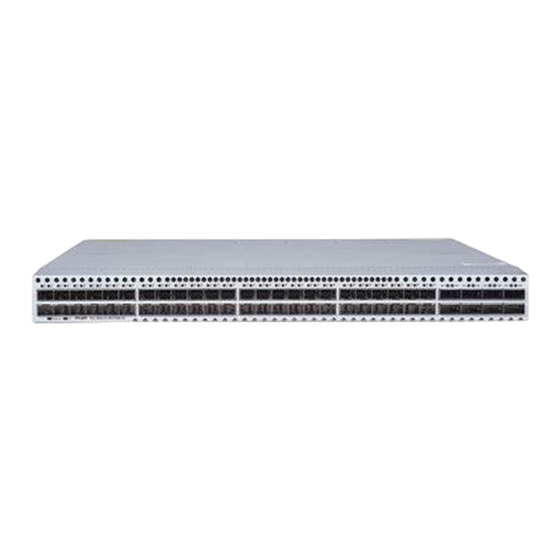

- Page 7 Hardware Installation and Reference Guide Product Overview Figure 1-2 Front Panel of the S6510-48VS8CQ Notes: Switch status indicator SFP28 port status indicator Switch locator indicator QSFP28 port SFP28 port QSFP28 port status indicator The S6510-48VS8CQ supports 100G QSFP28 module and 25G SFP28 module. Back Panel Figure 1-3 Back Panel of the S6510-48VS8CQ Notes:...
- Page 8 Hardware Installation and Reference Guide Product Overview External Ports The RG-S6510-48VS8CQ provides the following ports: Universal serial bus (USB) port: This port can connect with USB memory to save logs, host versions, warnings and other diagnostic messages. Therefore, it is more convenient to upgrade the software version of the switch on line and save the log information.
- Page 9 Hardware Installation and Reference Guide Product Overview The temperature gets to the warning threshold. Only 3 fans are in the position. Solid yellow One of the dual powers is not connected with the AC power cord. Switch locator indicator Device location is disabled. (Front panel/Back Solid blue Device location is enabled.
- Page 10 Hardware Installation and Reference Guide Product Overview Figure 1-6 Ventilation and Heat Dissipation of the RG-S6510-48VS8CQ Leave sufficient space in the front and at the back of the chassis (at least 20 cm) for ventilation. It requires at least three fan modules to work normally. Filler panels need to be installed in the unoccupied fan module slots to ensure ventilation and heat dissipation and avoid dusts.
-
Page 11: Preparation Before Installation
Hardware Installation and Reference Guide Preparation before Installation 2 Preparation before Installation 2.1 Safety Precautions To avoid body injury and device damage, please carefully read the safety precautions before you install the RG- S6510 (V2.0). The following safety precautions do not cover all possible dangers. 2.1.1 Installation Safety ... -
Page 12: Laser Safety
Hardware Installation and Reference Guide Preparation before Installation Any nonstandard and inaccurate electrical operation can cause accidents such as fires or electrical attacks, thus causing severe, or even fatal damages to human bodies and the devices. Direct or indirect touch through a wet object on high-voltage and mains supply can bring a fatal danger. 2.1.4 Electrostatic Discharge Damage Precautions The RG-S6510 (V2.0) designing gives a great consideration to prevent electrostatic discharge damage and adopts multiple measures. -
Page 13: Ventilation Requirements
Hardware Installation and Reference Guide Preparation before Installation Install the switch in an open cabinet as much as possible. If you install the switch inside a closed cabinet, be sure that the cabinet has a good ventilation and heat dissipation system. ... -
Page 14: System Grounding Requirements
Hardware Installation and Reference Guide Preparation before Installation Apart from dust, the salt, acid and sulfide in the air in the equipment room must also meet strict requirements; as such poisonous substances may accelerate the corrosion of the metal and the aging of some parts. The equipment room should be protected from the intrusion of harmful gases (for example, SO S, NO and Cl... -
Page 15: Emi Consideration
Hardware Installation and Reference Guide Preparation before Installation 2.2.6 EMI Consideration Various interference sources, from either outside or inside the device or application system, affect the system in the conductive ways such as capacitive coupling, inductive coupling, and electromagnetic radiation. There are two types of electromagnetic interferences: radiated interference and conducted interference, depending on the type of the propagation path. -
Page 16: Unpacking And Checking
Hardware Installation and Reference Guide Preparation before Installation cutters Fiber optic cleaning Tools Air-laid paper, fiber end microscope Meter Multimeter, errormeter, optic-power meter RG-S6510 (V2.0) series is not shipped with a tool kit. You need to prepare a tool kit by yourself. 2.5 Unpacking and Checking Goods Checklist Chassis, Yellow/green grounding cables;... -
Page 17: Product Installation
Hardware Installation and Reference Guide Product Installation 3 Product Installation RG-S6510 (V2.0) series Ethernet switch must be used and fixed in the room. Make sure you have carefully read part 2, and be sure that the requirements set forth in part 2 have been met. 3.1 Installation Procedure Preparation Install the cabinet... -
Page 18: Cabinet Installation
Hardware Installation and Reference Guide Product Installation The related network cables have already been deployed at the installation location. 3.3 Cabinet Installation Precautions When you install the cabinet, pay attention to the following requirements: All expansion bolts for fastening the cabinet base to the ground should be installed and tightened in sequence from bottom up (large plain washer, spring washer, and nut), and the installation holes on the base and the expansion bolts should be well aligned. - Page 19 Hardware Installation and Reference Guide Product Installation you should reserve space of at least 10mm between the front panel of the equipment and that of the cabinet after installation. Before mounting into a cabinet, you need to make sure the following conditions are met: ...
- Page 20 Hardware Installation and Reference Guide Product Installation The mounting brackets are located at the four of the six screw holes at both sides on the back panel of the host. Distinguish the left and the right rear brackets according to the marked directions. The rear brackets provided are only applicable for cabinets with depth of 800mm - 1200mm.
-
Page 21: Installing And Removing A Fan Module
Hardware Installation and Reference Guide Product Installation 3.5 Installing and Removing a Fan Module Wear anti-static gloves before the following operations. Installing an Fan Module Take out a new fan module from the fan module box. Hold the handle at the end of the fan module. Insert the fan module to the chassis slowly along the guide rail until it is fully seated, and make sure that it is in good contact with the slot. - Page 22 Hardware Installation and Reference Guide Product Installation Install the fan filler panel and put the removed fan module into its package Figure 3-5 Removing a Fan Module Withdraw the fan module uprightly and slowly. Install a filler panel on the location where a fan module is removed to ensure normal ventilation and dissipation and avoid dust in the chassis.
- Page 23 Hardware Installation and Reference Guide Product Installation If it is difficult or even impossible to insert the module, pull out the module, make sure the extension module and guide rail are well aligned, and then insert the module again. Power modules and fan modules with different air direction cannot be used together. Remove the power module uprightly and slowly.
- Page 24 Hardware Installation and Reference Guide Product Installation Attach the power cord container to the installation hole of the power module. Plug the power cord into the connector. Pass the power cord through the strap and adjust the ring by pressing buckle B until the power cord is fastened.
-
Page 25: Connecting The External Interface Cables
Hardware Installation and Reference Guide Product Installation Install a filler panel in the location where the power module is removed to ensure the normal ventilation and dissipation and avoid the dust in the chassis. 3.7 Grounding A PGND is installed on the back of RG-S6510 (V2.0). First connect the PGND to the grounding terminal of the cabinet and then connect the grounding terminal to the grounding bar of the equipment room. -
Page 26: Binding The Cables
Hardware Installation and Reference Guide Product Installation Insert the single-mode or multi-mode fiber into the appropriate interface according to the identification on the panel of the line card. Distinguish the Rx/Tx end of the fiber. Insert the twisted pair with the RJ45 port into the appropriate interface according to the identification on the panel of the line card. - Page 27 Hardware Installation and Reference Guide Product Installation Verify that the power cables are in good contact and comply with the safety requirements. To avoid body injury and components damage, cut off power supply before checking the installation. - 25 -...
-
Page 28: System Debugging
Hardware Installation and Reference Guide System Debugging 4 System Debugging 4.1 Establishing the Configuration Environment Establishing the Configuration Environment Connect the PC to the console port of the switch through the console cable, as shown in Figure 4-1. Figure 4-1 Schematic diagram of the configuration environment Connecting the Console Cable Connect one end of the DB-9 jack of the console cable to the serial port of the PC. - Page 29 Hardware Installation and Reference Guide System Debugging Figure 4-2 Enter the name of the new connection and click OK. A window appears as shown in Figure 4-3. In the column of Connect Using field, select the serial port you want to use. Figure 4-3 After the serial port is selected, please click OK.
-
Page 30: Power-On Startup
Hardware Installation and Reference Guide System Debugging After the serial port parameters are set, click OK to enter hyper terminal window. 4.2 Power-on Startup Checking before Power-on Check if the switch is fully grounded. Check if the fan module and the power module are correctly installed. ... -
Page 31: Monitoring And Maintenance
Hardware Installation and Reference Guide Monitoring and Maintenance 5 Monitoring and Maintenance 5.1 Monitoring Indicator When the RG-S6510 (V2.0) is running, users can monitor the status of host and each module by inspecting corresponding indicators. When the Status indicator is red, it means the system has a fault, in which case you can determine and eliminate the fault by viewing with the management software. - Page 32 The built-in lithium batteries can support the real time clock of the RG-S6510 (V2.0) series switches without external power supply. Please contact the technical support representatives of Ruijie Networks for replacing lithium batteries. Technical staff of Ruijie Networks will replace the battery of the same model.
-
Page 33: Troubleshooting
Check the indicators on the device and the modules Check the connection of the serial ports and its parameters Check the connection of the fibers or cables of various ports Contact Technical Support of Ruijie Networks for hardware problems - 31 -... -
Page 34: Common Troubleshooting Procedures
RG-S6510 (V2.0) Software Configuration Guide. If not, modify the serial port configuration parameters. If there is still no serial port printed information, please contact Ruijie Customer Service Department for technical support. - Page 35 Check whether the module is inserted correctly. If the newly-inserted module still cannot be powered on even though the checking is ok, please contact Ruijie Customer Service Department for technical support. Fault 7: The link cannot be set up between fiber interfaces [Fault Description] The system runs normally.
-
Page 36: Appendix A Connectors And Connection Media
Hardware Installation and Reference Guide Appendix A Connectors and Connection Media Appendix A Connectors and Connection Media 10GBASE-T/1000BASE-T/100BASE-TX Port 10GBASE-T/1000BASE-T/100BASE-TX is a port that supports self-adaptation of three rates, and automatic MDI/MDIX Crossover at these three rates. 10GBASE-T complies with IEEE 802.3an standard, and the supported cables and cabling distances are listed in the following table. - Page 37 Hardware Installation and Reference Guide Appendix A Connectors and Connection Media Figure A-1 Four twisted pairs of the 1000BASE-T In addition to the above cables, the 100BASE-TX can use up to 100m of 100-ohm CAT5. Figure A-2 shows the definition of pin signal concerning the 100BASE-TX: Figure A-2 Definition of pin signal concerning the 100BASE-TX Socket Plug...
-
Page 38: Appendix B 10G, 25G, 40G And 100G Module
Hardware Installation and Reference Guide Appendix B 10G, 25G, 40G and 100G Module Appendix B 10G, 25G, 40G and 100G Module We provide 10G SFP+ modules, 40G QSFP+ modules, 100G QSFP28 modules. According to the interface type of the switch module. You can select modules to suit your specific needs. The following models and technical specifications of 10G SFP+ modules, 40G QSFP+ modules, 100G QSFP28 modules are listed for your reference. - Page 39 Hardware Installation and Reference Guide Appendix B 10G, 25G, 40G and 100G Module 100m SFP28-SR (840, 860) connecto 50/125 4700 -8.4 -10.3 (OM4) SFP28-LR (1295, 1325) connecto 9/125 10km -4.5 -11.4 The existing 25G SFP28 copper modules: Copper Module Connector Conductor Wire Support Model...
- Page 40 Hardware Installation and Reference Guide Appendix B 10G, 25G, 40G and 100G Module 4lanes x 40G-QSFP-STACK3M Passive QSFP+ 10.3125 (Perlane) Models and Technical Specifications of the 100G QSFP28 Module The existing 100G QSFP28 optical modules: Intensity Intensity Core Modular Wavelength Optical Support Model...
-
Page 41: Appendix C Lightning Protection
Hardware Installation and Reference Guide Appendix C Lightning Protection Appendix C Lightning Protection Installing AC Power Arrester (lightning protection cable row) The external lightning protection cable row should be used on the AC power port to prevent the switch from being struck by lightning when the AC power cable is introduced from the outdoor and directly connected to the power port of the switch. - Page 42 Hardware Installation and Reference Guide Appendix C Lightning Protection Installing the Ethernet Port Arrester During the switch usage, the Ethernet port arrester should be connected to the switch to prevent the switch damage by lightning before the outdoor network cable connects to the switch . Tools: Cross or straight screwdriver, Multimeter, Diagonal pliers Installation Steps: Tear one side of the protection paper for the double-sided adhesive tape and paste the tape to the framework of the...
- Page 43 Hardware Installation and Reference Guide Appendix C Lightning Protection You should pay attention to the following conditions during the actual installation to avoid influencing the performance of the Ethernet port arrester: Reversed direction of the arrester installation. You shall connect the external network cable to the “IN” end and connect the switch Ethernet port to the “OUT”...
-
Page 44: Appendix D Cabling Recommendations In Installation
Hardware Installation and Reference Guide Appendix D Cabling Recommendations in Installation Appendix D Cabling Recommendations in Installation When the switches are installed in standard 19-inch cabinets, the cables are tied in the binding rack on the cabinet by the cable management bracket, and top cabling or bottom cabling is adopted according to the actual situation in the equipment room. - Page 45 Hardware Installation and Reference Guide Appendix D Cabling Recommendations in Installation Cables of different types (such as power cords, signal cables, and grounding cables) should be separated in cabling and bundling and no mixed bundling is allowed. When they are close, crossover cabling can be adopted. In the case of parallel cabling, power cords and signal cables should maintain a distance not less than 30 mm.
- Page 46 Hardware Installation and Reference Guide Appendix D Cabling Recommendations in Installation Cables not to be assembled or remaining parts of cables should be folded and placed in a proper position of the cabinet or cabling slot. The proper position indicates a position that will not affect device running or cause device damage or cable damage during commissioning.
- Page 47 Hardware Installation and Reference Guide Appendix D Cabling Recommendations in Installation Figure D-4 Cable fastening The hard power cable should be fastened at the terminal connection area to prevent stress on terminal connection and cable. Do not use self-tapping screws to fasten terminals. ...
-
Page 48: Appendix E Site Selection
Hardware Installation and Reference Guide Appendix E Site Selection Appendix E Site Selection The machine room should be at least 5km away from the heavy pollution source such as the smelter, coal mine and thermal power plant, 3.7km away from the medium pollution source such as the chemical industry, rubber industry and electroplating industry, and 2km away from the light pollution source such as the food manufacturer and leather plant.
