Commissioning

4.1

Setting Up the Configuration Environment

Connect the serial port of a PC to the console port of the device with a cable, as shown in

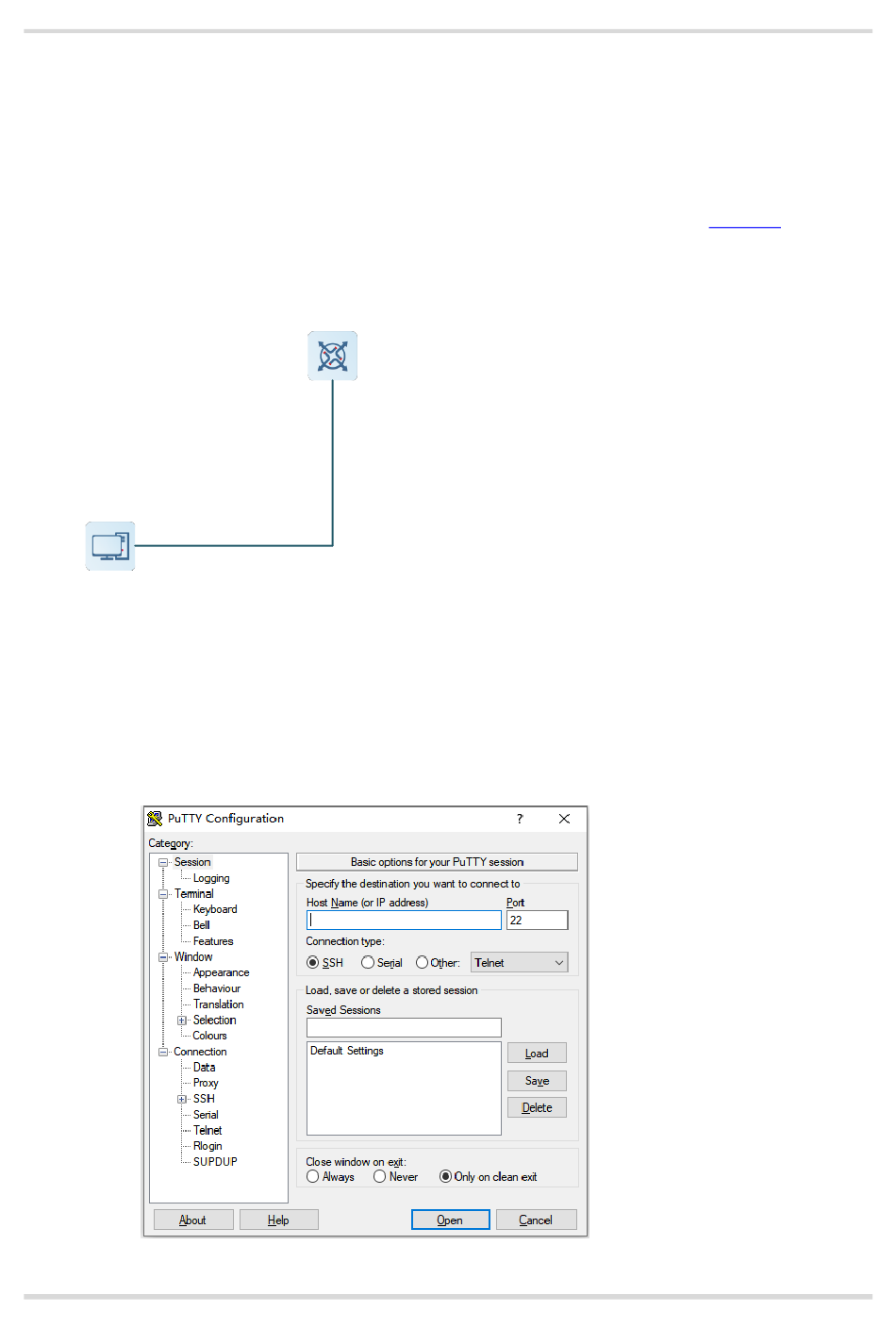

Figure 4-1 Configuration Environment
PC
Serial port
The first login to the device must be performed through the console port.
(1) Connect the serial port of a PC to the console port of the device with a standard RS-232 cable.
(2) Set up a local configuration environment through the console port on the front panel.
(3) Configure communication parameters of the terminal. Run a terminal emulation software such as PuTTY:
a Launch PuTTY to enter its main interface.
Device
Console port
Console cable
51
Commissioning
Figure 4-1.
