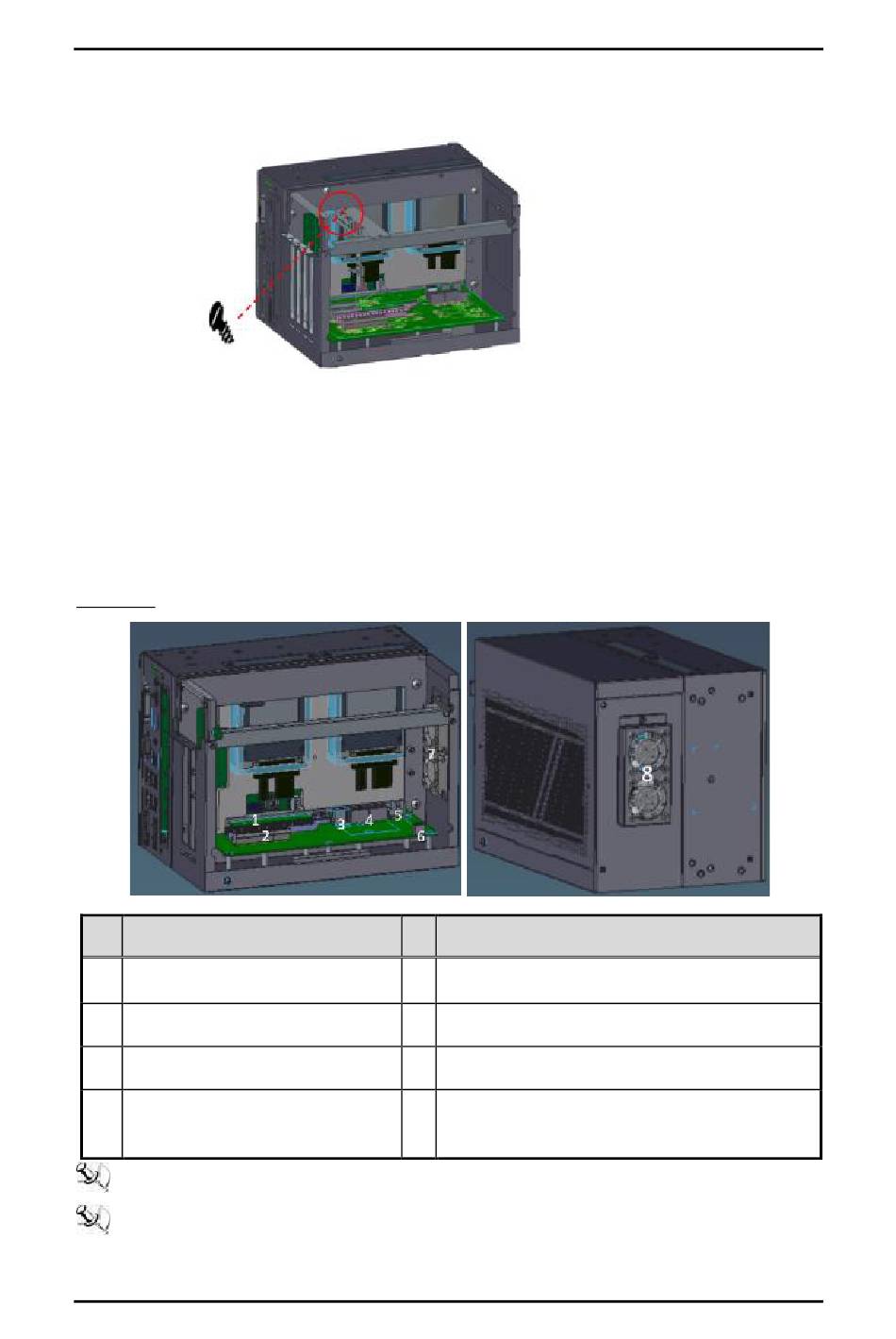

Step 9
Fasten the holder bracket in the chassis, adjust the screw position of the extension bracket to
fix the add-on card, and then screw it.
Step 10
Close the cover back to the chassis and tighten the screw. The installation is complete.
2.7.2 The limitation of an add-on card
The following figures show the limitation of an add-in card in different configuration.
IPC962A
No. Description
1
Slot 1: PCIe x 16
2
Slot 2: PCIe x8 or PCI
3
USB 2.0 type A
4
2 8-pin power connector of EIO121 or
EIO122 (riser card)
Note: Please note that below dimension is the maximum length for add-on card with I/O bracket.
Note: Considering heat dissipation potential, a space of 20mm must be left between add-on card
and system.
54
No. Description
5
2 fan connector
6
4-pin power connector
7
Internal fan module
8
External fan module
Hardware Installation
