IPC960A/IPC962A/IPC964A Series User's Manual

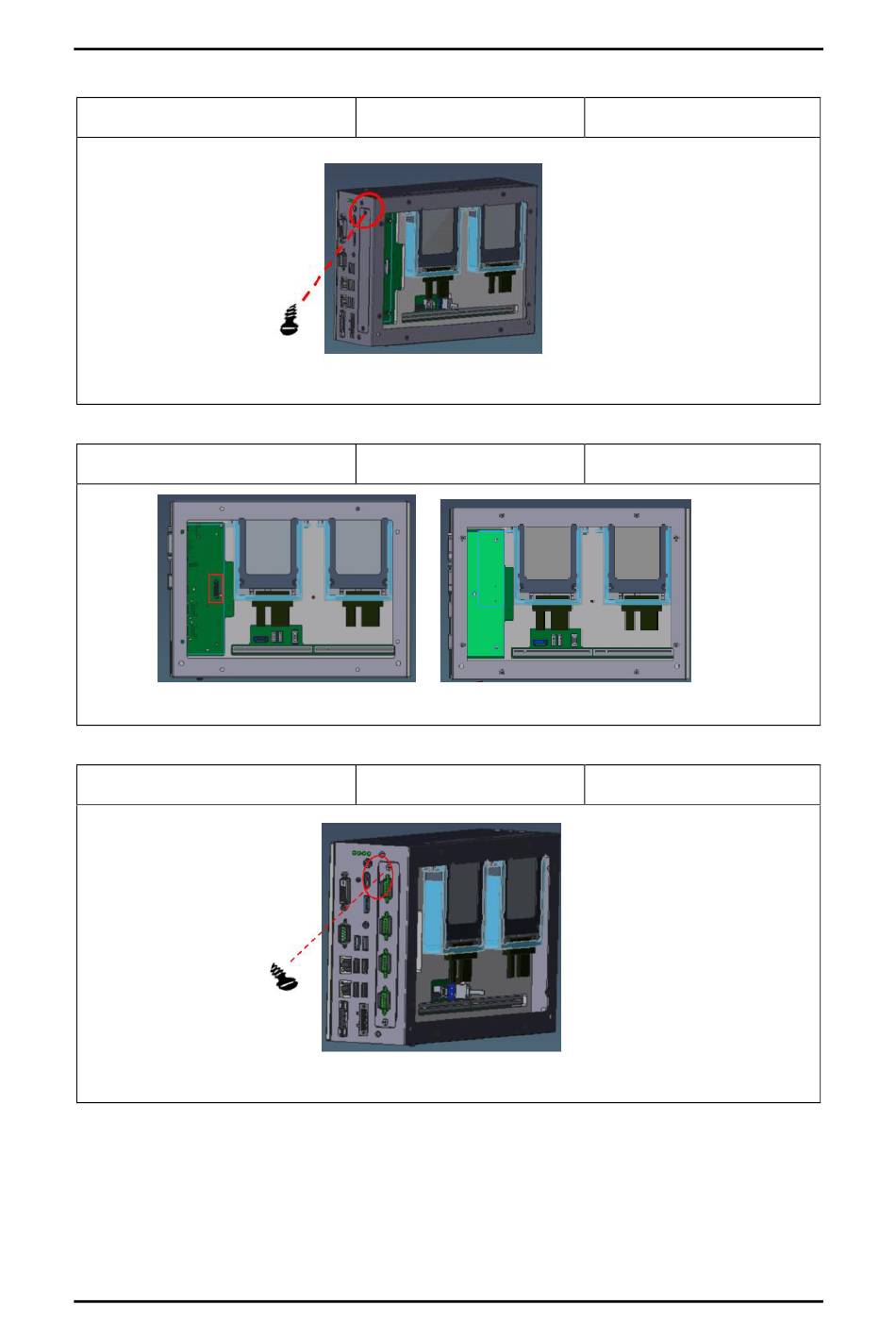

Step 5
Remove the blank I/O bracket as shown below.
IPC960A
Loosen two screws and move the blank I/O bracket for the chassis.
Step 6
Plug the extension I/O module into the slot as shown below.
IPC960A
Align the I/O module with the slot, press the module into the slot until it is firmly seated ..
Step 7
Screw the extension I/O bracket into system as shown below.
IPC960A
Tighten the two screws to fix the I/O bracket to the chassis.
48
IPC962A
IPC962A
→
IPC962A
IPC964A
IPC964A
IPC964A
Hardware Installation
