IPC960A/IPC962A/IPC964A Series User's Manual

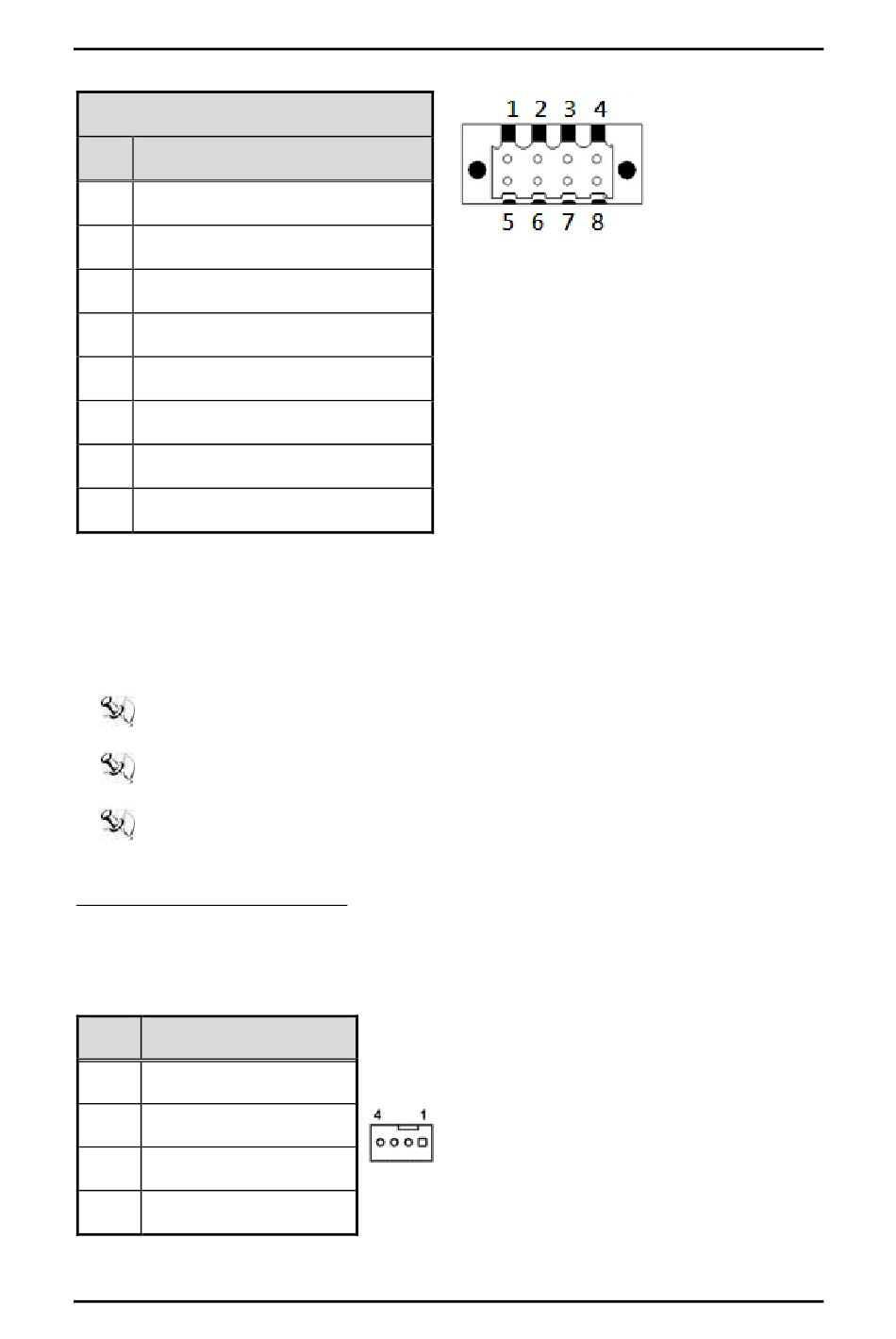

CN4 (CAN1 & CAN2)
Pins
1
VCC
2
CAN-H
3
CAN-L
4
GND, Ground
5
VCC
6
CAN-H
7
CAN-L
8
GND, Ground
1.8.21 Riser card – EIO121, EIO122, EIO141, EIO142
IPC962A and IPC964A has a riser module to support PCIe and PCI slots.
Note: Please refer to chapter 1.2.3 for the riser specifications.
Note: Please refer to chapter 1.2.3 for the maximum power rating limitation of riser.
Note: 4-pin power connector is reserved for Axiomtek device only.
Fan Connectors (FAN1~FAN2)
This motherboard has three fan connectors. Find fan speed option(s) at BIOS Setup Utility: Advanced
HW Monitor PC Health Status.
The FAN1~2 (4x1-Pin P=2.54mm) is for the expansion Slot fan connector.
Pins
Signals
1
GND
2
+12V
3
FAN Speed Detection
4
FAN Speed Control
40
CAN
