IPC960A/IPC962A/IPC964A Series User's Manual
2.10 Installing the M.2 key E Wireless Module
The IPC960A, IPC962A and IPC964A come equipped with an optional M.2 Key E 2232 slot via
MIO530 daughter board for users to install a wireless LAN card. Please refer to the following
instructions and illustrations for the installation of the wireless LAN.
Step 1
Please take the wireless LAN card and external antenna(s) from the accessory box.
Step 2
Turn off the system.
Step 3
Disconnect the power connector.
Step 4

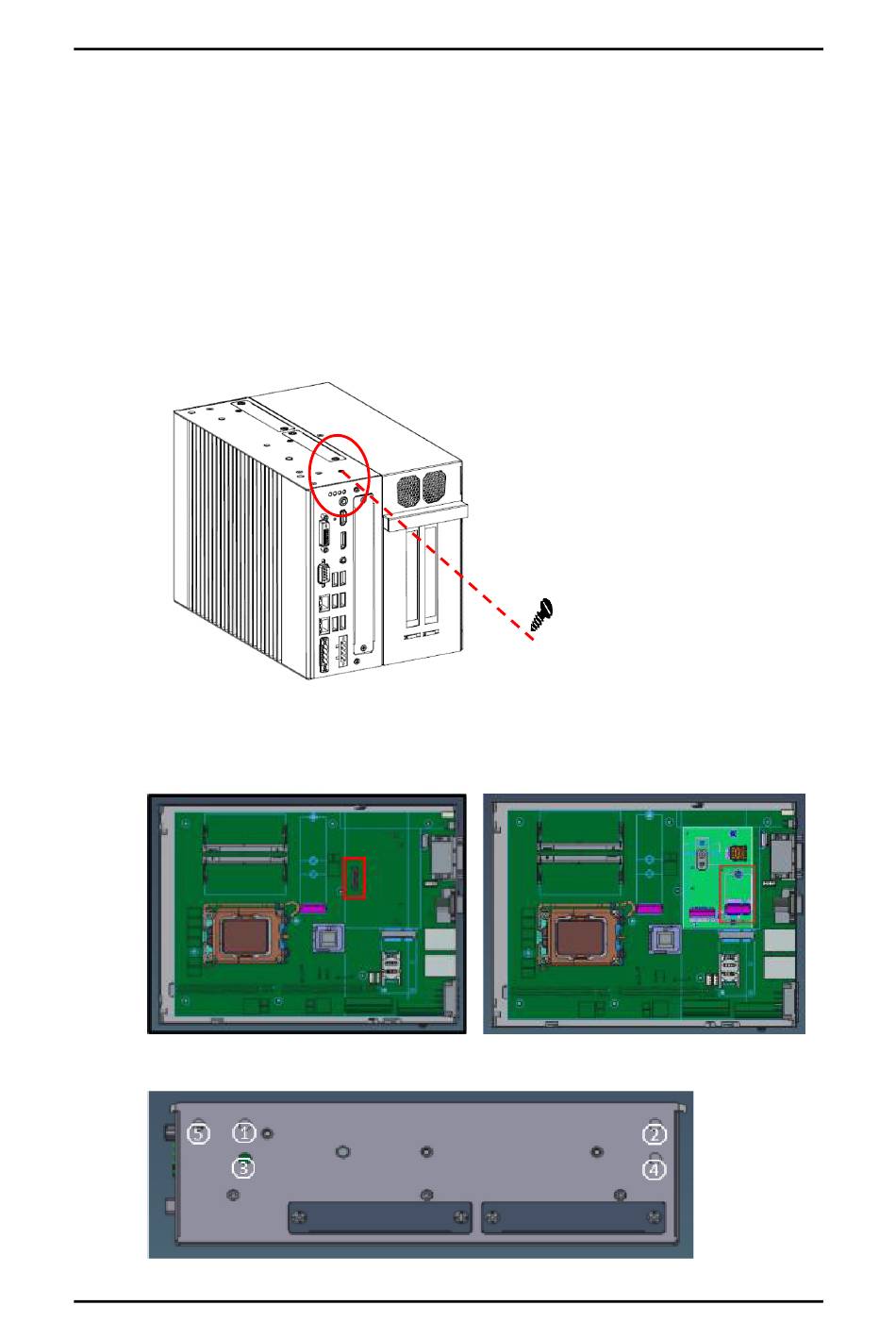

Loosen six screws to remove the heatsink cover from the chassis.
Step 5
Insert the MIO530 board to socket, then insert wireless LAN module into the slot and push it
down firmly, install the card securely to the mainboard, and then pulg the internal 5G internal
wireless cables into module.
Step 6
Remove the antenna plug(s), and then screw the antenna(s) on the system.
64
→
Hardware Installation
