IPC960A/IPC962A/IPC964A Series User's Manual

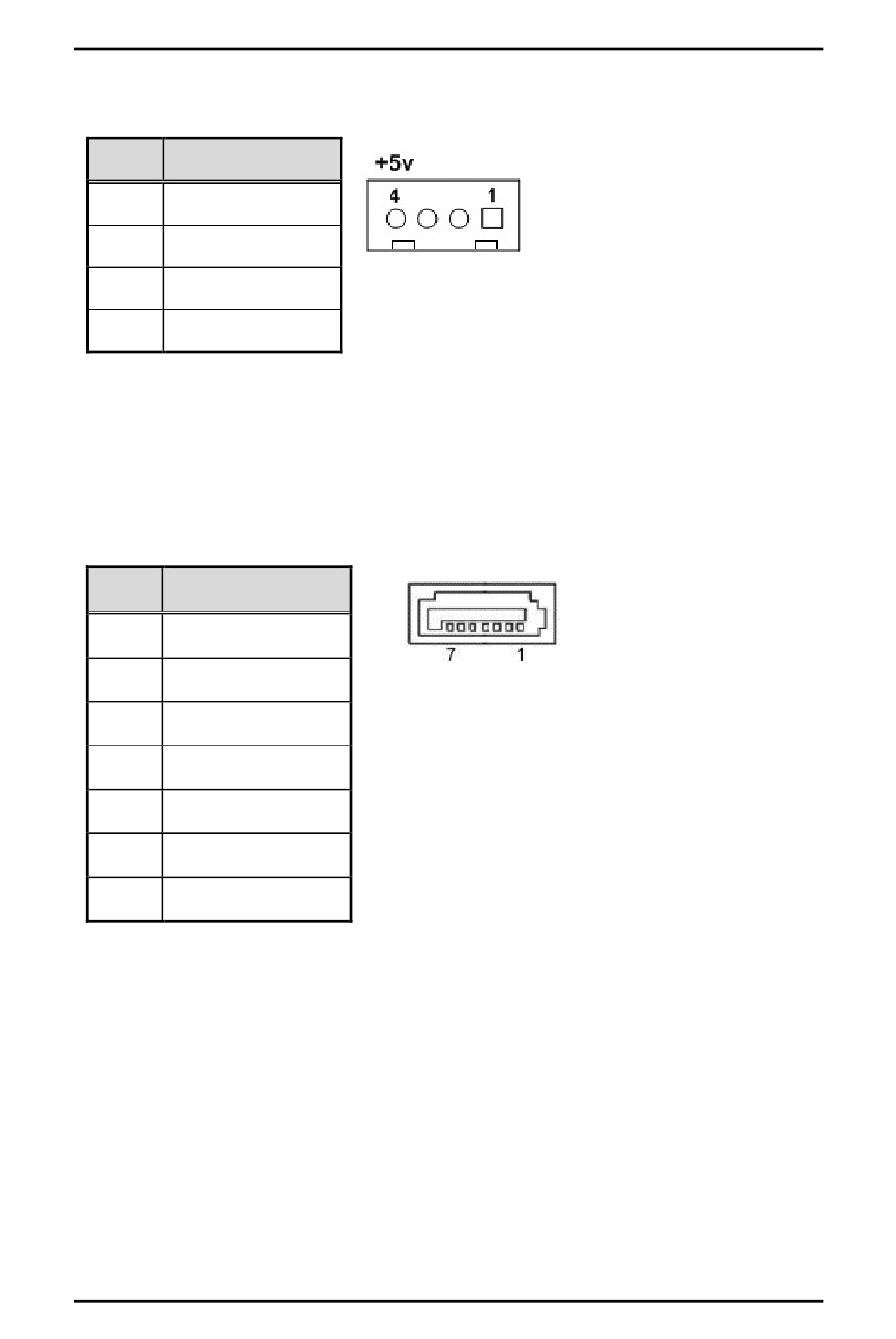

1.8.11 SATA Power Connector (SATAPWR1~2)
The SATA power connector is used for interfacing SATA 2.5" HDD/SSD power supply.
Pins
Signals
1
NC
2
GND
3
GND
4
+5V
1.8.12 SATA Connector (SATA1~SATA2)
These Serial Advanced Technology Attachment (Serial ATA or SATA) connectors are used as high-speed
SATA interfaces. They are computer bus interfaces for connecting to devices such as hard disk drives.
This board has two SATA 3.0 ports with 6Gb/s performance.
Pins
Signals
1
GND
2
SATA_TX+
3
SATA_TX-
4
GND
5
SATA_RX-
6
SATA_RX+
7
GND
