IPC960A/IPC962A/IPC964A Series User's Manual
Isolated Digital Input

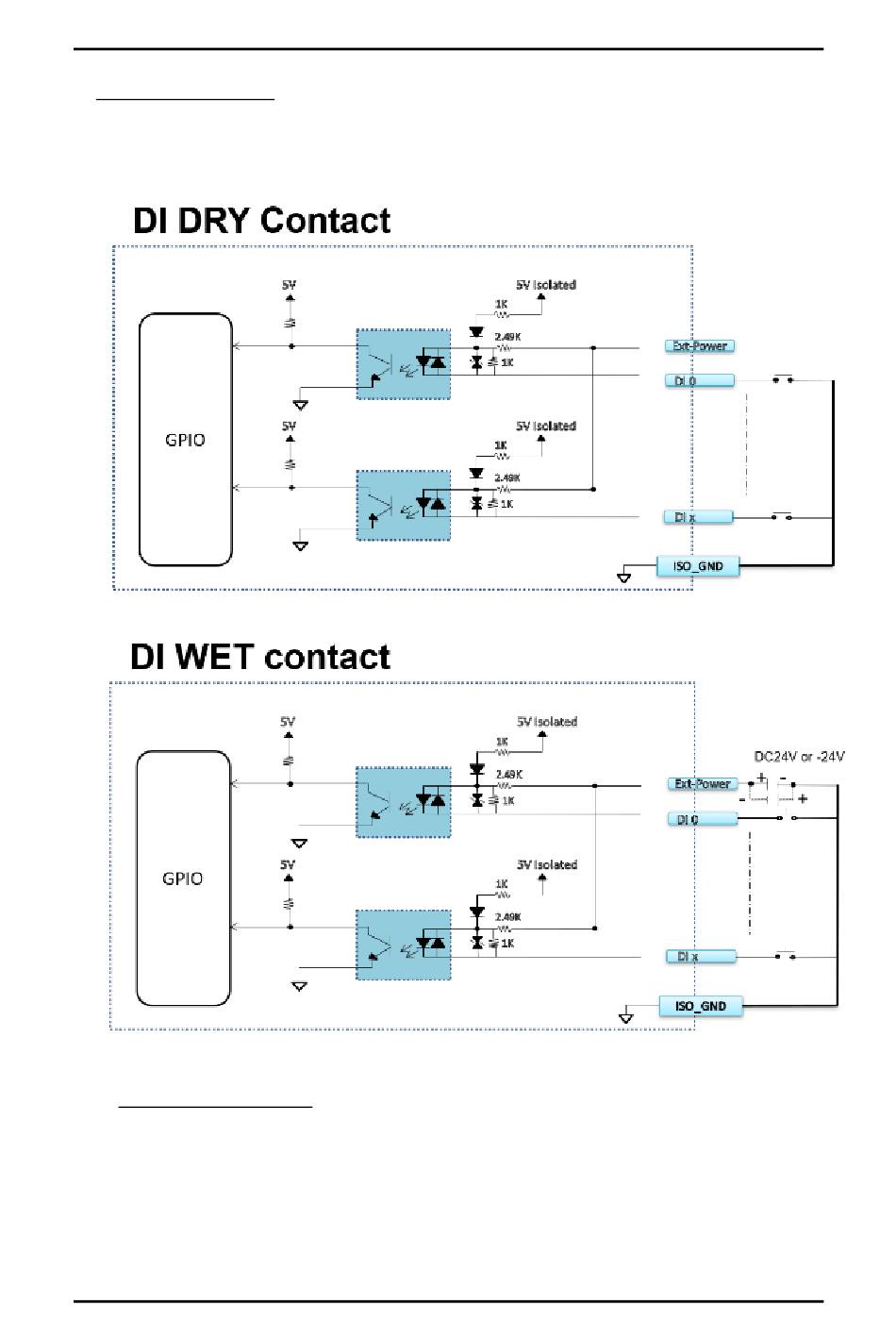

The diagram shows how to connect external input sources and systems.
Each isolated digital input channel accepts 0~30 VDC.
Isolated Digital Output
The figure shows how to connect between an output channel and the system.
If an external voltage Max +30VDC is applied to an isolated output channel, the current will flow
from the external voltage source to the system.
Please note that the current through each DO channel should not exceed 200 mA.
