IPC960A/IPC962A/IPC964A Series User's Manual

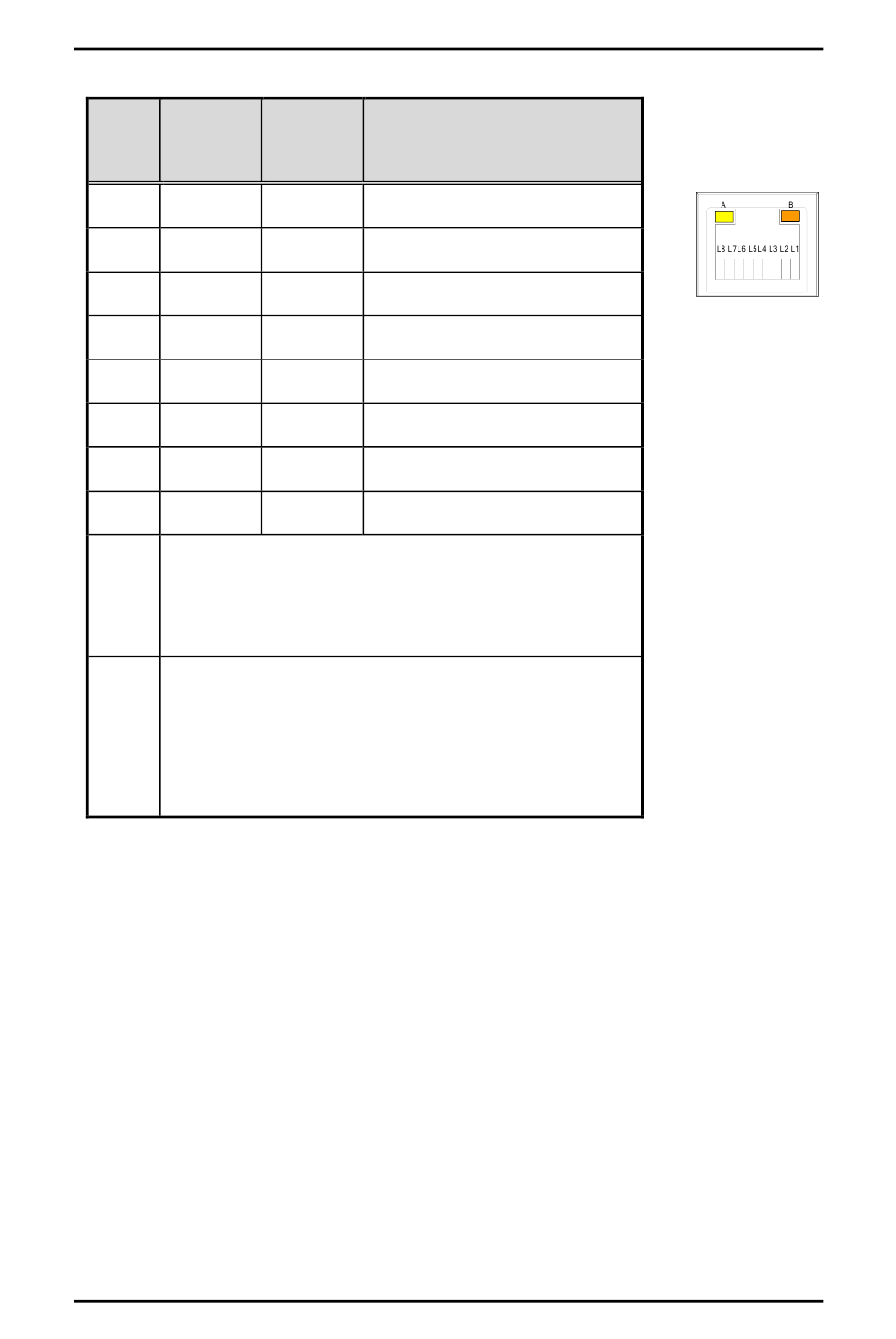

1000
Pins
Base-T
L1 BI_DA+
L2 BI_DA-
L3 BI_DB+
L4 BI_DC+
L5 BI_DC-
L6 BI_DB-
L7 BI_DD+
L8 BI_DD-
Active Link LED (Yellow)
A Off: No link
Blinking: Data activity detected
Speed LED
1000: Orange
B
100: Green
10: OFF
38
100/10
Descriptions
Base-T
TX+ Bidirectional or Transmit Data+
TX- Bidirectional or Transmit Data-
RX+ Bidirectional or Receive Data+
N.C. Bidirectional or Not Connected
N.C. Bidirectional or Not Connected
RX- Bidirectional or Receive Data-
N.C. Bidirectional or Not Connected
N.C. Bidirectional or Not Connected
