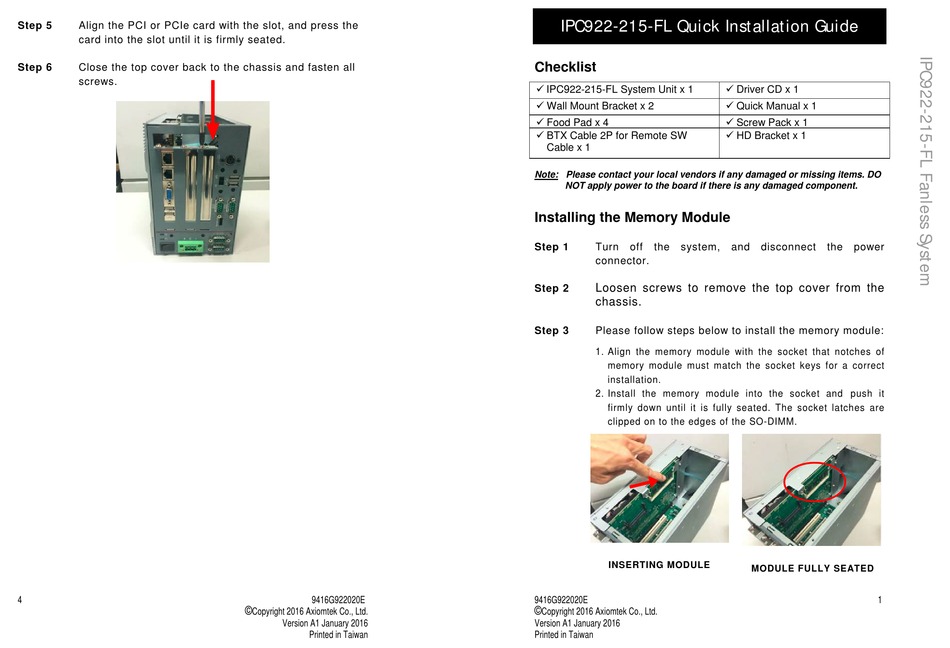

AXIOMTEK IPC922-215-FL Quick Installation Manual

Step 5 Align the PCI or PCIe card with the slot, and press the
card into the slot until it is firmly seated.
Step 6 Close the top cover back to the chassis and fasten all
screws.
4 9416G922020E
©
Copyright 2016 Axiomtek Co., Ltd.
Version A1 January 2016
Printed in Taiwan
IPC922-215-FL Quick Installation Guide
Checklist
 IPC922-215-FL System Unit x 1
 Wall Mount Bracket x 2
 Food Pad x 4
 BTX Cable 2P for Remote SW
Cable x 1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
Installing the Memory Module
Step 1 Turn off the system,
connector.
Loosen screws to remove the top cover from the
Step 2
chassis.
Step 3 Please follow steps below to install the memory module:
1. Align the memory module with the socket that notches of
memory module must match the socket keys for a correct
installation.
2. Install the memory module into the socket and push it
firmly down until it is fully seated. The socket latches are
clipped on to the edges of the SO-DIMM.
INSERTING MODULE
9416G922020E
©
Copyright 2016 Axiomtek Co., Ltd.
Version A1 January 2016
Printed in Taiwan
 Driver CD x 1
 Quick Manual x 1
 Screw Pack x 1
 HD Bracket x 1
and disconnect the power
MODULE FULLY SEATED
1
