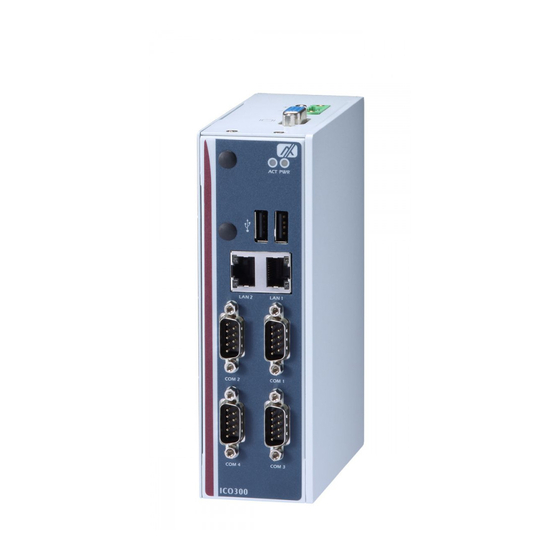

Robust din-rail fanless embedded system
Hide thumbs Also See for ICO300-83B:
Table of Contents

Advertisement

Quick Links

Download this manual
ICO300-83B
Robust Din-rail Fanless Embedded
System
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICO300-83B and is the answer not in the manual?

Questions and answers

Related Manuals for AXIOMTEK ICO300-83B

Summary of Contents for AXIOMTEK ICO300-83B

  • Page 1 ICO300-83B Robust Din-rail Fanless Embedded System User’s Manual...
  • Page 2 Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice.

  • Page 3: Safety Precautions

    Safety Precautions Before getting started, please read the following important safety precautions. The ICO300 does not come equipped with an operating system. An operating system must be loaded first before installi ng any software into the computer. Be sure to ground yourself to prevent static charge when installing the internal components.

  • Page 4: Classification

    Classification Degree of production against electric shock: not classified Degree of protection against the ingress of water: IP30 Equipment not suitable for use in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide. Mode of operation: Continuous Type of protection against electric shock: Class I equipment General Cleaning Tips You may need the following precautions before you begin to clean the computer .
  • Page 5 Cleaning Tools Although many companies have created products to help improve the process of cleaning your computer and peripherals users can also use household items to clean their computers and peripherals. Below is a listing of items you may need or want to use while cleaning your computer or computer peripherals.

  • Page 6: Scrap Computer Recycling

    For the computers that are no longer useful or no longer working well, please contact your Axiomtek distributor for recycling and we will make the proper arrangement. Trademarks Acknowledgments Axiomtek is a trademark of Axiomtek Co., Ltd. IBM, PC/AT, PS/2, VGA are trademarks of International Business Machines Corporation. ® ®...

  • Page 7: Table Of Contents

    Table of Contents Safety Precautions ....................iii Classification ......................iv General Cleaning Tips ..................iv Scrap Computer Recycling .................. vi SECTION 1 INTRODUCTION................. 1 General Description ................1 System Specifications ............... 2 1.2.1 CPU ........................2 1.2.2 BIOS ........................2 1.2.3 System Memory ....................
  • Page 8 This page is intentionally left blank viii...

  • Page 9: Section 1 Introduction

    ICO300-83B Series User’s Manual SECTION 1 INTRODUCTION This chapter contains general information and detailed specifications of the ICO300. The Chapter 1 includes the following sections: ◼ General Description ◼ System Specification ◼ Dimensions ◼ I/O Outlets General Description ICO300 Din-rail fanless embedded system is suitable for communications control and for protocol converter applications in critical environments.

  • Page 10: System Specifications

    ICO300-83B Series User’s Manual ⚫ Features ◼ Fanless design ◼ Wide temperature operation of -40℃ - +70℃ ◼ 2 10/100/1000 Base-T Ethernets with Magnetic Isolated Protection ◼ 4 COM Ports support RS-232/422/485 ◼ 2 Wireless (USB and PCIe Interface) ◼...

  • Page 11: Ethernet Ports

    ICO300-83B Series User’s Manual 1.2.5 Ethernet Ports ⚫ LAN Chip: Intel Ethernet Controller I211-AT. ⚫ LAN 1 and LAN 2 The board has dual RJ-45 connectors, support 10/100/1000 Base-T with 1.5KV magnetic isolated protection. 1.2.6 Storages ⚫ 1 x 2.5” SATA drive bay.

  • Page 12: Com

    ICO300-83B Series User’s Manual 1.2.9 ⚫ 4 ports DB9 support RS-232/422/485 which can be selected by BIOS. ⚫ Supports Auto Flow Control in RS485 mode. ⚫ Serial Port Pin Define: (DB9 Male) as below COM1~4 RS-232 RS-422 RS-485 Data- Data+ 1.2.10...

  • Page 13: Restore Bios Optimal Defaults (Clear Cmos)

    ICO300-83B Series User’s Manual 1.2.12 Restore BIOS Optimal Defaults (Clear CMOS) ⚫ Press the tact switch can restore BIOS optimal defaults. 1.2.13 System LED ⚫ There are showed the LED’s indicators and functional descriptions. LED Name Description Color Indicate the storge status and it’s flashing when storge Green access.

  • Page 14: Dimensions

    ICO300-83B Series User’s Manual 1.2.18 Dimensions ⚫ 48mm(1.88”) (W) x110mm(4.33”) (D) x155mm(6.1”) (H) 1.2.19 System I/O Outlets ⚫ Four 9-pin D-Sub male connectors, COM1~COM4. ⚫ One HDMI. ⚫ Two 10/100/1000 Base-T RJ-45 with 1.5KV magnetic isolated protection. ⚫ Four USB 3.0 connectors.

  • Page 15: Dimensions

    ICO300-83B Series User’s Manual Dimensions The following diagrams show you dimensions and outlines of the ICO300-83B. Introduction...

  • Page 16: I/O Outlets

    ICO300-83B Series User’s Manual I/O Outlets The following figures show you I/O outlets on front view and top view of the ICO300- 83B. Introduction...

  • Page 17: Section 2 Hardware Installation

    ICO300-83B Series User’s Manual SECTION 2 HARDWARE INSTALLATION The ICO300-83B is convenient for your various hardware configurations, such as Memory Module and Hard Disk Drive. The chapter 2 will show you how to install the hardware. It includes: Installing the Memory Module Step 1 Turn off the system.
  • Page 18 ICO300-83B Series User’s Manual Step 4 The memory module is locked by two latches on the sides. We strongly recommend using “LDC737” silicone on the two sides of the memory for good ability of vibration. Step 5 Put the cover back to the system, and fasten screws tight close the chassis.

  • Page 19: Installing The Msata Module

    ICO300-83B Series User’s Manual Installing the mSATA module Step 1 Turn off the system. Step 2 Loosen all screws of the cover and remove the cover from the system. Step 3 Insert the mSATA into the slot which marking with “mSATA / USB / PCIe ” and fasten screws.

  • Page 20: Installing Wireless Module

    ICO300-83B Series User’s Manual Installing Wireless module Step 1 Turn off the system. Step 2 Loosen all screws of the cover and remove the cover from the system. Step 3 Following(Figure 3-1) push the SIM slot back to unlock SIM slot, inserting the SIM card and put it back(Figure 3-2), and lock the SIM slot(Figure 3-3).
  • Page 21 ICO300-83B Series User’s Manual Figure 3-3 Step4. Insert the wireless module into the slot which marking with “USB/PCIe ”. Hardware Installation...
  • Page 22 ICO300-83B Series User’s Manual Step 5 Insert the 3G module and screws it tight. Step 6 Removing the plug cover from the chassis. Connect the RF cable to the connector of 3G module which “MAIN”. Step 7 Hardware Installation...
  • Page 23 ICO300-83B Series User’s Manual Step 8 Taking out the parts from the 3G kit package (Figure 8-1) and make the RF cable through the antenna hole (Figure 8-2). Finally, screw it tight(Figure 8-3). Figure Figure 8-2 Figure 8-3 Hardware Installation...
  • Page 24 ICO300-83B Series User’s Manual Step 9 Screwing the RF antenna tight. Step 10 Put the cover back to the system, and fasten screws tight close the chassis. Note: SIM Card only can use the standard size as the following pictures.

  • Page 25: Installing The Hard Disk Drive

    ICO300-83B Series User’s Manual Installing the Hard Disk Drive Step 1 Turn off the system. Step 2 Loosen all screws of the cover and remove the cover from the system. Step 3 Loosen 4pcs screws of the cover, and put the HDD into the HDD bracket and fix the HDD by 4pcs of screws in the accessory bag.
  • Page 26 ICO300-83B Series User’s Manual Step 4 Put the HDD bracket on the cover and use 4pcs screws to fix tightly. Taes the HDD SATA+Power HDD cable and Cable Tie out from the accessory bag and connect SATA+Power HDD cable to HDD then use Cable Tie to fix it on the HDD bracket, cut off the lengthy Cable Tie.

  • Page 27: Installing Din-Rail Mounting

    ICO300-83B Series User’s Manual Installing Din-rail Mounting The ICO300-83B provides Din-rail Mount for 2 methods that customers can install as below: Step 1 Prepare Din-rail Mount assembling components (screws and bracket) ready. Step 2 Assembly the bracket to the system and fasten screws tight.

  • Page 28: Installing Wall Mounting (Optional)

    ICO300-83B Series User’s Manual 2.6 Installing Wall Mounting (optional) The ICO300-83B provides Wall Mounting that customers can install as below: Step 1 Prepare Wall Mount assembling components (screws and bracket) ready. Step 2 Assembly the bracket to the system, and fasten screws tight.

  • Page 29: Section 3 Ami Uefi Bios Utility

    ICO300-83B Series User’s Manual SECTION 3 AMI UEFI BIOS UTILITY The AMI UEFI BIOS provides users with a built-in Setup program to modify basic system configuration. All configured parameters are stored in a flash-backed-up to save the Setup information whenever the power is turned off...

  • Page 30: Advanced Features

    ICO300-83B Series User’s Manual Advanced Features This Advanced section allows users to configure and improve your system, to set up some system features according to your preference. You can select any of the items in the left frame of the screen to go to the sub menus:...
  • Page 31 ICO300-83B Series User’s Manual ⚫ CPU Configuration Scroll to this item and press <Enter> to view the CPU Configuration informations. (Please refer below graphics.) AMI UEFI BIOS Utility...
  • Page 32 ICO300-83B Series User’s Manual ⚫ SATA Configuration Scroll to this item and press <Enter> to view the SATA Configuration informations. (Please refer below graphics.) AMI UEFI BIOS Utility...
  • Page 33 ICO300-83B Series User’s Manual ⚫ PCIe/mSATA Mini Card Configuration You can choose the PCIe or mSATA function, it can be select by BIOS menu. AMI UEFI BIOS Utility...
  • Page 34 ICO300-83B Series User’s Manual AMI UEFI BIOS Utility...
  • Page 35 ICO300-83B Series User’s Manual ⚫ USB Configuration Scroll to this item and press <Enter> to view the USB Configuration informations. (Please refer below graphics.) AMI UEFI BIOS Utility...
  • Page 36 ICO300-83B Series User’s Manual ⚫ H/W Monitor Scroll to this item and press <Enter> to view the monitor hardware status. (Please refer below graphics.) AMI UEFI BIOS Utility...
  • Page 37 ICO300-83B Series User’s Manual ⚫ NCT6106D Super IO Configuration The default setting for all Serial Ports are RS232. You can change the setting by selecting the value you want in each COM Port Type. Supports RS422 & RS485 mode. (Please refer below graphics.)
  • Page 38 ICO300-83B Series User’s Manual You can enable COM port High-speed mode to support higher spped com port buard rate. AMI UEFI BIOS Utility...
  • Page 39 ICO300-83B Series User’s Manual Disable Enable 1430 134.5 1478.5 1950 3900 7800 1200 15600 1800 23400 2000 26000 2400 31200 3600 46800 4800 62400 7200 93600 9600 124800 19200 249600 38400 499200 57600 748800 115200 1497600 AMI UEFI BIOS Utility...
  • Page 40 ICO300-83B Series User’s Manual Serial Port Console Redirection Only COM1 has the console redirection function. The default setting for the console redirection function is [Disabled] (Please refer below graphics.) AMI UEFI BIOS Utility...
  • Page 41 ICO300-83B Series User’s Manual And you can further change the setting by selecting or setting the value you want in each function as the following pictures. AMI UEFI BIOS Utility...
  • Page 42 ICO300-83B Series User’s Manual ⚫ RTC Wake Settings The default setting is “disable”. If the setting is changed for “enable”, you can set up the fixed time to boot up automatically. (Please refer below graphics.) AMI UEFI BIOS Utility...
  • Page 43 ICO300-83B Series User’s Manual AMI UEFI BIOS Utility...
  • Page 44 Utility Configuration BIOS flash utility is a tool for flash BIOS on setup menu, follow the step to flash BIOS. Create a folder and rename to Axiomtek on the root of USB storage (Ex: X:\Axiomtek) Copy BIOS file to the Axiomtek folder (Ex: X:\Axiomtek\SBC8783BV.100)
  • Page 45 ICO300-83B Series User’s Manual AMI UEFI BIOS Utility...
  • Page 46 ICO300-83B Series User’s Manual AMI UEFI BIOS Utility...

  • Page 47: Chipset Feature

    ICO300-83B Series User’s Manual Chipset Feature AMI UEFI BIOS Utility...
  • Page 48 ICO300-83B Series User’s Manual AMI UEFI BIOS Utility...

  • Page 49: Security

    ICO300-83B Series User’s Manual Security The default setting for Administrator Password is “Not setting passwords”. The Security menu allows users to change the security settings for the system. You can set the password for both Administrator Password and User Password.

  • Page 50: Boot Type

    ICO300-83B Series User’s Manual Boot Type The default setting of boot mode is [UEFI], UEFI – suppot to boot any UEFI-capable OS and option rom Legacy - suppot to boot any legacy-capable OS and option rom Compitable – customize boot mode of uefi/legacy of specific item...
  • Page 51 ICO300-83B Series User’s Manual The default setting boot from onboard LAN PxE Rom is [Disabled] (Please refer below graphics.) AMI UEFI BIOS Utility...
  • Page 52 ICO300-83B Series User’s Manual AMI UEFI BIOS Utility...
  • Page 53 ICO300-83B Series User’s Manual The Boot Option Priorities can select by Boot Option #1, #2…, If user is using a USB Device. (Please refer below graphics.) AMI UEFI BIOS Utility...

  • Page 54: Save & Exit

    ICO300-83B Series User’s Manual Save & Exit This section allows you to determine whether or not to accept your modifications. Type “Y” to quit the setup utility and save all changes. Type “N” to bring you back to the Previous Setup utility.

  • Page 56: Appendix Awatchdog Timer

    ICO300-83B Series User’s Manual APPENDIX A WATCHDOG TIMER About Watchdog Timer After the system stops working for a while, it can be auto-reset by the watchdog timer. The integrated watchdog timer can be set up in the system reset mode by program.
  • Page 57 ICO300-83B Series User’s Manual Disable WDT  Enable configuration: O 2E 87 ; Un-lock super I/O O 2E 87  Select logic device: O 2E 07 O 2F 08  WDT device disable: O 2E 30 O 2F 00 Watchdog Timer...
