IPC920 Series User's Manual
2.7.2
The limitation of an add-on card

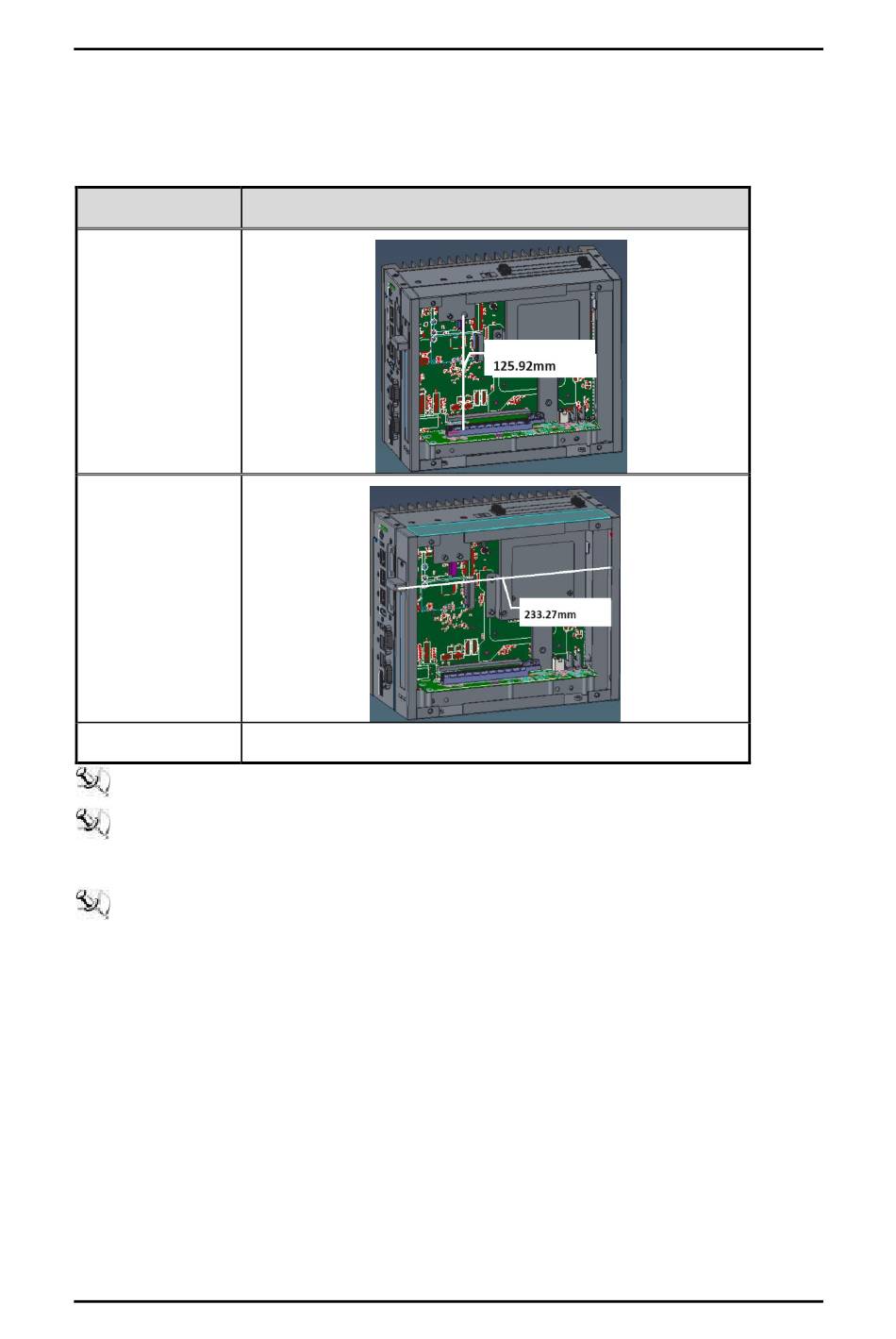

The following figures show the limitation of an add-in card in different configuration.
Height
length
width
Note: Please note that above dimension is the maximum length for add-on card with I/O bracket.
Note:
Considering heat dissipation potential, a space of 20mm must be left between an add-
on card and system.
Note:
The followings show each slot's max. dimensions for add-in card in the system, it
doesn't include power cable routing length required for add-in card.
36
Slot (PCIe x16)
1-slot
Hardware Installation
