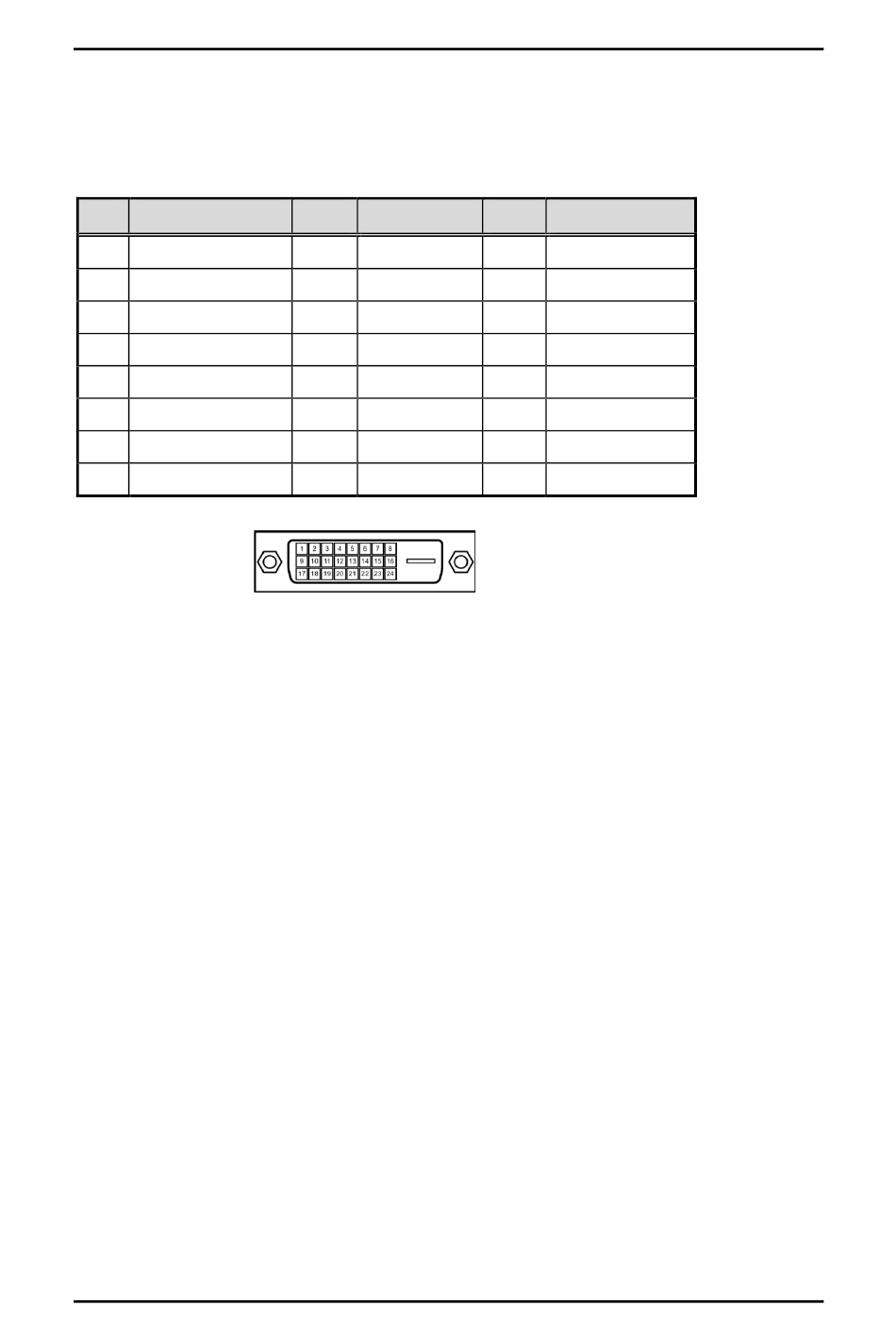

1.8.3 DVI-D Connector (DVI1)

The high rise DVI-D connector provides transmission of fast and high quality video signals
between a source device (graphic card) and a display device (monitor).
Pin Signal
1 TX2-
2 TX2+
3 Ground
4 NC
5 NC
6 DVI_SPD_CLK
7 DVI_SPD DATA
8 NC
20
Pin Signal
9 TX1-
10 TX1+
11 Ground
12 NC
13 NC
14 VGAVCC
15 Ground
16 HPDETECT
Pin Signal
17 TX0-
18 TX0+
19 Ground
20 NC
21 NC
22 Ground
23 TXC+
24 TXC-
