IPC960A/IPC962A/IPC964A Series User's Manual

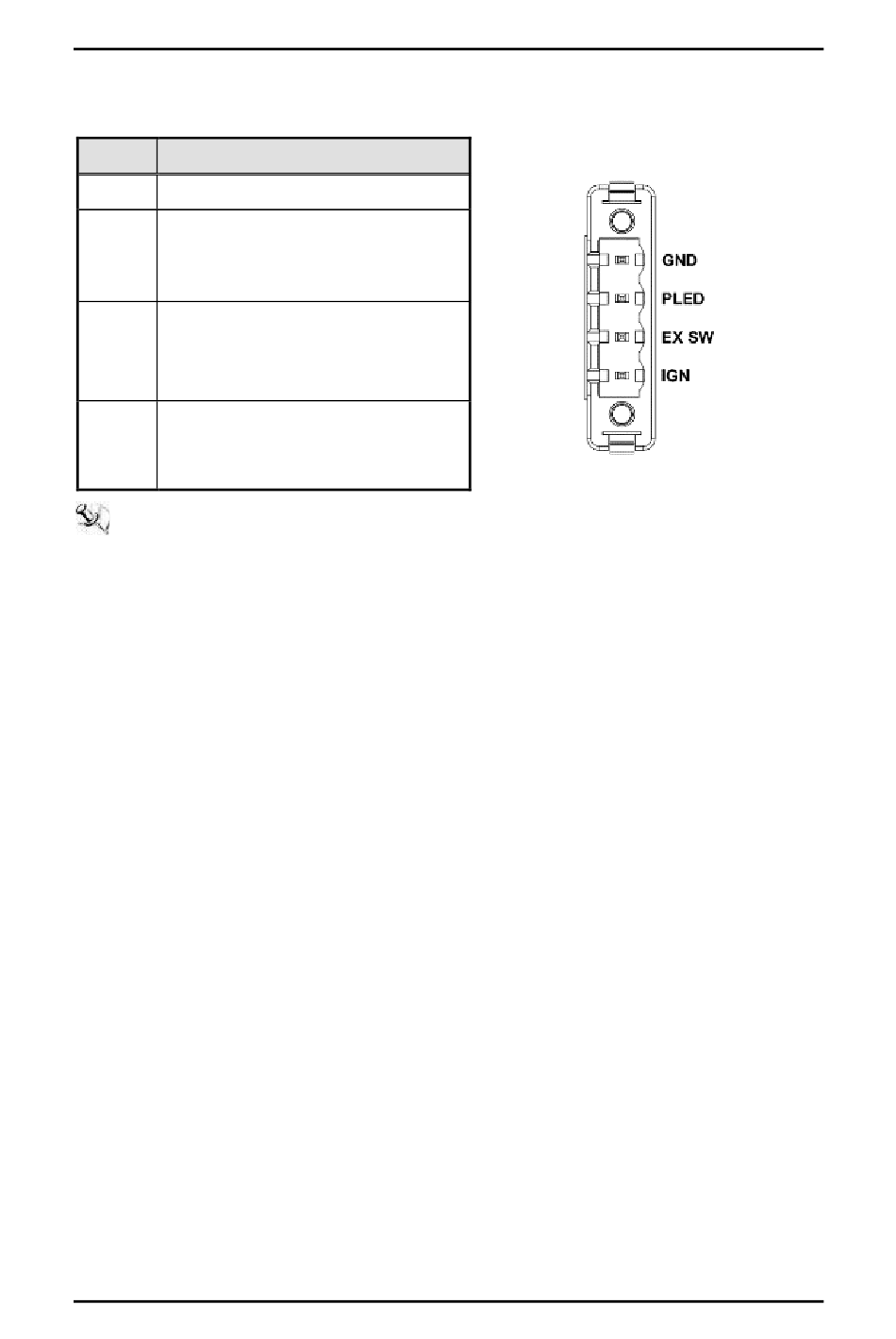

1.8.14 Extended control Connector (CN12)
The system has one 4-pin connector output for extended control Function .
Pins
Signals
1
GND
PLED Power Out
2
(Driver current Max: +3.3V/20mA)
EX SW
3
Touch to GND : Turn on/off system
IGN
4
(Max: +30V DCin)*1
Note
1 For detailed functions, refer to the IGN chapter
:
28
