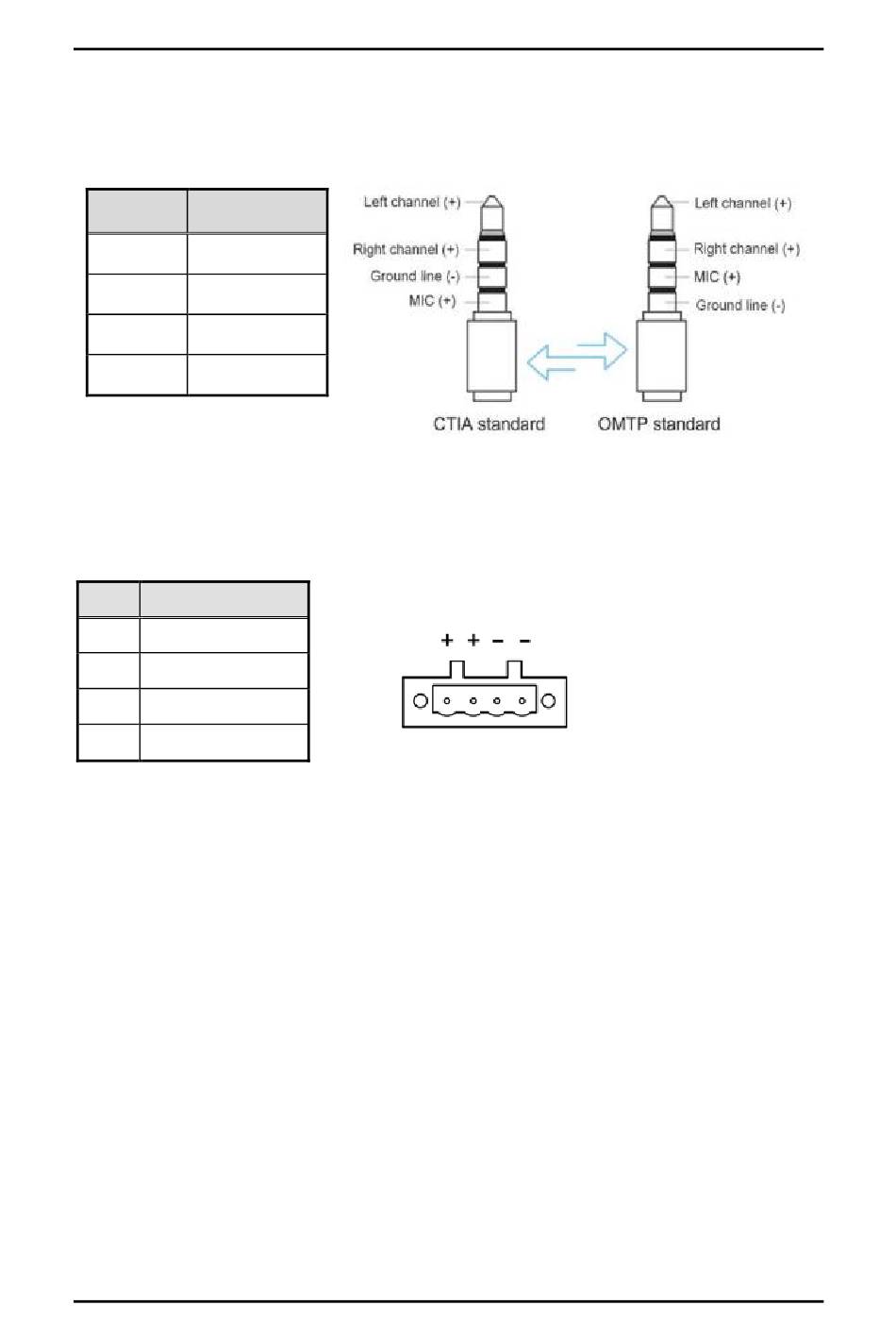

1.8.7 Audio Connector (CN4)
This audio jack support for Audio Mic-In and Line-out.
Support CTIA and OMTP pin define for auto switching.
Pins
Signals
1 (Tip)
Line-out (L)
2 (Ring1)
Line-out (R)
3 (Ring2)
GND or Mic-in
4 (Sleeve)
Mic-in or GND
1.8.8 DC-in Phoenix Power Connector (CN13)
The system supports the +18-36VDC Phoenix DC-in connector for system power input.
Pins
Signals
1
DC+
2
DC+
3
DC-
4
DC-
