Step 6
Remove the antenna plug(s), and then screw the antenna(s) on the system.
Step 7
Close the heatsink cover to the chassis and fasten all screws. The installation is complete.
Note: Please use an extended bracket when using a half-size Mini card
Note: There are five angtenna holes in the system, please adjust the antenna placement according
to the environment.
2.9
Installing the 5G Wireless Module
The IPC960A, IPC962A and IPC964A comewith an optional M.2 Key B 3042/3050/3052 slot via MIO530
daughter board for users to install a 5G wireless card. Please refer to the following instructions and
illustrations for the installation of the 5G wireless module.

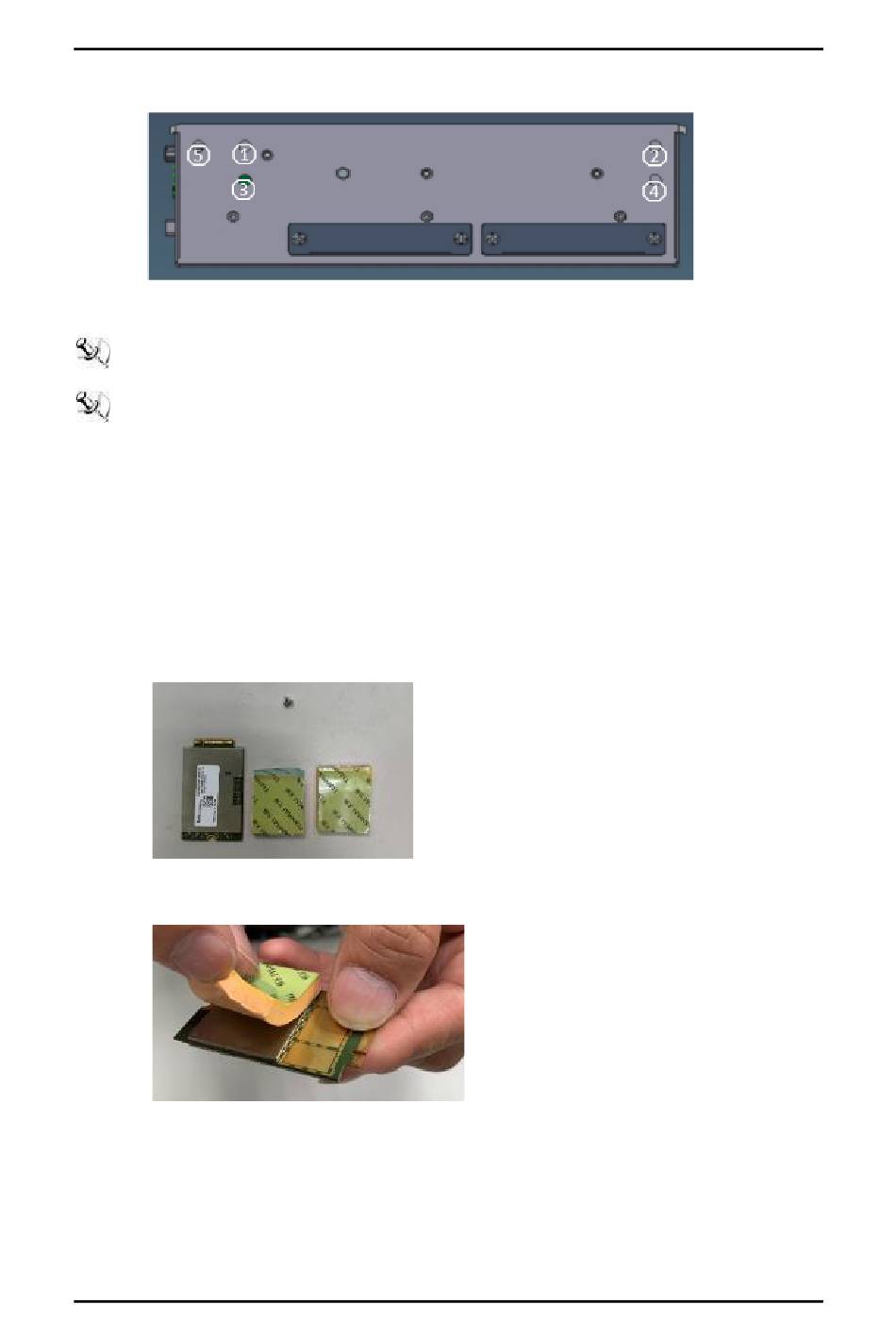

Step 1
Please take the 5G module kit from the accessory box.
Step 2
Paste the thermal pads on the bottom and top side of the module, as illustrated below.
Remember to remove the protective films from the thermal pads.
Step 3
Turn off the system.
Step 4
Disconnect the power connector.
62
Hardware Installation
