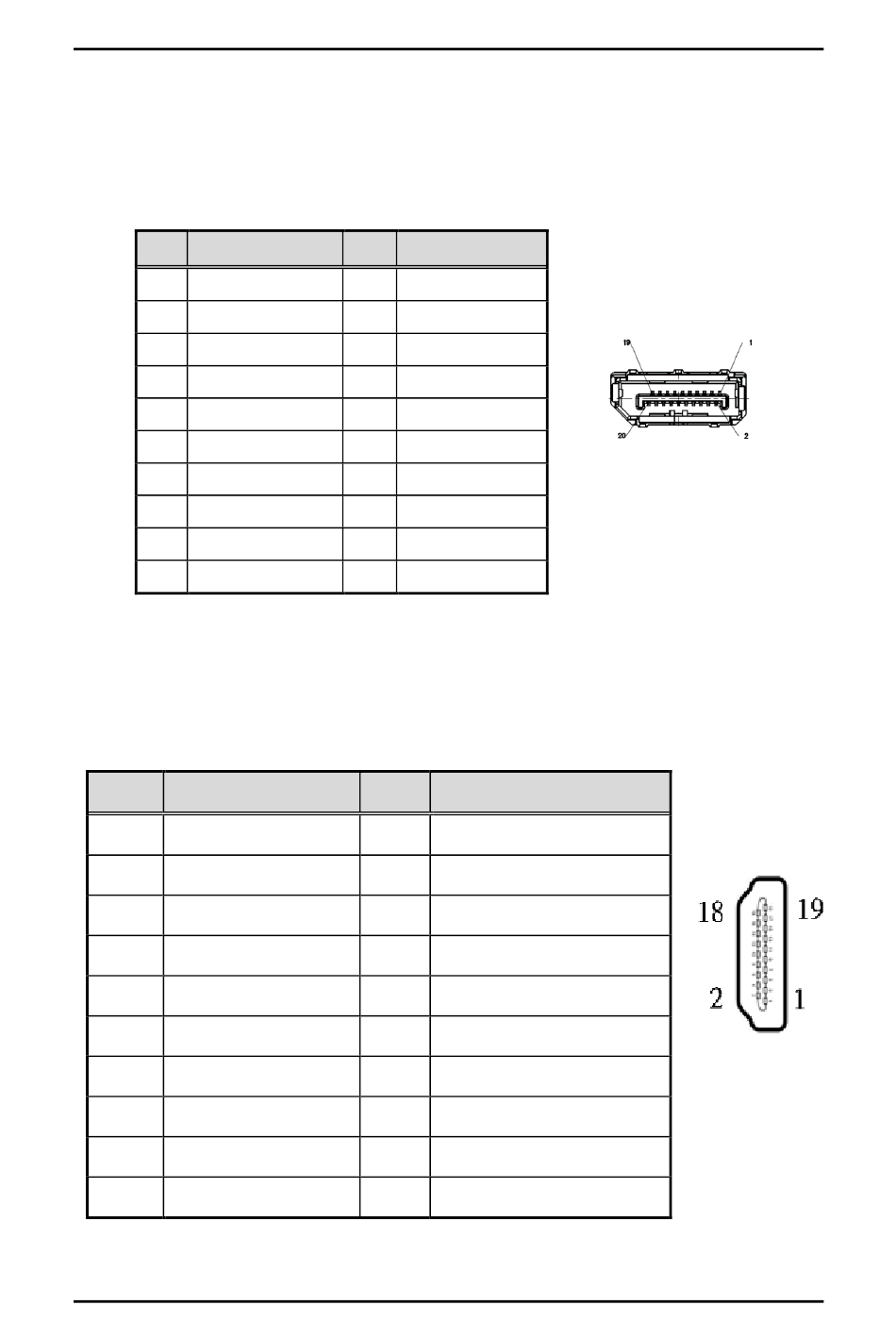

1.8.4 DP++ connector (CN2)

The DP++ is a compact digital interface which is capable of transmitting high-definition video and high-
resolution audio over a single cable.
Pin Signal
1 LANE 0
3 LANE 0#
5 GND
7 LANE 2
9 LANE 2#
11 GND
13 Detect Pin
15 AUX CH
17 AUX CH#
19 GND

1.8.5 HDMI Connector (CN1)

The HDMI (High-Definition Multimedia Interface) is a compact digital interface which is capable of
transmitting high-definition video and high-resolution audio over a single cable.
Pins Signals
1 HDMI OUT_DATA2+
2 GND
3 HDMI OUT_DATA2-
4 HDMI OUT_DATA1+
5 GND
6 HDMI OUT_DATA1-
7 HDMI OUT_DATA0+
8 GND
9 HDMI OUT_DATA0-
10 HDMI OUT Clock+
Introduction
IPC960A/IPC962A/IPC964A Series User's Manual
Pin Signal
2 GND
4 LANE 1
6 LANE 1#
8 GND
10 LANE 3
12 LANE 3#
14 GND
16 GND
18 Hot Plug Detect
20 DP_PWR(3.3V)
Pins Signals
11 GND
12 HDMI OUT Clock-
13 N.C.
14 N.C.
15 HDMI OUT_SCL
16 HDMI OUT_SDA
17 GND
18 +5V
19 HDMI_HTPLG
21
