2.6.3 The limitation of an add-on card

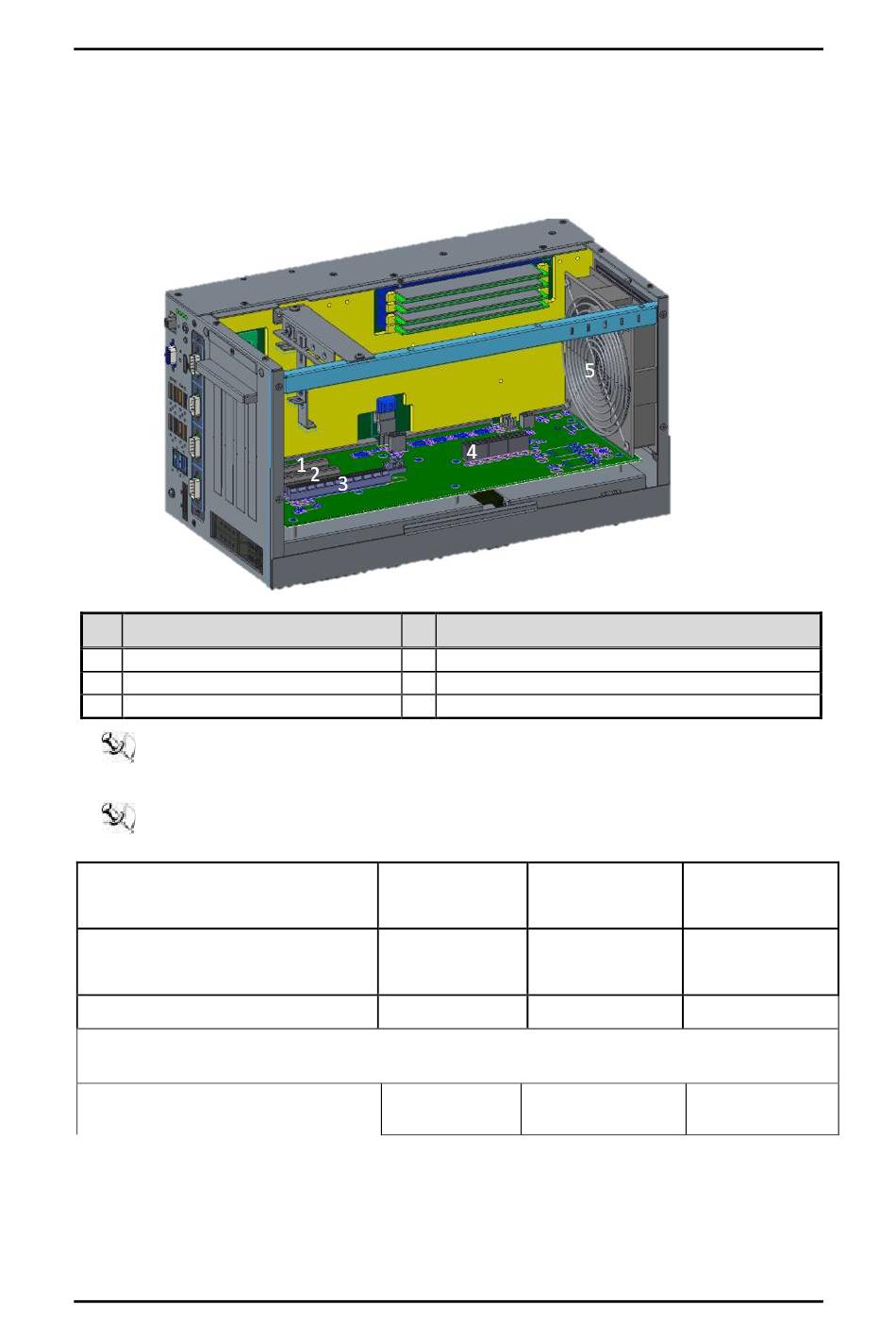

The IPC970 supports three PCIe add-on cards. The following figures show the
limitation of an add-on card in different configurations.
No. Description
1 Slot 1: PCIe x 8 (x4 signal)
2 Slot 1: PCIe x 8 (x4 signal)
3 Slot 3: PCIe x 16
Note: Please note that below dimension is the maximum length for an add-on
card with an I/O bracket.
Note: Considering heat dissipation potential, a space of 20mm must be left
between the add-on card and the system.
Slot
Height
Width
The following shows each slot's max. length for an add-on card in the system
with different configurations.
When the internal fan is installed
Hardware Installation
No. Description
4 Power connector
5 Fan module
Slot 1
(PCIe x8) (PCIe x8)
52.6-123.4 52.6-123.4
(mm)
20.32 (mm) 20.32 (mm)
336.472mm 222.832mm
IPC970 Series User's Manual
Slot 2 Slot 3
(PCIe x16)
52.6-123.4
(mm) (mm)
20.32 (mm)
336.472mm
49
