About The Units And Options; Identification; Identification Label: Outdoor Unit; Combining Units And Options - Daikin EBLA09D V3 Series Installer's Reference Manual

5 About the units and options

In this chapter

5.1 Identification

5.1.1 Identification label: Outdoor unit

5.2 Combining units and options

EBLA09~16D + EDLA09~16D
Daikin Altherma 3 M
4P620241-1B – 2022.05
5.1 Identification...........................................................................................................................................................................
5.1.1 Identification label: Outdoor unit ..........................................................................................................................
5.2 Combining units and options..................................................................................................................................................
5.2.1 Possible options for the outdoor unit....................................................................................................................
5.2.2 Possible combinations of outdoor unit and domestic hot water tank .................................................................

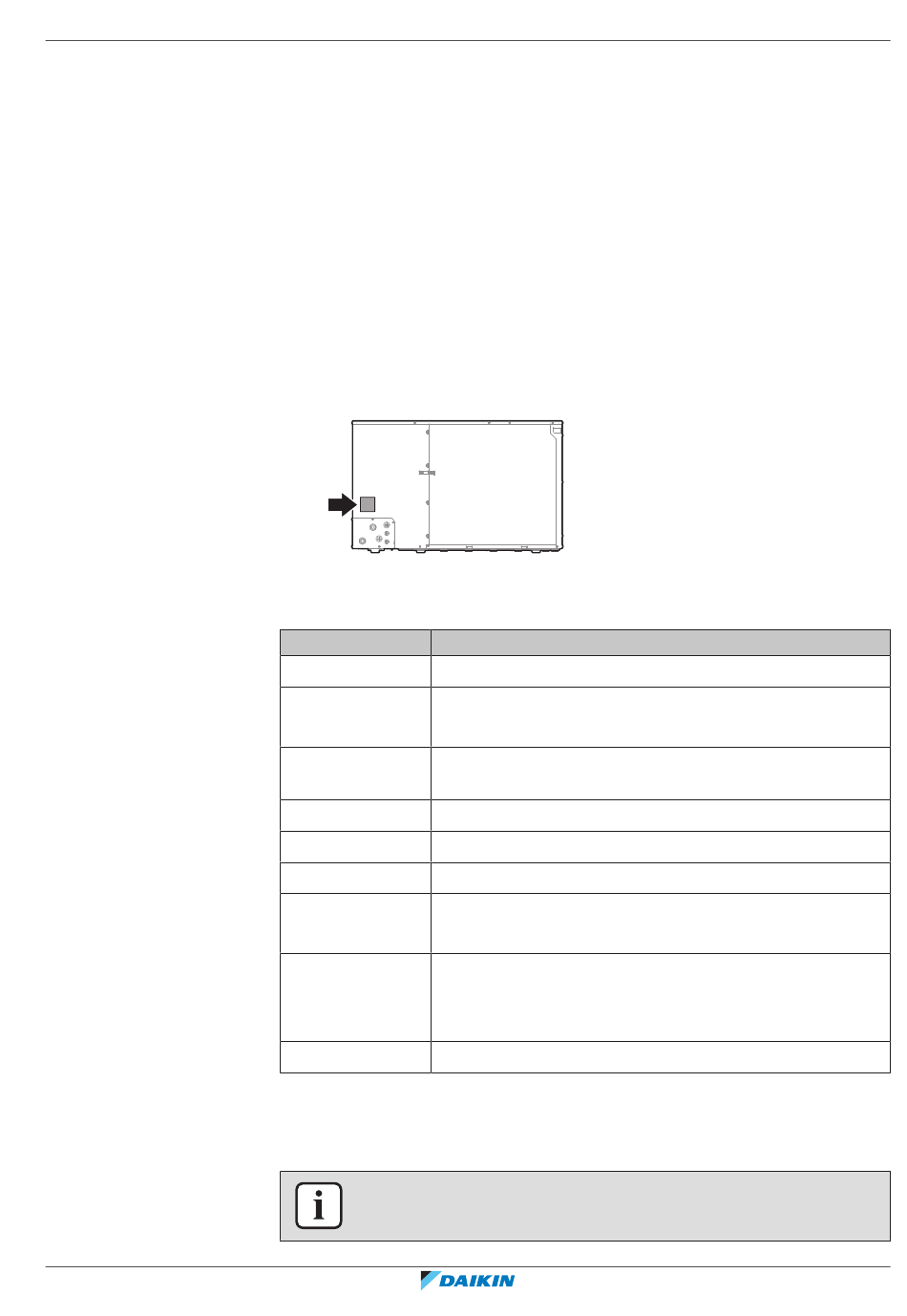

Location
Model identification
Example: E B L A 16 DA 3 V3 7
Code
E Monobloc outdoor heat pump
B B=Reversible (heating+cooling)
D=Heating only
L Low water temperature – ambient zone 2 (see operation
range)
A Refrigerant R32
16 Capacity class
DA Model series
3 3=Model with integrated backup heater
[—]=Model without integrated backup heater
V3 Power supply:
V3=1N~, 230 V AC, 50 Hz
W1=3N~, 400 V AC, 50 Hz
7 Model series
INFORMATION
Certain options may NOT be available in your country.
