Altherma remote controller
timer instructions and override functions
11
10
9
8
1. Heating on/off
2. Heating / Cooling switch
3. Hot water on/off
4. Hot water storage temp adjust
5. Heating water temp adjust
12
13
7
6
6. Time adjust
7. Schedule timer on/off
8. Weather compensation on/off 13. Time display
9. Quiet mode on/off
10. Programming button
clock and schedule
14
6C - 0M - 0Y - 61K
34C - 11M - 0Y - 0K
5
4
11. Schedule timer action
12. Day display
14. Operation mode
15. Target water temperature
0C - 0M - 71Y - 0K
20C - 97M - 41Y - 6K
1
15
2
3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Daikin ALTHERMA
Summary of Contents for Daikin ALTHERMA
- Page 1 Altherma remote controller clock and schedule timer instructions and override functions 6C - 0M - 0Y - 61K 34C - 11M - 0Y - 0K 0C - 0M - 71Y - 0K 20C - 97M - 41Y - 6K 1. Heating on/off 6.
-
Page 2: Setting The Clock
Setting the clock Push and hold the until the clock starts to flash. Adjust the time via the Adjust the day via the To save the changes push Setting the schedule timers Note: If a remote thermostat is connected will appear in the top right of the display. - Page 3 1) 7 day timer Once you have entered the mode as described, “MON” will begin to flash. Select the day you want to program via , once selected press to enter. You can scroll through any programmed actions via . To adjust the actions of the schedule timer push and hold until the display begins to flash, adjust the action time via , toggle between space heating, weather dependant...
-
Page 4: Useful Information
The boost function will then run until either deactivated, by pressing or until the set water storage temperature has been achieved. Note: Increased use of the Boost function will effect the overall efficiency of the system. www.altherma.co.uk For full user instructions, please refer to the Altherma operation manual.
Need help?
Do you have a question about the ALTHERMA and is the answer not in the manual?
Questions and answers

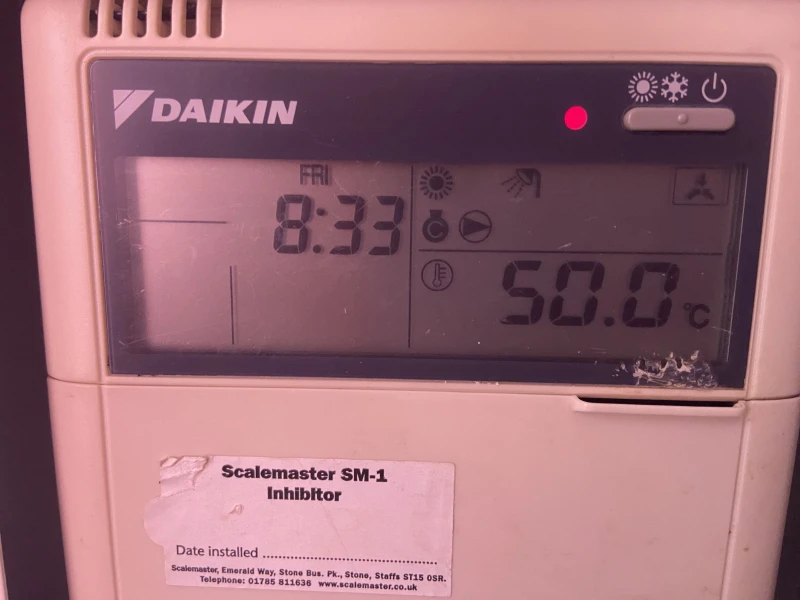

What is the symbol to the lower left in the Operation mode display. Cannot find it in the instructions
The symbol in the lower left of the Operation mode display on a Daikin ALTHERMA indicates the current space operation mode:
- Heating mode: a specific icon is shown.
- Cooling mode: a different icon is shown.
These icons help identify whether the unit is operating in heating or cooling mode.
