EBLA09~16DAV3
EBLA09~16DAW1
EBLA09~16DA3V3
EBLA09~16DA3W1
EDLA09~16DAV3
EDLA09~16DAW1
EDLA09~16DA3V3
EDLA09~16DA3W1
Service manual

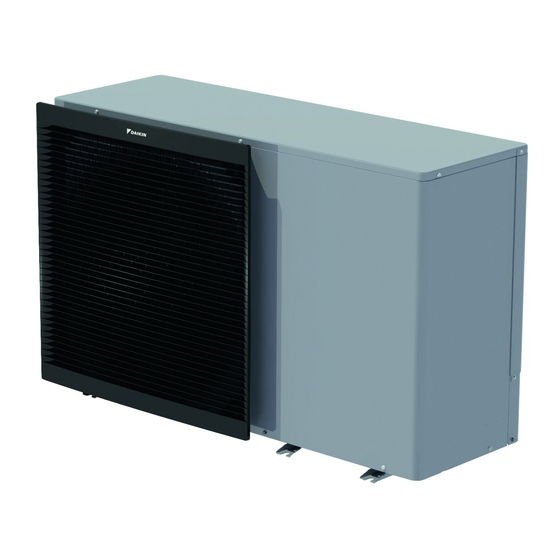

Daikin Altherma 3 M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the altherma 3 M and is the answer not in the manual?

Questions and answers

Bjorn Svensson
March 1, 2025

Hi We have a Daikin Heat-pump (EBLA14DA3W1) installed. For air to water heat conversion and distribution of the heated water through a number of internal wall based radiators to our different rooms. We have one issue - Error code 7H-06 - appearing quite often and stopping the heat pump to operate. Have you any information whats this error code means? ...or where I can find more detailed information of the root cause. I would appreciate your feed back very much.

0
1 comments:
Mr. Anderson
March 1, 2025

Error code 7H-06 for the Daikin Heat Pump (EBLA14DA3W1) indicates a "Water flow problem during cooling/defrost." This means there is an abnormality in the water flow while the unit is operating in cooling or defrost mode.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Daikin altherma 3 M

Summary of Contents for Daikin altherma 3 M

  • Page 1 Service manual Daikin Altherma 3 M EBLA09~16DAV3 EBLA09~16DAW1 EBLA09~16DA3V3 EBLA09~16DA3W1 EDLA09~16DAV3 EDLA09~16DAW1 EDLA09~16DA3V3 EDLA09~16DA3W1...
  • Page 2 The present publication is drawn up by way of information only and does not constitute an offer binding upon Daikin Europe N.V.. Daikin Europe N.V. has compiled the content of this publication to the best of its knowledge. No express or implied warranty is given for the completeness, accuracy, reliability or fitness for particular purpose of its content and the products and services presented therein.
  • Page 3 The following updates have been applied to the Service Manual: • Technical data – Wiring diagram: Electrical connection diagram updated. • Technical data – Wiring diagram: Wiring diagrams for Hydro module updated. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 4: Table Of Contents

    L1-00 – Outdoor unit: Main PCB abnormality ....................50 2.3.58 L3-00 – Outdoor unit: Electrical box temperature rise problem..............50 2.3.59 L4-00 – Outdoor unit: Malfunction of inverter radiating fin temperature rise ..........51 Service manual EBLA09~16DA + EDLA09~16DA Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 5 Repair procedures ............................140 Compressor thermal protector............................146 3.8.1 Checking procedures ............................146 3.8.2 Repair procedures ............................147 Expansion valve................................149 3.9.1 Checking procedures ............................149 3.9.2 Repair procedures ............................152 EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 6 Checking procedures ............................307 4.4.2 Repair procedures ............................307 External factors ................................307 4.5.1 Checking procedures ............................307 5 Maintenance To clean the outdoor unit heat exchanger........................309 Service manual EBLA09~16DA + EDLA09~16DA Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 7 Component overview: Three phase without backup heater................. 339 6.4.5 Component overview: Backup heater kit ...................... 341 Field information report ..............................342 Service tools ..................................345 Field settings ................................... 346 EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 8: General Operation

    In defrost or oil return operation the heat exchanger functions as a condenser, while its fan motor is stopped. Cooling mode The compressor capacity step is defined by the evaporation temperature, which is calculated through the low pressure sensor read-out. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 9 Stainless domestic Polypropylene hot water tank domestic hot EKHWS(U) water tank EKHWP Floorstanding heat Wall mounted heat pump convector pump convector FWXV FWXT Concealed heat pump convector FWXM EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 10: Troubleshooting

    Conditions: The user permission level is set to advanced end user. 1 Go to [8.2]: Information > Malfunction history. You see a list of the most recent malfunctions. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 11: Error Based Troubleshooting

    10 Perform a check of the hydro PCB. See "3.12 Hydro PCB" [  160]. Possible cause: Faulty hydro PCB. INFORMATION If all procedures listed above have been performed and the problem is still present, contact the helpdesk. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 12: 04 - Water Flow Problem During Domestic Hot Water Production

    9 Perform a check of the hydro PCB. See "3.12 Hydro PCB" [  160]. Possible cause: Faulty hydro PCB. INFORMATION If all procedures listed above have been performed and the problem is still present, contact the helpdesk. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 13: 05 - Water Flow Problem During Heating/Sampling

    9 Perform a check of the hydro PCB. See "3.12 Hydro PCB" [  160]. Possible cause: Faulty hydro PCB. INFORMATION If all procedures listed above have been performed and the problem is still present, contact the helpdesk. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 14: 06 - Water Flow During Cooling/Defrost

    "3.3 Backup heater" [  104]. Possible cause: Faulty backup heater. 11 If installed, perform a check of the booster heater. See "3.5  Booster heater" [  129]. Possible cause: Faulty booster heater. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 15: Inlet Water Thermistor Abnormality

    2 Perform a check of the hydro PCB. See "3.12 Hydro PCB" [  160]. Possible cause: Faulty hydro PCB. INFORMATION If all procedures listed above have been performed and the problem is still present, contact the helpdesk. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 16: Outlet Water Temperature Thermistor Abnormality

    Possible cause: Faulty hydro PCB. 5 Check that all stop valves of the refrigerant circuit are open. See "4.2 Refrigerant circuit" [  286]. Possible cause: Closed stop valve in the refrigerant circuit. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 17: Heat Exchanger Frozen

    2 Perform a check of the main PCB. See "3.14 Main PCB" [  171]. Possible cause: Faulty main PCB. INFORMATION If all procedures listed above have been performed and the problem is still present, contact the helpdesk. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 18: Heat Exchanger Frozen

    3 Perform a check of the backup heater. See "3.3 Backup heater" [  104]. Possible cause: Faulty backup heater. 4 Perform a check of the hydro PCB. See "3.12 Hydro PCB" [  160]. Possible cause: Faulty hydro PCB. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 19: 00 - Abnormal Increase Outlet Water Temperature

    1 Check the set trigger temperature of the safety thermostat. See "4.4 Manufacturer components" [  307]. Possible cause: Faulty trigger temperature setting of the safety thermostat. 2 Check the set water temperature. See "3.21 User interface" [  266]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 20: A1-00 - Zero Cross Detection Problem

    2.3.15 A5-00 – Outdoor unit: High pressure peak cut / freeze protection problem Trigger Effect Reset Pressure is too high in Unit will stop operating. Manual reset via user heating / domestic hot interface. water, too low in cooling. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 21: Backup Heater Overheated

    To solve the error code INFORMATION It is recommended to perform the checks in the listed order. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 22: External Backup Heater Overheated

    3 Purge the water circuit. See "4.3 Water circuit" [  299]. Possible cause: Air in the water circuit. 4 Check the water circuit for an external heat source. See "4.3  Water circuit" [  299]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 23: Booster Heater Overheated

    Possible cause: Open jumper X21A on hydro PCB. 6 Perform a check of the booster heater thermal protector. See "3.6  Booster heater thermal protector" [  133]. Possible cause: Faulty booster heater thermal protector. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 24: Tank Disinfection Function Not Completed Correctly

    3 Check the domestic hot water tank and booster heater related settings. See "3.21 User interface" [  266]. Possible cause: Faulty booster heater settings. INFORMATION If all procedures listed above have been performed and the problem is still present, contact the helpdesk. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 25: Too Long Domestic Hot Water Heat-Up Time Required

    8 Check that the domestic hot water consumption is NOT too large. Lower if needed. Possible cause: Domestic hot water consumption too large. INFORMATION If all procedures listed above have been performed and the problem is still present, contact the helpdesk. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 26: C0-00 - Flow Sensor Malfunction

    To solve the error code INFORMATION It is recommended to perform the checks in the listed order. 1 Perform check refrigerant liquid thermistor. "3.20 Thermistors" [  248]. Possible cause: Faulty refrigerant liquid thermistor. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 27: C5-00 - Heat Exchanger Thermistor Abnormality

    To solve the error code INFORMATION It is recommended to perform the checks in the listed order. 1 Perform a check of the room thermistor: EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 28: E1-00 - Outdoor Unit: Pcb Defect

    Possible cause: Faulty compressor or miswiring of the compressor power supply cable. Prerequisite: Stop the unit operation via the user interface. 5 Turn OFF the respective circuit breaker. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 29: E3-00 - Outdoor Unit: Actuation Of High Pressure Switch

    "3.11  High pressure switch" [  157]. Possible cause: Faulty high pressure switch. 4 Perform a check of the main PCB. See "3.14 Main PCB" [  171]. Possible cause: Faulty main PCB. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 30: E3-24 - High Pressure Switch Abnormality

    3 Perform a check of the main PCB. See "3.14 Main PCB" [  171]. Possible cause: Faulty main PCB. 4 Check if the refrigerant circuit is correctly charged. See "4.2  Refrigerant circuit" [  286]. Possible cause: Refrigerant overcharge. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 31: E4-00 - Abnormal Suction Pressure

    7 Check the required space around the outdoor unit heat exchanger. See "4.5 External factors" [  307]. Possible cause: Insufficient air flow or air by‑pass due to required space specifications not met. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 32: E5-00 - Outdoor Unit: Overheat Of Inverter Compressor Motor

    9 Check for the presence of non‑condensables and/or humidity in the refrigerant circuit. See "4.2 Refrigerant circuit" [  286]. Possible cause: Non‑condensables and/or humidity in the refrigerant circuit. 10 Check if the refrigerant circuit is clogged. See "4.2 Refrigerant circuit" [  286]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 33: E6-00 - Outdoor Unit: Compressor Startup Defect

    8 Perform a check of the 4‑way valve. See "3.2 4-way valve" [  96]. Possible cause: Faulty 4‑way valve. 9 Perform a check of all expansion valves. See "3.9 Expansion valve" [  149]. Possible cause: Faulty expansion valve. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 34: E7-00 - Outdoor Unit: Malfunction Of Outdoor Unit Fan Motor

    2 Perform a check of the compressor. See "3.7 Compressor" [  134]. Possible cause: Faulty compressor or miswiring of the compressor power supply cable. 3 Perform a check of the main PCB. See "3.14 Main PCB" [  171]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 35: E9-00 - Malfunction Of Electronic Expansion Valve

    7 Perform a check of the main PCB. See "3.14 Main PCB" [  171]. Possible cause: Faulty main PCB. 8 Check if the power supply is conform with the regulations. See "4.1 Electrical circuit" [  284]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 36: Outdoor Unit: Cool/Heat Switchover Problem

     286]. Possible cause: Closed stop valve in the refrigerant circuit. 7 Check if the refrigerant circuit is clogged. See "4.2 Refrigerant circuit" [  286]. Possible cause: Clogged refrigerant circuit. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 37: Abnormal Increase Tank Temperature

    The water in the heating system and the tank is too cold to perform defrost operation, so the tank needs to be preheated electrically. Wait until preheating operation is done. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 38: F3-00 - Outdoor Unit: Malfunction Of Discharge Pipe Temperature

    "3.20 Thermistors" [  248]. Possible cause: Faulty refrigerant side thermistor(s). INFORMATION If all procedures listed above have been performed and the problem is still present, contact the helpdesk. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 39: F6-00 - Outdoor Unit: Abnormal High Pressure In Cooling

    2.3.39 FA-00 – Outdoor unit: Abnormal high pressure, actuation of high pressure switch Trigger Effect Reset Outdoor heat exchanger Unit will NOT stop Automatic reset when thermistor measures a operating. temperature drops. too high temperature. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 40: H0-00 - Outdoor Unit: Voltage/Current Sensor Problem

    2.3.40 H0-00 – Outdoor unit: Voltage/current sensor problem Trigger Effect Reset Compressor voltage (DC) Unit will stop operating. Manual reset via user is out of range before interface. start‑up. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 41: H1-00 - External Temperature Sensor Problem

    To solve the error code INFORMATION It is recommended to perform the checks in the listed order. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 42: H3-00 - Outdoor Unit: Malfunction Of High Pressure Switch

    Unit will stop operating. Manual reset via user defective or NOT well interface. connected. To solve the error code INFORMATION It is recommended to perform the checks in the listed order. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 43: H5-00 - Malfunction Of Compressor Overload Protection

    "3.20 Thermistors" [  248]. Possible cause: Faulty discharge pipe thermistor or connector fault. 8 Perform a check of the main PCB. See "3.14 Main PCB" [  171]. Possible cause: Faulty main PCB. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 44: H6-00 - Outdoor Unit: Malfunction Of Position Detection Sensor

    ▪ Faulty or disturbance of the power supply (imbalance >4%), ▪ Power drop, ▪ Short circuit. INFORMATION If all procedures listed above have been performed and the problem is still present, contact the helpdesk. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 45: H8-00 - Outdoor Unit: Malfunction Of Compressor Input System

    2 Perform a check of the main PCB. See "3.14 Main PCB" [  171]. Possible cause: Faulty main PCB. INFORMATION If all procedures listed above have been performed and the problem is still present, contact the helpdesk. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 46: Tank Temperature Sensor Problem

    4 Perform a check of the hydro PCB. See "3.12 Hydro PCB" [  160]. Possible cause: Faulty hydro PCB. INFORMATION If all procedures listed above have been performed and the problem is still present, contact the helpdesk. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 47: J3-00 - Outdoor Unit: Malfunction Of Discharge Pipe Thermistor

    INFORMATION If all procedures listed above have been performed and the problem is still present, contact the helpdesk. 2.3.52 J6-00 – Outdoor unit: Malfunction of heat exchanger thermistor EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 48: J6-07 - Outdoor Unit: Malfunction Of Heat Exchanger Thermistor

    2.3.54 J6-32 – Leaving water temperature thermistor abnormality (outdoor unit) Trigger Effect Reset Temperature sensor after Unit will NOT stop Automatic reset. plate type heat exchanger operating. is broken. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 49: J8-00 - Malfunction Of Refrigerant Liquid Thermistor

    2.3.56 JA-00 – Malfunction of high pressure sensor Trigger Effect Reset Refrigerant pressure Unit will stop operating. Manual reset via user sensor detects a value out interface. of range (>4.5 MPa or <– 0.05 MPa). EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 50: L1-00 - Outdoor Unit: Main Pcb Abnormality

    2.3.58 L3-00 – Outdoor unit: Electrical box temperature rise problem Trigger Effect Reset Switch box temperature is Unit will stop operating. Manual reset via remote too high. controller. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 51: L4-00 - Outdoor Unit: Malfunction Of Inverter Radiating Fin Temperature Rise

    3 Perform a check of the main PCB. See "3.14 Main PCB" [  171]. Possible cause: Faulty main PCB. Prerequisite: Stop the unit operation via the user interface. 4 Turn OFF the respective circuit breaker. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 52: L5-00 - Outdoor Unit: Inverter Instantaneous Overcurrent

     134]. Possible cause: Faulty compressor or miswiring of the compressor power supply cable. 7 Check if the power supply is conform with the regulations. See "4.1 Electrical circuit" [  284]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 53: L8-00 - Malfunction Triggered By A Thermal Protection In The Main Pcb

    4 Check for the presence of non‑condensables and/or humidity in the refrigerant circuit. See "4.2 Refrigerant circuit" [  286]. Possible cause: Non‑condensables and/or humidity in the refrigerant circuit. 5 Perform a check of the main PCB. See "3.14 Main PCB" [  171]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 54: L9-00 - Prevention Of Compressor Lock

     286]. Possible cause: Non‑condensables and/or humidity in the refrigerant circuit. INFORMATION If all procedures listed above have been performed and the problem is still present, contact the helpdesk. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 55: Malfunction In Communication System Of Outdoor Unit

    ▪ Faulty or disturbance of the power supply (imbalance >4%), ▪ Power drop, ▪ Short circuit. INFORMATION If all procedures listed above have been performed and the problem is still present, contact the helpdesk. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 56: P3-00 - Abnormal Direct Current

    EEPROM. Power supply reset. To solve the error code 1 Perform a check of the main PCB. See "3.14 Main PCB" [  171]. Possible cause: Faulty main PCB. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 57: U0-00 - Outdoor Unit: Shortage Of Refrigerant

    "4.2 Refrigerant circuit" [  286]. Possible cause: Leak in the refrigerant circuit. INFORMATION If all procedures listed above have been performed and the problem is still present, contact the helpdesk. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 58: U1-00 - Malfunction By Reverse Phase/Open Phase

    Possible cause: Faulty compressor or miswiring of the compressor power supply cable. 3 Perform a check of the outdoor unit fan motor. See "3.16  Outdoor unit fan motor" [  217]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 59: U3-00 - Under Floor Heating Screed Dry Out Function Not Completed Correctly

    To solve the error code INFORMATION It is recommended to perform the checks in the listed order. 1 Check if the power supply is conform with the regulations. See "4.1 Electrical circuit" [  284]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 60: U5-00 - User Interface Communication Problem

    It is recommended to perform the checks in the listed order. 1 Perform a check of the hydro PCB. See "3.12 Hydro PCB" [  160]. Possible cause: Faulty hydro PCB. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 61: U7-00 - Outdoor Unit: Transmission Malfunction Between Main Microcomputer - Inverter Microcomputer

    2.3.75 U8-02 – Connection with room thermostat lost Trigger Effect Reset Communication Unit will NOT stop Automatic reset. abnormality between unit operating. and room thermostat after connection was already made. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 62: U8-03 - No Connection With Room Thermostat

     284]. Possible cause: ▪ Faulty or disturbance of the power supply (imbalance >4%), ▪ Power drop, ▪ Short circuit. 2 Perform a check of the room thermistor: EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 63: U8-04 - Unknown Usb Device

    Possible cause: Connected USB/SDcard to update the user interface or upload e‑configuration data CANNOT be read because wrongly formatted, or the file config.cfg CANNOT be found on the USB/SDcard. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 64: U8-07 - P1/P2 Communication Error

    2.3.80 U8-11 – Connection with wireless gateway lost Trigger Effect Reset Communication Unit will NOT stop Automatic reset. abnormality between unit operating. and wireless gateway. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 65: Indoor Unit, Outdoor Unit Mismatching Problem

    It is recommended to perform the checks in the listed order. 1 Check that the AP mode is active (= WLAN adapter active as access point). 2 For more information about the configuration and further troubleshooting, see the Daikin Residential Controller app or see the website: http:// www.onlinecontroller.daikineurope.com/...

  • Page 66: Reversed Piping Or Bad Communication Wiring Detection

     331] and "6.2 Wiring diagram" [  314]. Possible cause: Piping and/or wiring mismatch. INFORMATION If all procedures listed above have been performed and the problem is still present, contact the helpdesk. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 67: Symptom Based Troubleshooting

    Adjust water pressure if checked during filling, required (±2 bar). ▪ Air was purged from the water circuit after filling, ▪ Leakage. ▪ Expansion vessel broken or not properly pre-adjusted. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 68 Root cause Check Repair Incorrect setting of pump Incorrect setting. Confirm setting [F‑0]. Adapt setting [F‑0] if operation mode required (factory setting: (continuous, sample, [F‑0]=1). request) (setting [F‑0D]). EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 69: Tap Water Related

    Water circuit - bad odour Bad quality/contamination Check the water quality Assure that quality of of supply water. of supply water. (odour/contamination) at entering water is OK. cold domestic water inlet. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 70: Symptom: User Interface Is Failure Or Frozen Screen

    Check safety valve. Replace safety valve. Safety valve leaking. Component failure. Check safety valve. Replace safety valve. Leakage of drain valve. Component failure. Check drain valve. Replace drain valve. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 71: Symptom: Water Flow Or Volume Too Low

    Confirm that the U, V, W Correct the U, V, W wiring. incorrectly connected to repair. wiring is correctly compressor. connected. See "6.2 Wiring diagram" [  314] for an indication how to connect correctly. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 72 (with contact ▪ Check refrigerant refrigerant circuit. thermometer) before the circuit for blockages. compressor and comparing with the saturated evaporation temperature. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 73 Compressor at end of lifetime. Unit produces (loud) noise ▪ Refrigerant overcharge, Check refrigerant. After vacuum drying, or shakes. charge correct amount of ▪ Mixing refrigerant. refrigerant system, ▪ Refrigerant undercharge. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 74: Symptom: Abnormal Presence Of Ice

    Outdoor unit installation enough to defrost due to MUST be protected from too strong wind, snow, ... weather (wind, snow, ...). See installer reference guide for correct installation. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 75: Symptom: Domestic Hot Water Capacity Shortage

    Domestic hot water tank Check domestic hot water Replace domestic hot water tank thermistor. thermistor measures a tank thermistor. water tank thermistor. higher temperature than actual (component failure). EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 76: Symptom: General Capacity Shortage

    (with contact ▪ Check refrigerant refrigerant circuit. thermometer) before the circuit for blockages. compressor and comparing with the saturated evaporation temperature. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 77 (cooling). Water filter blocked. Dirty water. ▪ Check water filter, ▪ Clean the water filter, ▪ Check water quality. ▪ Check the water quality. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 78 Component failure. Check the flow sensor. Replace the flow sensor. flow measured higher than actual. 3‑way valve blocked. Component failure. Check the 3‑way valve. Replace the 3‑way valve. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 79: Symptom: Space Heating Capacity Shortage

    3‑way valve does NOT 3‑way valve incorrectly Check the 3‑way valve. Correct the position of the switch correctly between mounted. 3‑way valve. space heating (cooling) connection and domestic hot water connection. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 80: Symptom: Inaccurate Temperature Control

    NOT representing room in case of room thermostat position to measure the accurate room temperature. control (setting [C‑07]=2). correct room temperature. temperature measurement. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 81: Symptom: Power Consumption Too High

    Wrong setting of [C‑07] - Check setting [C‑07]. Adjust setting to match used with setting [C‑07] on unit control method. application - see installer value 1 (= external reference guide. thermostat control). EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 82 See the system to run at full the capacity tables in the capacity. engineering data book to know max. system capacity at indicated conditions. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 83: Symptom: System Does Not Start Or Operate

    (cooling) operation or (cooling) or domestic hot operation is NOT activated domestic hot water water operation on the on the user interface. operation is activated on user interface. user interface. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 84 ▪ Check good operation of outdoor unit PCB. Reactor coil broken. Component problem. Check continuity of the Replace the reactor coil in reactor coil. case faulty. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 85: Symptom: The Pump Is Blocked

    Note: Do NOT use excessive force. If you cannot deblock the rotor of the pump with this method, you will need to disassemble the pump and turn the rotor by hand. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 86: Components

    6 Measure the voltage on connector X2M pin 13 and pin 14a. Result: The measured voltage MUST be 230 V AC. 7 Measure the voltage on connector X2M pin 13 and pin 12. Result: The measured voltage MUST be 0 V AC. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 87 Prerequisite: First perform an electrical check of the 3‑way valve, see "3.1.1 Checking procedures" [  86]. 1 Turn ON the power of the unit. 2 Activate DHW operation via the user interface. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 88 Prerequisite: First perform a position check (automatic procedure), see "3.1.1 Checking procedures" [  86]. 1 Manually put the 3‑way valve in the domestic hot water position by rotating the 3‑way valve knob. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 89: Repair Procedures

     230]. 2 Disconnect the 3‑way valve motor wiring from the wire terminal X2M. 3 Route the 3‑way valve motor harness through the grommet in the switch box. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 90 1 Drain water from the water circuit, see "4.3.2 Repair procedures" [  302]. 2 Remove the insulation that covers the 3‑way valve body. 3 Remove the 3 clips that fix the 3‑way valve body to the piping. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 91 3‑way valve motor on the 3‑way valve body.The 3‑way valve motor is shipped with the 3‑way valve knob in the central position. 1 Check the position of the notch in the 3‑way valve body axle. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 92 4 Tighten the screw to fix the 3‑way valve motor to the 3‑way valve body. a 3‑way valve motor b Screw 5 Install the 3‑way valve knob on the 3‑way valve motor. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 93 10 Connect the 3‑way valve motor wiring to the wire terminal X2M. 11 Install new tie straps to fix the 3‑way valve harness. 12 Open the valve (if equipped) of the water circuit towards the expansion vessel. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 94 3‑way valve motor on the 3‑way valve body.The 3‑way valve motor is shipped with the 3‑way valve knob in the central position. 1 Check the position of the notch in the 3‑way valve body axle. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 95 4 Tighten the screw to fix the 3‑way valve motor to the 3‑way valve body. a Screw 5 Install the 3‑way valve knob on the 3‑way valve motor. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 96: 4-Way Valve

    The coil gets hot while energized. Wait for it to cool down. 2 Verify that the screw is firmly fixing the coil to the valve body. 3 Check if any damage or burst is present. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 97 6 Measure the voltage on the 4‑way valve connection on the PCB. Result: The measured voltage MUST be: Unit Voltage 1‑phase outdoor unit 0 V AC 3‑phase outdoor unit 0 V DC EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 98 4‑way valve connection of the PCB. Result: The measured voltage MUST be: Unit Voltage in Heating Voltage in Defrost mode mode 1‑phase outdoor unit 230 V AC 0 V AC 3‑phase outdoor unit 12 V DC 0 V DC EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 99 5 Check with a contact thermometer (or by touching) if the flow through the 4- way valve corresponds with the flow shown in the flow diagram. (See "6.3 Piping diagram" [  331]). EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 100 2 Check with a contact thermometer (or by touching) if the flow through the 4- way valve corresponds with the flow shown in the flow diagram of the specific operation mode. (See "6.3 Piping diagram" [  331]). EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 101: Repair Procedures

    Prerequisite: If needed, remove any parts to create more space for the removal of the 4‑way valve coil. 1 Remove the screw and remove the 4‑way valve coil from the 4‑way valve body. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 102 4‑way valve pipes using an oxygen acetylene torch and remove the 4‑way valve pipes from the refrigerant pipes using pliers. a 4‑way valve pipe EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 103 7 Install the putty (if available) and the insulation (if available) in their original location. 8 Install the 4‑way valve coil on the 4‑way valve body, see "3.2.2  Repair procedures" [  101]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 104: Backup Heater

    3.3 Backup heater 3.3.1 Built-in backup heater Checking procedures INFORMATION It is recommended to perform the checks in the listed order. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 105 1 Open all circuit breakers. CAUTION To prevent damage to the unit, all circuit breakers MUST be opened before using a Megger. 2 Set the Megger voltage to 500 V AC. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 106 6 Check if the field installed circuit breaker has tripped. Did the fuse blow or did the field Action supplied circuit breaker of the backup heater trip? Replace the backup heater, see "Repair procedures" [  108]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 107 4 Measure the voltage between the following terminals of the backup heater contactor. ▪ K1M: 1‑3 / 2‑4 The measured voltages MUST be 230 V AC ± 10%. a Backup heater contactor K1M EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 108 "Repair procedures" [  123]. 3 Unscrew and remove the air purge valve. Keep for reuse. 4 Loosen and remove the screw from the pipe clamp. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 109 Make sure that the O-ring stays in place. 8 Remove the clip from the lower backup heater coupling. a Clip b Lower backup heater coupling c Backup heater 9 Separate the lower backup heater coupling. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 110 Backup heater INFORMATION Make sure that the back‑up heater pipe is fully inserted in the back‑up heater coupling. a Clip b Backup heater pipe c Backup heater coupling EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 111 INFORMATION Take care NOT to damage the insulation during installation. 12 Open the stop valves and add water to the water circuit if needed, see "4.3.2 Repair procedures" [  302]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 112: Backup Heater Kit

    To perform a resistance check of the backup heater Prerequisite: Stop the unit operation via the user interface. Prerequisite: Turn OFF the respective circuit breaker. 1 Remove the required plate work, see "3.17 Plate work" [  230]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 113 Is the measured backup heater Action resistance correct? Return to "Checking procedures" [  112] of the backup heater and continue with the next procedure. Replace the backup heater, see "Repair procedures" [  117]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 114 2 Activate Installer on the user interface. See the installer reference guide for the correct procedure. 3 Go to Actuator test run via the user interface. 4 Activate backup heater: step 1. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 115 For backup heater option with 3~, 400 V, 6 kW or 9 kW backup heater: ▪ K5M: 2‑4, 4‑6, 2‑6 All measured voltages MUST be 400 V AC ± 10%. ▪ K5M: 2‑14 The measured voltage MUST be 230 V AC ± 10%. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 116 The measured voltage MUST be 230 V AC ± 10%. INFORMATION Make sure that the wiring between the backup heater contactors is properly connected and NOT damaged (check continuity), see "6.2 Wiring diagram" [  314]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 117 2 Unscrew and remove the air purge valve from the backup heater. Keep for reuse. 3 Cut the insulation that covers the upper backup heater coupling. 4 Open the insulation and remove the screw from the pipe clamp. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 118 8 Remove the backup heater thermal protector sensor from the backup heater. 9 Remove the clip from the lower backup heater coupling. a Clip b Lower backup heater coupling c Backup heater 10 Separate the lower backup heater coupling. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 119 2 Install the lower backup heater coupling and install the clip. a Clip b Lower backup heater coupling c Backup heater INFORMATION Make sure that the back‑up heater pipe is fully inserted in the back‑up heater coupling. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 120 11 Install and restore all insulation. INFORMATION Take care NOT to damage the insulation during installation. 12 Open the valve (if equipped) of the water circuit towards the expansion vessel. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 121: Backup Heater Thermal Protector

    To perform a mechanical check of the backup heater thermal protector Prerequisite: Stop the unit operation via the user interface. Prerequisite: Turn OFF the respective circuit breaker. Prerequisite: Remove the required plate work, see "3.17 Plate work" [  230]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 122 82°C), measure the resistance between the backup heater thermal protector wires on terminal X7M: 5‑6. Result: The resistance MUST be 0  Ω (backup heater thermal protector contacts are closed). EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 123 To install the backup heater thermal protector 1 Install the backup heater thermal protector and new gasket on the backup heater. INFORMATION Make sure the gasket is correctly installed. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 124: Backup Heater Kit

     230]. 1 If the backup heater thermal protector has tripped: ▪ Sufficiently cool the sensor (7 K) ▪ Press the red button to reset the backup heater thermal protector EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 125 Prerequisite: Stop the unit operation via the user interface. Prerequisite: Turn OFF the respective circuit breaker. 1 Remove the 2 screws from the backup heater thermal protector bracket. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 126 2 Remove the backup heater thermal protector sensor from the backup heater. 3 Guid the backup heater thermal protector sensor and wiring through the grommet inside the switch box. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 127 1 Route the backup heater thermal protector sensor and wiring through the grommet of the switch box. 2 Insert the backup heater thermal protector sensor in the backup heater. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 128 2 screws. Is the problem solved? Action No further actions required. Return to the troubleshooting of the specific error and continue with the next procedure. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 129: Booster Heater

    Is the measured booster heater Action resistance correct? Return to "3.5.1 Checking procedures" [  129] of the booster heater and continue with the next procedure. Replace the booster heater, see "3.5.2 Repair procedures" [  132]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 130 5 Check the status in the Actuators menu of the user interface. This MUST be: ▪ Booster heater test = ON 6 Check if the field installed circuit breaker has tripped. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 131 3 With the Actuator test run still active, activate booster heater test. 4 Measure the voltage between the following terminals of the booster heater contactor. ▪ K3M: 1‑3 / 2‑4 The measured voltages MUST be 230 V AC ± 10%. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 132: Repair Procedures

    2 To install the booster heater, see "3.5.2 Repair procedures" [  132]. To install the booster heater 1 For the correct procedure, see the installation manual of the water tank. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 133: Booster Heater Thermal Protector

    80~90°C? Perform an electrical check of the booster heater thermal protector, see "3.6.1 Checking procedures" [  133]. Replace the booster heater thermal protector, see "3.6.2 Repair procedures" [  134]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 134: Repair Procedures

    4 Wait for - or create condition to operate the compressor. 5 Listen to the compressor when it tries to operate. Judge if a mechanical lock is present. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 135 3 Check that the compressor bolts are correctly fixed. Fix as needed. 4 Check that the compressor wire terminals cover is correctly installed and fixed. Correct as needed. 5 Check the compressor dampers for any damage. 1 Damper EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 136 3 Disconnect the Faston connectors from the compressor wire terminals U, V and W. INFORMATION Note the position of the Faston connectors on the compressor wire terminals to allow correct connection during installation. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 137 5 Measure the continuity of the U, V and W wires between the compressor and the PCB. If no continuity, correct as needed, see "6.2 Wiring diagram" [  314]. 6 Connect the Faston connectors to the compressor wire terminals U, V and W EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 138 DANGER: RISK OF ELECTROCUTION Confirm the rectifier voltage is below 10  V  DC before proceeding, see "To prevent electrical hazards" [  285]. 2 Remove the cover of the compressor wire terminals. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 139 Compressor insulation measurements Action are correct? Compressor is OK. Return to troubleshooting of the specific error and continue with the next procedure. Replace the compressor, see "3.7.2 Repair procedures" [  140]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 140: Repair Procedures

    2 Remove the compressor insulation from the compressor. 3 To install the compressor insulation, see "3.7.2 Repair procedures" [  140]. To install the compressor insulation 1 Install the insulation around the compressor. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 141 DANGER: RISK OF ELECTROCUTION Confirm the rectifier voltage is below 10  V  DC before proceeding, see "To prevent electrical hazards" [  285]. 2 Remove the cover of the compressor wire terminals. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 142 6 Wrap a wet rag around the components near the compressor pipes. Heat the brazing points of the compressor pipes using an oxygen acetylene torch and remove the refrigerant pipes from the compressor pipes using pliers. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 143  140]. To install the compressor 1 Check the state of the dampers. Replace if worn. 2 Install the 3 dampers in the correct location on the unit. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 144 8 Wrap a wet rag around the compressor pipes and any other components near the compressor and solder the compressor pipes to the refrigerant pipes. a Compressor pipe EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 145 "4.2.2  Repair procedures" [  291]. Is the problem solved? Action No further actions required. Return to the troubleshooting of the specific error and continue with the next procedure. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 146: Compressor Thermal Protector

    104~116°C). 6 Again measure the resistance between the pins 1‑2 of the connector of the compressor thermal protector. Result: The contact MUST be closed (measured resistance = 0 Ω). EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 147: Repair Procedures

    3 Remove the compressor thermal protector with bracket from the compressor housing. a Compressor thermal protector b Bracket c Compressor 4 Separate the compressor thermal protector and the compressor thermal protector bracket. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 148 Compressor thermal protector b Bracket c Compressor 3 Connect the compressor thermal protector to the intermediate connector. 4 Install new tie straps to fix the compressor thermal protector wiring harness. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 149: Expansion Valve

    It is highly recommended to perform a power reset after checking the valve using a magnet. Does the expansion valve open? Action Perform an electrical check of the expansion valve, see "3.9.1 Checking procedures" [  149]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 150 When reconnecting a connector to the PCB, make sure to connect it on the correct location and do NOT apply force, as this may damage the connector or connector pins of the PCB. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 151 Check that the valve is NOT bleeding. Result: There MUST be NO flow through the expansion valve. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 152: Repair Procedures

    It may be needed to turn the expansion valve coil 1/8 turn counter clockwise to unlock it. Make sure to note the correct orientation (position) of the expansion valve coil before removal. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 153 8 To install the expansion valve body, see "3.9.2 Repair procedures" [  152]. To install the expansion valve body 1 Remove the plugs or caps from the refrigerant piping and make sure they are clean. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 154 The expansion valve coil is equipped with a metal bracket. Fit the nipples of the metal bracket into the notches of the expansion valve body. CAUTION Make sure to install the expansion valve coil in the correct position (orientation). EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 155: Flow Switch

    3 Measure the voltage on the connector on the hydro PCB. Result: The measured voltage MUST be approximately 16 V DC. Is measured voltage correct? Then Continue with the next step. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 156: Repair Procedures

    O-ring is correctly installed and NOT damaged. 2 Route the flow switch harness into the switch box. 3 Connect the flow switch harness connector to the hydro PCB. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 157: High Pressure Switch

    High pressure switch protection control b Pressure c High pressure switch closed d High pressure switch open e High pressure switch operating pressure f High pressure switch reset pressure EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 158 High pressure switch is OK. Return to the troubleshooting of the specific error and continue with the next procedure. Replace the high pressure switch, see "3.11.2 Repair procedures" [  159]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 159: Repair Procedures

    To install the high pressure switch 1 Remove the plug or cap from the refrigerant piping and make sure it is clean. 2 Install the high pressure switch in the correct location. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 160: Hydro Pcb

    It is recommended to perform the checks in the listed order. To perform a power check of the hydro PCB Prerequisite: Stop the unit operation via the user interface. Prerequisite: Turn OFF the respective circuit breaker. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 161 Result: The measured voltage MUST be 230 V AC. Is the measured output voltage on the Action main PCB correct? Correct the wiring between the main PCB and the hydro PCB, see "6.2 Wiring diagram" [  314]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 162 1 Visit your local spare parts webbank. 2 Enter the model name of your unit and check if the installed spare part number corresponds with the spare part number indicated in the webbank. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 163 Prerequisite: First perform all earlier hydro PCB checks, see "3.12.1  Checking procedures" [  160]. 1 Measure the continuity of the fuse. If no continuity is measured, the fuse has blown. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 164: Repair Procedures

    1 Disconnect all connectors and the ground wire from the hydro PCB. 2 Carefully pull the hydro PCB and unlatch the PCB supports one by one using a small pliers. a PCB support b Hydro PCB EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 165 Prerequisite: Stop the unit operation via the user interface. Prerequisite: Turn OFF the respective circuit breaker. Prerequisite: Remove the required plate work, see "3.17 Plate work" [  230]. 1 Remove the fuse from the PCB. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 166 1 Install the fuse on the correct location on the PCB. CAUTION Make sure the fuse is plugged‑in correctly (contact with the fuse holder). a Fuse Is the problem solved? Action No further actions required. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 167: Low Pressure Switch

    7 Fill the refrigerant circuit with nitrogen until pressurized just below reset pressure of the low pressure switch. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 168: Repair Procedures

    Screw b Bracket c Clip 3 Disconnect the low pressure switch connector from the appropriate PCB. 4 Cut all tie straps that fix the low pressure switch harness. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 169 4 Wrap a wet rag around the low pressure switch and any other components near the low pressure switch and solder the low pressure switch pipe to the refrigerant pipe. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 170 10 Connect the low pressure switch connector to the appropriate PCB. 11 Perform a pressure test, see "4.2.1 Checking procedures" [  286]. 12 Add refrigerant refrigerant circuit, "4.2.2  Repair procedures" [  291]. Is the problem solved? Action No further actions required. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 171: Main Pcb

    Result: The measured voltage MUST be 230 V AC. 3 Measure the voltage on connector X99A on the main PCB. Result: The measured voltage MUST be 230 V AC. a LC b NC c Connector X99A EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 172 To check the HAP LED of the main PCB Prerequisite: First check the power supply to the main PCB, see "Checking procedures" [  171]. 1 Locate the HAP LED on the main PCB. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 173 Is the correct spare part for the PCB Action installed? Return to "Checking procedures" [  171] of the main PCB and continue with the next procedure. Replace the main PCB, see "Repair procedures" [  178]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 174 1 Measure the continuity of the fuse. If no continuity is measured, the fuse has blown. a Fuse Blown fuse on the main PCB? Action Replace the blown fuse, see "Repair procedures" [  178]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 175 If the rectifier voltage is OK, the diode module is OK. If rectifier voltage is NOT OK, replace the main PCB. Below procedure describes how to check the diode module itself. 2 Stop the unit operation via the user interface. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 176 6 If the diode module is NOT OK, replace the main PCB, see "Repair procedures" [  178]. To perform a power module check Prerequisite: First check the rectifier voltage of the main PCB, see "Checking procedures" [  171]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 177 When measuring on the front of the main PCB, make sure to locally remove the protective varnish with the test leads of the multi meter. 0.424 V 0.424 V 0.424 V 0.424 V 0.424 V 0.424 V EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 178 Heat sink cover screw b Heat sink cover c Wires LC, NC, U, V and W d PCB fixation screw e Main PCB 3 Disconnect all connectors from the main PCB. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 179 5 Install the heat sink cover. Close and slide it downwards to fix the 2 hooks. 6 Install and tighten the 3 screws so that the heat sink cover presses the refrigerant pipe. a Heat sink cover screw b Heat sink cover EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 180 For continued protection against risk of fire, replace only with same type and rating of fuse. 1 Install the fuse on the correct location on the PCB. CAUTION Make sure the fuse is plugged‑in correctly (contact with the fuse holder). EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 181: Single Fan Outdoor Unit - Three Phase

    Result: All measurements MUST be 400 V AC ± 10%. 4 Measure the voltage connectors X801A and X802A on the main PCB. Result: The measured voltages MUST be 230 V AC ± 10%. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 182 Result: All measurements MUST be 400 V AC ± 10%. 6 Measure the output voltage on connectors X601 and X602 on the noise filter PCB. Result: The measured voltages MUST be 230 V AC ± 10%. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 183 To check the HAP LED of the main PCB Prerequisite: First check the power supply to the main PCB, see "Checking procedures" [  181]. 1 Locate the HAP LED on the main PCB. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 184 To check the wiring of the main PCB Prerequisite: First perform all earlier main PCB checks, see "Checking procedures" [  181]. Prerequisite: Stop the unit operation via the user interface. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 185 To check the rectifier voltage of the main PCB Prerequisite: First perform all earlier main PCB checks, see "Checking procedures" [  181]. 1 Turn ON the power of the unit. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 186 PCB. Below procedure describes how to check the diode module itself. 2 Stop the unit operation via the user interface. 3 Turn OFF the respective circuit breaker. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 187 0.477 V 0.477 V 0.477 V 0.477 V 0.477 V 0.477 V Diode module V2R for fan circuit 1 Check the diode module in reference with the image and the table below. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 188 Power module V3R for compressor 1 Disconnect the compressor Faston connectors from the main PCB. 2 Check the power module V3R in reference with the image and the table below. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 189 CB- INFORMATION When measuring on the front of the main PCB, make sure to locally remove the protective varnish with the test leads of the multi meter. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 190 2 Remove (or flip over) the protective cover sheet. 3 Unplug the compressor U, V and W Faston connectors from the main PCB. 4 Unplug the L1C, L2C and L3C Faston connectors from the main PCB. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 191 3 Apply new thermal interface grease to the refrigerant pipe contact surface of the heat sink (on the main PCB). Distribute the grease as evenly as possible. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 192 8 Install and tighten the screws to fix the 2 ground wires to the PCB mounting plate. 9 Connect all connectors to the main PCB. 10 Connect the bridge connector. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 193 For continued protection against risk of fire, replace only with same type and rating of fuse. 1 Install the fuse on the correct location on the PCB. CAUTION Make sure the fuse is plugged‑in correctly (contact with the fuse holder). EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 194: Noise Filter Pcb

    3 Measure the output voltage of the noise filter PCB on the terminal X1M: 1‑2 and between LC and NC on the main PCB. Result: The measured voltages MUST be 230 V AC. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 195 Is the measured voltage correct? Action Return to "Checking procedures" [  194] of the PCB and continue with the next procedure. Adjust the power supply to the unit, see "4.1.2 Repair procedures" [  286]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 196 6 Cut all cable ties that fix cables to the main PCB mounting plate. 7 Loosen the screw to disconnect the ground wires from the main PCB mounting plate. 8 Remove all main PCB mounting plate fixation screws. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 197 Prerequisite: First check the power supply to the noise filter PCB, see "Checking procedures" [  194]. 1 Measure the voltage between the output wires LB‑NB of the noise filter PCB. The measured voltage MUST be 230 V AC. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 198 PCB installed? Return to "Checking procedures" [  194] of the noise filter PCB and continue with the next procedure. Replace the noise filter PCB, see "Repair procedures" [  200]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 199 1 Measure the continuity of the fuse. If no continuity is measured, the fuse has blown. a Fuse F1U b Fuse F2U c Fuse F3U d Fuse F4U EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 200  285]. 2 Remove the 3 screws from the main PCB heat sink cover. 3 Lift and pull the cover to remove it from the heat sink. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 201 12 Carefully pull the PCB at the side and unlatch the PCB supports one by one using a small pair of pliers. 13 Remove the noise filter PCB from the main PCB mounting plate. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 202 4 Remove the grease and apply new grease to the heat sink on the main PCB. CAUTION ALWAYS apply new grease on the PCB heat sink. NOT doing so may cause the PCB to fail due to insufficient cooling. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 203 11 Fix the cables to the main PCB mounting plate using new tie straps. Is the problem solved? Action No further actions required. Return to "Checking procedures" [  194] of the noise filter PCB and continue with the next procedure. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 204: Single Fan Outdoor Unit - Three Phase

    L1C b L2C c L3C d Connector X801A e Connector X802A f X1M: L1 g X1M: L2 h X1M: L3 i X1M: N EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 205  285]. 2 Remove the 2 screws from the main PCB heat sink cover. 3 Lift and pull the cover to remove it from the heat sink. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 206 Result: All measurements MUST be 400 V AC ± 10%. 10 Measure the voltage between each phase and NA on the noise filter PCB. Result: The measured voltages MUST be 230 V AC ± 10%. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 207 Prerequisite: First check the power supply to the noise filter PCB, see "Checking procedures" [  204]. 1 Measure the voltage between output wires L1B‑L2B‑L3B on the noise filter PCB. Result: All measurements MUST be 400 V AC ± 10%. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 208 Is the correct spare part for the noise Action filter PCB installed? Return to "Checking procedures" [  204] of the noise filter PCB and continue with the next procedure. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 209 Prerequisite: First perform all earlier checks of the noise filter PCB, see "Checking procedures" [  204]. 1 Measure the continuity of the fuse. If no continuity is measured, the fuse has blown. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 210  204] of the noise filter PCB and continue with the next procedure. Problem solved? After all checking procedures listed above have been performed: Is the problem solved? Action No further actions required. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 211  285]. 2 Remove the 2 screws from the main PCB heat sink cover. 3 Lift and pull the cover to remove it from the heat sink. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 212 PCB on the back side is easily accessible. CAUTION The noise filter PCB is still connected. Do NOT completely remove the main PCB mounting plate. 8 Disconnect all Faston connectors from the noise filter PCB. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 213 13 To install the new noise filter PCB, see "Repair procedures" [  211]. To install the noise filter PCB 1 Install the noise filter PCB on its correct location. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 214 7 Install the heat sink cover. Close and slide it downwards to fix the 2 hooks. 8 Install and tighten the 2 screws so that the heat sink cover presses the refrigerant pipe. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 215 Prerequisite: Stop the unit operation via the user interface. Prerequisite: Turn OFF the respective circuit breaker. Prerequisite: Remove the required plate work, see "3.17 Plate work" [  230]. 1 Remove the fuse from the PCB. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 216 For continued protection against risk of fire, replace only with same type and rating of fuse. 1 Install the fuse on the correct location on the PCB. CAUTION Make sure the fuse is plugged‑in correctly (contact with the fuse holder). EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 217: Outdoor Unit Fan Motor

    1 If propeller fan blade touches the bellmounth, check if the fan motor is correctly mounted on its base, see "Repair procedures" [  220]. 2 Check the state of the propeller fan blade assembly for damage, deformations and cracks. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 218 The DC fan motor connector MUST be plugged into the appropriate PCB. 5 Confirm via the service monitoring tool that the DC fan motor assembly receives an ON signal. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 219 14 Manually (slowly) rotate the fan blade propeller 1 turn and measure the voltage on the DC fan motor connector pins 4-1. Result: 4 pulses MUST be measured. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 220 Repair procedures To remove the propeller fan blade assembly Prerequisite: Stop the unit operation via the user interface. Prerequisite: Turn OFF the respective circuit breaker. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 221  285]. 2 Disconnect the DC fan motor connector X106A from the main PCB. a DC fan motor connector X106A b DC fan motor harness c Wire clamp EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 222 3 Route the DC fan motor harness through the opening in the partition plate. 4 Route the DC fan motor harness through the harness retainers and bend the harness retainers to attach the DC fan motor harness. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 223 Do NOT install a damaged propeller fan blade assembly. 2 Install and tighten the nut to fix the propeller fan blade assembly. a Nut b Propeller fan blade assembly EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 224: Three Phase Outdoor Unit

    Is the DC fan motor shaft friction Action normal? Perform an electrical check of the DC fan motor assembly, see "Checking procedures" [  224]. Replace the DC fan motor assembly, see "Repair procedures" [  226]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 225 Replace the DC fan motor, see "Repair procedures" [  226]. Problem solved? After all checking procedures listed above have been performed: Is the problem solved? Action No further actions required. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 226 Confirm the rectifier voltage is below 10  V  DC before proceeding, see "To prevent electrical hazards" [  285]. 2 Disconnect the DC fan motor connector X108A from the main PCB. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 227 Harness retainer c Opening in partition plate d Screw e DC fan motor assy 8 Guide the DC fan motor harness though the opening in the partition plate. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 228 Tie up the excessive DC fan motor harness using the tie straps to avoid the harness from being cut by the propeller fan blade. 5 Route the DC fan motor harness through the ferrite core and lock the ferrite core. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 229 1 Install the propeller fan blade assembly on the DC fan motor assembly. CAUTION Do NOT install a damaged propeller fan blade assembly. 2 Install and tighten the nut to fix the propeller fan blade assembly. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 230: Plate Work

    If required also remove the hydrobox for easier access. 3.17.1 To remove the discharge grille 1 Remove the screws (4x). 2 Unhook the discharge grille from the outdoor unit. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 231: To Open The Outdoor Unit

    DANGER: RISK OF BURNING/SCALDING 4× 3.17.3 To remove the top plate INFORMATION This procedure is just an example and may differ on some details for your actual unit. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 232: To Remove The Switch Box

    2 Remove the protective cover sheet. 3 Disconnect the electrical power supply wiring from the wire terminal. 4 Disconnect the Faston connectors (power supply towards hydro box) from the wire terminal. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 233 13 Route the 4‑way valve and high pressure switch wiring harness through the holes towards the back side of the switch box. 14 Remove all wiring from the wire clips on the back side of the switch box. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 234 20 Remove the 4 switch box fixation bolts. 21 Lift the switch box to unhook it from the retainers and remove the switch box from the unit. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 235 Intermediate connector (power supply wiring) d Screw (ground wire) 7 Remove the bolt to disconnect the service port from the switch box. 8 Disconnect the indicated connectors from the main PCB. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 236 CAUTION Take care that the thermal interface grease (applied on the heat sink) does NOT smear everything. 19 To install the switch box, see "3.17 Plate work" [  230]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 237: To Install The Switch Box

    8 Route the wiring inside the wire clips on the back side of the switch box and route them through the hole (right upper side of switch box) towards the front of the switch box. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 238 12 Connect the compressor thermal protector connector. 13 Connect the compressor wiring to the main PCB using the screws. 14 Route the DC fan motor harness inside the wire clip on the switch box. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 239 21 Install the protective cover sheet. Three phase unit 1 Use a piece of cloth to remove the old thermal interface grease and clean the heat sink surface(s) and refrigerant pipe. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 240 Install the heat sink cover. 6 Install the 2 bolts on the heat sink cover and tighten the bolts. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 241: To Close The Outdoor Unit

    17 Install the protective cover sheet. 3.17.6 To close the outdoor unit NOTICE Speed nut. Make sure the speed nut for the top screw is correctly attached to the service cover. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 242: To Install The Discharge Grille

    4 N • m 3.18 Reactor INFORMATION Procedures are ONLY for reactors of the single phase outdoor unit. NO procedures available for reactors of the 3‑phase outdoor unit. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 243: Checking Procedures

    L2R c L3R d Measuring point e Measuring point Is the resistance measurement correct? Action Proceed with the next step. Replace the reactor, see "3.18.2 Repair procedures" [  244]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 244: Repair Procedures

    2 Connect a pressure gauge to the gas service port. Read the pressure. 3 Using the graphic below, determine the expected sensor output voltage based on the pressure obtained in the previous step. -0.5 -0.5 EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 245 4 Measure the voltage on X17A: pins 1–3 (= refrigerant pressure sensor output signal). 5 Check that the measured voltage is in line with the expected voltage through the read refrigerant pressure. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 246: Repair Procedures

    Heat the brazing point of the refrigerant pressure sensor pipe using an oxygen acetylene torch and remove the refrigerant pressure sensor pipe from the refrigerant pipe using pliers. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 247 4 Wrap a wet rag around the refrigerant pressure sensor and any other components near the pressure sensor and solder the refrigerant pressure sensor pipe to the refrigerant pipe. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 248: Thermistors

    To perform a mechanical check of the specific thermistor Prerequisite: Stop the unit operation via the user interface. Prerequisite: Turn OFF the respective circuit breaker. Prerequisite: Remove the required plate work, see "3.17 Plate work" [  230]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 249 4 Determine the thermistor resistance that matches the measured temperature. Thermistor – Table A T °C kΩ T °C kΩ T °C kΩ T °C kΩ –20 197.81 39.96 10.63 3.44 EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 250 7.131 618.9 96.13 21.37 6.181 478.8 78.29 18.06 5.374 373.1 64.1 15.33 4.686 292.9 52.76 13.06 4.098 231.4 43.63 11.17 3.594 184.1 36.26 9.585 3.161 147.4 30.27 8.254 EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 251 - Cut the tie straps that fix the insulation and the thermistor wire. - Cut and remove the insulation. - Pull the clip that fixes the thermistor. - Remove the thermistor from the thermistor holder. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 252 ▪ Remove all other thermistors wired to the connector from their thermistor holder, ▪ Disconnect the thermistor connector from the appropriate PCB, ▪ Remove the complete set of thermistors. 6 To install the thermistor, see "Repair procedures" [  251]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 253 Thermistor holder d Insulation e Thermistor wire f Tie strap 2 Route the thermistor harness towards the appropriate PCB. 3 Connect the thermistor connector to the appropriate PCB. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 254: Water Side Thermistors

    (thermal contact between the thermistor and the piping)? Perform an electrical check of the specific thermistor, see "Checking procedures" [  254]. Correctly install the thermistor, see "Repair procedures" [  258]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 255 (ONLY with tank optional EKHWP domestic hot water tank domest installed) ic hot water tank EKHWS or third party domest ic hot water tank: B EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 256 4.87 62.54 15.43 4.70 59.43 14.79 4.54 56.49 14.18 4.38 53.71 13.59 4.23 51.09 13.04 4.08 48.61 12.51 3.94 46.26 12.01 3.81 44.05 11.52 3.68 41.95 11.06 3.56 EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 257 Does the measured resistance of the Then thermistor match with the temperature determined resistance? Thermistor is OK. Return to the troubleshooting of the specific error and continue with the next procedure. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 258 Prerequisite: Remove the required plate work, see "3.17 Plate work" [  230]. 1 Locate the thermistor that needs to be removed. 2 Cut the tie straps that fix the insulation and the thermistor wire. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 259 To install the thermistor 1 Pull the clip and install the thermistor in the specific thermistor holder. Make sure the clip is in the correct position (blocking the thermistor). EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 260 4 If connected to an intermediate connector, connect the thermistor connector to the intermediate connector. If directly connected to the PCB, connect the thermistor connector to the appropriate PCB. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 261: Other Thermistors

    2 Measure the temperature using a contact thermometer. Name Symbol Location Connector Unit Referen (PCB) (pins) terminal (wires) (table) External Hydro X22A: 1‑2 X5M: 8-7 indoor or outdoor ambient thermistor EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 262 5 Measure the resistance between the appropriate pins of the thermistor. 6 Check that the measured resistance value matches the resistance determined through the measured temperature (earlier step in the procedure). E.g. R6T thermistor: EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 263 To perform a mechanical check of the fin thermistor Prerequisite: Stop the unit operation via the user interface. Prerequisite: Turn OFF the respective circuit breaker. 1 Remove the required plate work, see "3.17 Plate work" [  230]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 264 31.50 8.71 2.91 –14 139.94 30.06 8.37 2.82 –13 132.28 28.70 8.05 2.72 –12 125.09 27.41 7.75 2.64 –11 118.34 26.18 7.46 2.55 –10 111.99 25.01 7.18 2.47 EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 265 Thermistor is OK. Return to the troubleshooting of the specific error and continue with the next procedure. Replace the specific PCB, see "3 Components" [  86]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 266: User Interface

    Glass cracks, shaved corner of glass, surplus glass. Does the remote controller user Action interface function correctly? Return to the troubleshooting of the specific error and continue with the next procedure. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 267 Correct the wiring as needed. Is the problem solved? Action No further actions required. Return to the troubleshooting of the specific error and continue with the next procedure. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 268: Repair Procedures

    1 Turn ON the power of the unit. 2 Activate Installer on the user interface. See the installer reference guide for the correct procedure. 3 Go to Actuator test run via the user interface. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 269 X34A. Measure the continuity of the wiring harness. Is continuity of the wiring harness Action correct? Replace the water flow sensor, see "3.22.2 Repair procedures" [  270]. Replace the water flow sensor harness, "3.22.2 Repair procedures" [  270]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 270: Repair Procedures

    3 Loosen the water flow sensor connector nut. a Water flow sensor connector nut b Clip c Water flow sensor 4 Unplug the water flow sensor harness from the water flow sensor. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 271 Make sure to open the valve (if equipped) towards the expansion vessel, otherwise the overpressure will be generated. 9 Open the stop valves and add water to the water circuit if needed, see "4.3.2 Repair procedures" [  302]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 272: Water Pressure Sensor

    3 Using the graphic below, determine the expected sensor output voltage based on the measured pressure. 0 0.5 a Pressure (bar) b Output voltage (V) V DC Detected pressure (bar) 0.00 0.13 0.26 0.40 0.53 0.66 0.80 0.93 1.06 1.20 EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 273 The measured voltage is inside the Action expected range? Water pressure sensor is OK. Return to the troubleshooting of the specific error and continue with the next procedure. Continue with the next step. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 274: Repair Procedures

    2 Disconnect the other end of the wiring harness from the connector X7Y. 3 Cut all tie straps that fix the wiring harness, and remove the wiring harness from the unit. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 275 To install the water pressure sensor 1 Check that a new O-ring is installed on the water pressure sensor. 2 Screw the water pressure sensor in the coupling piece. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 276: Water Pump

    To perform a mechanical check of the water pump Prerequisite: Stop the unit operation via the user interface. Prerequisite: Turn OFF the respective circuit breaker. Prerequisite: Remove the required plate work, see "3.17 Plate work" [  230]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 277 When the water pump is active and the connector PWM is disconnected from the PCB, the water pump motor will run at full speed. 6 Check if the pump is working (by listening or by touching the pump). EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 278 (duty cycle) is disproportional to the water pump speed (flow rate) in the range of 10% to 84% and the speed (flow rate) remains at its maximum value when the PWM signal (duty cycle) is below 10%. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 279: Repair Procedures

    Prerequisite: Stop the unit operation via the user interface. Prerequisite: Turn OFF the respective circuit breaker. Prerequisite: Remove the required plate work, see "3.17 Plate work" [  230]. 1 Disconnect the connectors from the water pump motor. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 280 Make sure to correctly install the water pump motor and the seal. Fix the water pump motor by tightening the 4 bolts. 2 Connect the connectors to the water pump motor. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 281 4 Remove the water pump housing. 5 To install the water pump housing, see "3.24.2 Repair procedures" [  279]. To install the water pump housing 1 Install the water pump housing in the correct location. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 282 2 Disconnect the other end of the wiring harness from the appropriate connector: ▪ X16A on hydro PCB for power supply wiring harness ▪ X25A on hydro PCB for PWM signal wiring harness EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 283 3 Fix the wiring harness using new tie straps. Is the problem solved? Action No further actions required. Return to the troubleshooting of the specific error and continue with the next procedure. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 284: Third Party Components

    Is the power supply conform with the Action regulations? Return to the troubleshooting of the specific error and continue with the next procedure. Adjust the power supply, see "4.1.2 Repair procedures" [  286]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 285 Correct the wiring as needed. Is the problem solved? Action No further actions required. Return to the troubleshooting of the specific error and continue with the next procedure. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 286: Repair Procedures

    It is recommended to perform the checks in the listed order. To check if the stop valves are open Prerequisite: Remove the required plate work, see "3.17 Plate work" [  230]. 1 Remove the caps. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 287 (dirt or ice build up in case of humidity in the system). EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 288 Low pressure rises with lowering compressor output. Operating frequency To maintain low pressure, operating frequency increases on the capacity control. (Degree of overcharge) Proper amount Further overcharge EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 289 (refrigerant shortage). Operating frequency To maintain low pressure, operating frequency decreases on the capacity control. (Degree of shortage) Higher degree of Proper amount shortage EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 290 Return to the troubleshooting of the specific error and continue with the next procedure. To perform a pressure test of the refrigerant circuit 1 Perform a pressure test in line with local legislation. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 291: Repair Procedures

    2 Completely open the stop valves by screwing the stop valve screw counterclockwise. Is the problem solved? Action No further actions required. Return to the troubleshooting of the specific error and continue with the next procedure. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 292 Compatible with the refrigerant to be recovered Scale Read-out / 10 grams Manifold Compatible with the refrigerant to be recovered Flexible hoses Compatible with the refrigerant to be recovered EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 293 Liquid service port b Gas service port c Flexible hose d Manifold e Recovery unit f Vacuum pump g Scale h Recovery cylinder i Vacuum setup j Internal service port EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 294 If you get confused in the middle of the process, press BS1 to return to the default situation. Before recovering refrigerant, activate the recovery mode as follows: Action 7-LEDs display H1P H2P H3P H4P H5P H6P H7P Start from the default situation. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 295 Before recovering refrigerant, make sure the electronic expansion valves are open. When power is ON, this has to be done by using the recovery mode. Components To activate/deactivate the recovery mode, you need the following components: EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 296 Change the value to 2. Press BS2 once. Enter the value in the system. Press BS3 once. Confirm. Press BS3 once. Return to the default situation. Press BS1 once. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 297 1 See the installer reference guide for the correct procedure. Is the problem solved? Action No further actions required. Perform a pressure test of the refrigerant circuit, see "4.2.1 Checking procedures" [  286]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 298 5 Check the manifold if vacuum is reached. Close the gas stop valve and stop forced cooling operation. Refrigerant piping repair ▪ Make sure to cover open pipe ends during repair so no dust or moisture can enter. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 299: Water Circuit

    2 Read the water pressure on the home screen of the user interface. Result: The pressure MUST be 1~2 bar. Is the water pressure correct? Action Return to the troubleshooting of the specific error and continue with the next procedure. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 300 1 The stop valves are located outside the unit. Check that all valves are in open position (in line with the piping). All valves are open? Action Return to the troubleshooting of the specific error and continue with the next procedure. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 301 (underfloor heating, radiators, …) are shut‑off (e.g. for anti‑freeze function). a By‑pass b Underfloor heating (cooling) circuit c Radiators circuit d Indoor or outdoor unit e Space heating (cooling) water circuit EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 302: Repair Procedures

    MUST be programmed as such that it ONLY works when the water pump of the unit is off. See the specific dealer manual of the external pump for this procedure. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 303 3 Open the drain valve to drain water from the water circuit. Collect the drained water in a drain pan, bottle,…. a Drain valve 4 To add water to the water circuit, see "4.3.2 Repair procedures" [  302]. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 304 1 Place the air purge valve, installed inside the unit, in the open position by turning it clockwise. INFORMATION If a backup heater kit is installed, place the air purge valve of the backup heater kit in the open position. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 305 3 See the installer reference guide for the correct air purge procedure. Is the problem solved? Action No further actions required. Return to the troubleshooting of the specific error and continue with the next procedure. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 306 1 Repair the leak in the water circuit. Is the problem solved? Action No further actions required. Return to the troubleshooting of the specific error and continue with the next procedure. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 307: Manufacturer Components

    Business Portal. INFORMATION If the outdoor temperature is outside the range of operation, the unit may NOT operate or may NOT deliver the required capacity. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 308 Adjust as needed. Is the problem solved? Action No further actions required. Return to the troubleshooting of the specific error and continue with the next procedure. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 309: Maintenance

    2 Unscrew the bottom cap. a Shut‑off valve b Bottom cap 3 Pull the filter out of the shut‑off valve. 4 Clean the filter with water and a soft brush. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 310 8 Make sure that the air purge valves are in the open position. Is the problem solved? Action No further actions required. Return to the troubleshooting of the specific error and continue with the next procedure. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 311: To Check The Pipe Heaters

    Below is an overview of the different pipe heaters and technical data. Also check "6.2 Wiring diagram" [  314] for more information. d + e a E6H b E9H c E10H d E11H e E12H EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 312 Power supply Power Resistance Current voltage 230 V AC 50 W 970 Ω 0.23 A 230 V AC 50 W 970 Ω 0.23 A E10H 230 V AC 16.6 W 3300 Ω 0.07 A E11H 230 V AC 33 W 1600 Ω 0.15 A E12H 230 V AC 33 W 1600 Ω 0.15 A EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 313: Technical Data

    See the installer reference guide on business portal for more information. 6.1.2 Detailed information setting mode: Remote controller See the installer reference guide on business portal for more information. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 314: Wiring Diagram

    (1) Connection diagram (1) Connection diagram 3 wire type SPDT 3 wire type SPDT Booster heater power supply Booster heater power supply Compressor switch box Compressor switch box EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 315 Terminal (field wiring for DC) Terminal (integrated backup heater power supply) X10M Terminal (high voltage Smart Grid) Earth wiring Field supply Several wiring possibilities Option Wiring depending on model Switch box EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 316 * Thermal protector booster heater # Safety thermostat Q*DI # Earth leakage circuit breaker R1H (A2P) * Humidity sensor R1T (A2P) * Ambient sensor of the ON/OFF thermostat EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 317 Options: ON/OFF output Power limitation digital inputs: 12 V Power limitation digital inputs: DC / 12 mA detection (voltage supplied 12 V DC / 12 mA detection (voltage by PCB) supplied by PCB) EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 318 (7) External On/OFF thermostats and (7) External ON/OFF thermostats and heat pump convector heat pump convector Additional LWT zone Additional leaving water temperature zone Main LWT zone Main leaving water temperature zone EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 319 Hydro switch box 2 (right side) SWB3 Hydro switch box 3 (behind SWB2) (4) Legend (4) Legend *: Optional; #: Field supply Main PCB * Digital I/O PCB * Demand PCB EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 320 * Terminal strip (booster heater power supply) # Terminal strip (power supply at client side) Terminal strip (integrated backup heater power supply) X10M * Terminal (high voltage Smart Grid) Connector Terminal strip EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 321 2 core Power limitation demand input 3 A8P: X801M: 3-5 X5M: 15-16 A11P: X1B: 1-2 signal 2 core Power limitation demand input 4 A8P: X801M: 4-5 signal 4D128841B EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 322 The diagrams shown in this manual may be incorrect due to changes/updates to the unit. Correct diagrams are supplied with the unit and can also be found in the technical data book. Front Rear 4D124072B EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 323 The diagrams shown in this manual may be incorrect due to changes/updates to the unit. Correct diagrams are supplied with the unit and can also be found in the technical data book. Front Rear 4D124072B EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 324 PCB) for safety for HP tarrif thermostat Power limitation digital inputs: 12 V DC / 12 mA detection (voltage supplied by PCB) 4D124072C Only for demand PCB option EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 325 -t° (indoor or Only for EB/DLA*DA* Only for EB/DLA*DA* For external outdoor) and EWA/Y*DA*-H- and EWA/Y*DA*-H- BUH option Remote 4D124072C Only for *DAV3/DAW1 user interface EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 326 SWB 1 X9M L N PE SWB 1 SWB2 Q1DI Q1DI 1N~ or 3~ 50 Hz 1N~, 50 Hz L/L1 N/L2 230 V AC 230 V AC 4D124072A EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 327 Correct diagrams are supplied with the unit and can also be found in the technical data book. SWB1 SWB2 SWB2 SWB3 For internal For external BUH model BUH option 4D124072A EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 328 Correct diagrams are supplied with the unit and can also be found in the technical data book. A11P X5M.11 P1P2 X5M.12 X5M.16 X5M.15 WLAN SD CARD Cartridge SW3 SW4 SW5 WLAN UART Interface Debug UART Interface 4D124072A EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 329 X15M - t° Q3DI Q3DI X15M OUTDOOR Hydro X14M X14M 3N~ , 400V , 6kW or 9kW 1N~ , 230V , 3kW or 6kW BUH Option (EKLBUHCB6W1) 4D124072A EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 330 The diagrams shown in this manual may be incorrect due to changes/updates to the unit. Correct diagrams are supplied with the unit and can also be found in the technical data book. X14M X15M EKLBUHCB6W1 4D124072A EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 331: Piping Diagram

    R5T Air heat exchanger, middle s Heat exchanger t Service port 5/16" flare Refrigerant flow: u Accumulator Heating v Muffler Cooling Connections: Screw connection Flare connection Quick coupling Brazed connection EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 332 R5T Air heat exchanger, middle r Heat exchanger s Service port 5/16" flare Refrigerant flow: t Accumulator Heating u Muffler Cooling Connections: Screw connection Flare connection Quick coupling Brazed connection EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 333: Component Overview

    Water outlet z Plate type heat exchanger m Water inlet aa Gas stop valve with service port n Refrigerant liquid thermistor R3T ab Liquid stop valve with service port EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 334 Compressor M1C e Suction thermistor R3T l Expansion valve (main) Y1E f Low pressure switch S1PL m Compressor thermal protector g Refrigerant pressure sensor S1NPH n Service port EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 335: Component Overview: Single Phase Without Backup Heater

    Gas stop valve with service port l Inlet water thermistor R4T y Liquid stop valve with service port m Outlet water after plate type heat exchanger thermistor R1T EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 336 Compressor M1C e Suction thermistor R3T l Expansion valve (main) Y1E f Low pressure switch S1PL m Compressor thermal protector g Refrigerant pressure sensor S1NPH n Service port EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 337: Component Overview: Three Phase With Backup Heater

    Water outlet z Plate type heat exchanger m Water inlet aa Gas stop valve with service port n Refrigerant liquid thermistor R3T ab Liquid stop valve with service port EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 338 Compressor M1C e Suction thermistor R3T l Expansion valve (main) Y1E f Low pressure switch S1PL m Compressor thermal protector g Refrigerant pressure sensor S1NPH n Service port EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 339: Component Overview: Three Phase Without Backup Heater

    Gas stop valve with service port l Inlet water thermistor R4T y Liquid stop valve with service port m Outlet water after plate type heat exchanger thermistor R1T EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 340 Compressor M1C e Suction thermistor R3T l Expansion valve (main) Y1E f Low pressure switch S1PL m Compressor thermal protector g Refrigerant pressure sensor S1NPH n Service port EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 341: Component Overview: Backup Heater Kit

    Backup heater contactor K1M i Switch box d Backup heater contactor K5M j Outlet water after backup heater thermistor R2T e Overcurrent fuse F1B k Backup heater f Terminal strip X15M EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 342: Field Information Report

    Technical data 6.5 Field information report See next page. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 343 In case a problem occurred on the unit which could not be resolved by using the content of this service manual or in case you have a problem which could be resolved but of which the manufacturer should be notified, we advise you to contact your distributor.
  • Page 344 Application information Application (house, apartment, office,…): New project or reimbursement: Heat emitters (radiators / under floor heating / fan coils /…): Hydraulic layout (simple schematic): Unit / Installation information Model name: Serial number: Installation / commissioning date: Software version hydro PCB A1P Software version hydro PCB A5P Software version user interface: Software version outdoor PCB:...

  • Page 345: Service Tools

    3 Click the button Service tools. An overview of the available service tools for the different products is shown. Also additional information on the service tools (instruction, latest software) can be found here. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...

  • Page 346: Field Settings

    Technical data 6.7 Field settings See next page. EBLA09~16DA + EDLA09~16DA Service manual Daikin Altherma 3 M ESIE20-06A – 2021.03...
  • Page 347 1/11 0221 Field settings table [8.7.5] = ..Applicable units EDLA09DA3V3 EDLA11DA3V3 EDLA14DA3V3 EDLA16DA3V3 EBLA09DA3V3 EBLA11DA3V3 EBLA14DA3V3 EBLA16DA3V3 EDLA09DAV3 EDLA11DAV3 EDLA14DAV3 EDLA16DAV3 EBLA09DAV3 EBLA11DAV3 EBLA14DAV3 EBLA16DAV3 EDLA09DA3W1 EDLA11DA3W1 EDLA14DA3W1 EDLA16DA3W1 EBLA09DA3W1 EBLA11DA3W1 EBLA14DA3W1 EBLA16DA3W1 EDLA09DAW1 EDLA11DAW1 EDLA14DAW1 EDLA16DAW1 EBLA09DAW1 EBLA11DAW1 EBLA14DAW1 EBLA16DAW1 Notes...
  • Page 348 2/11 Installer setting at variance with Field settings table default value Breadcrumb Field code Setting name Range, step Date Value Default value Room └─ Antifrost 1.4.1 [2-06] Room frost protection 0: Disabled 1: Enabled 1.4.2 [2-05] Room antifrost temperature 4~16°C, step: 1°C 8°C └─...
  • Page 349 3/11 Installer setting at variance with Field settings table default value Breadcrumb Field code Setting name Range, step Date Value Default value [0-06] High ambient temp. for LWT add zone cooling WD curve. 25~43°C, step: 1°C 35°C [0-07] Low ambient temp. for LWT add zone cooling WD curve. 10~25°C, step: 1°C 20°C Additional zone...
  • Page 350 4/11 Installer setting at variance with Field settings table default value Breadcrumb Field code Setting name Range, step Date Value Default value [6-08] Hysteresis 2~20°C, step: 1°C 10°C Setpoint mode 0: Fixed 1: Weather dependent └─ WD curve [0-0B] Leaving water value for high ambient temp. for DHW WD curve. 35~[6-0E]°C, step: 1°C 55°C [0-0C]...
  • Page 351 5/11 Installer setting at variance with Field settings table default value Breadcrumb Field code Setting name Range, step Date Value Default value [0-02] High ambient temp. for LWT add zone heating WD curve. 10~25°C, step: 1°C 15°C [0-03] Low ambient temp. for LWT add zone heating WD curve. -40~5°C, step: 1°C -10°C [0-04]...
  • Page 352 6/11 Installer setting at variance with Field settings table default value Breadcrumb Field code Setting name Range, step Date Value Default value 9.8.4 [D-01] Benefit kWh power supply 0: No 1: Active open 2: Active closed 3: Smart grid 9.8.6 Allow electric heaters 0: No 1: Yes...
  • Page 353 7/11 Installer setting at variance with Field settings table default value Breadcrumb Field code Setting name Range, step Date Value Default value [0-0B] Leaving water value for high ambient temp. for DHW WD curve. 35~[6-0E]°C, step: 1°C 55°C [0-0C] Leaving water value for low ambient temp. for DHW WD curve. 45~[6-0E]°C, step: 1°C 55°C [0-0D]...
  • Page 354 8/11 Installer setting at variance with Field settings table default value Breadcrumb Field code Setting name Range, step Date Value Default value [4-02] Below which outdoor temperature is heating allowed? 14~35°C, step: 1°C with BUH: 35°C without BUH: 25°C [4-03] Operation permission of the booster heater.
  • Page 355 9/11 Installer setting at variance with Field settings table default value Breadcrumb Field code Setting name Range, step Date Value Default value [7-05] Boiler efficiency 0: Very high 1: High 2: Medium 3: Low 4: Very low [7-06] HP Forced OFF 0: Disabled 1: Enabled [7-07]...
  • Page 356 10/11 Installer setting at variance with Field settings table default value Breadcrumb Field code Setting name Range, step Date Value Default value [D-00] Which heaters are permitted if prefer. kWh rate PS is cut? 0: None 1: BSH only 2: BUH only 3: All heaters [D-01] Contact type of preferential kWh rate PS installation?
  • Page 357 11/11...
