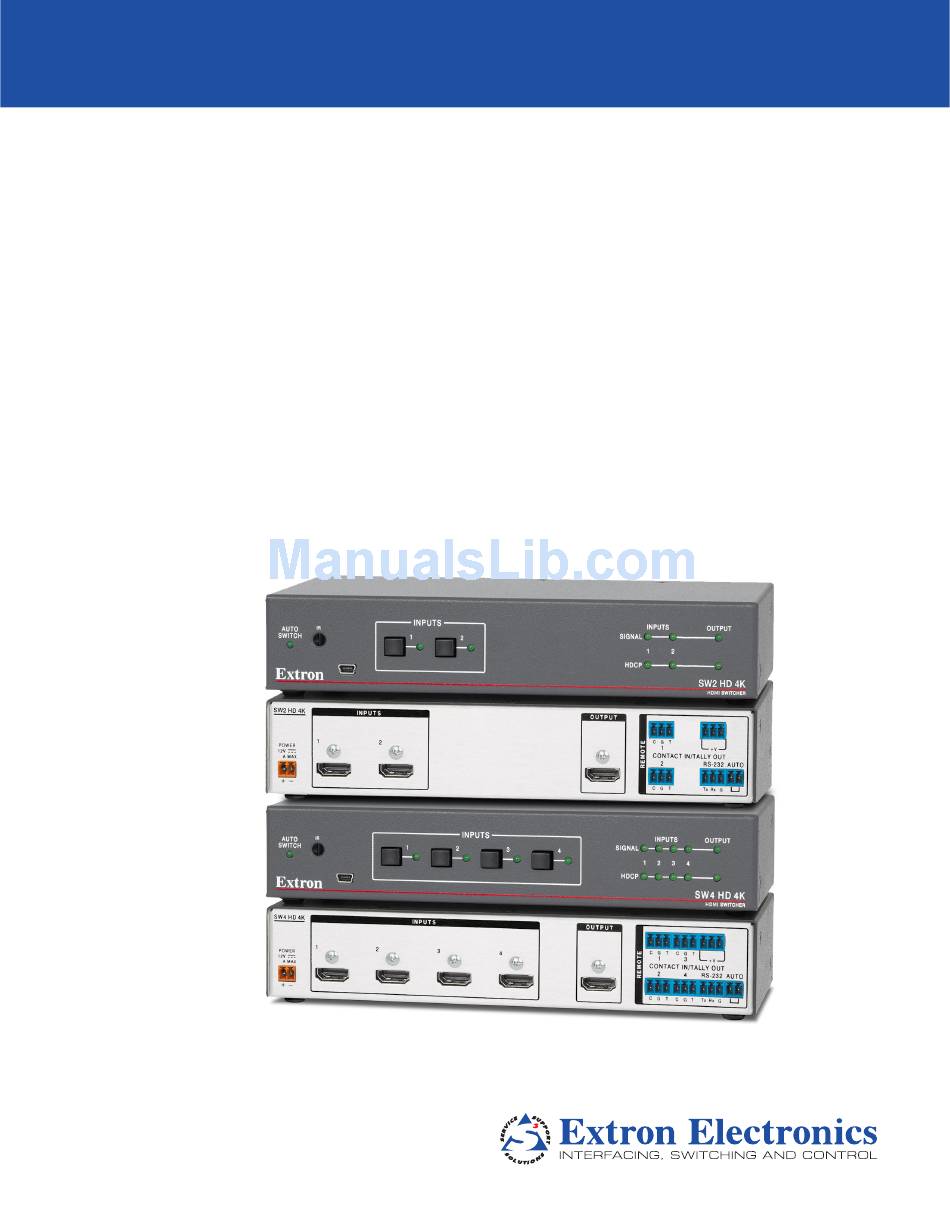

- Page 1 User Guide HDMI Switchers SW HD 4K Series HDMI Switchers 68-2884-01 Rev. B 03 16...
-
Page 2: Safety Instructions
Safety Instructions Safety Instructions • English Инструкция по технике безопасности • Русский WARNING: This symbol, , when used on the product, is intended to ПРЕДУПРЕЖДЕНИЕ: Данный символ, , если указан alert the user of the presence of uninsulated dangerous voltage within the на... -
Page 3: Regulatory Compliance
“Extron Safety and Regulatory Compliance Guide” on the Extron website. Copyright © 2016 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks ®... -
Page 4: Conventions Used In This Guide
Conventions Used in this Guide Notifications The following notifications are used in this guide: CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessure mineure. ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information. TIP: A tip provides a suggestion to make working with the application easier. -
Page 5: Table Of Contents
............1 Using Simple Instruction Set (SIS) Commands .. 17 About this Guide ..........1 Host-to-switcher Communications ....17 About the SW HD 4K Series Switchers ....1 Switcher-initiated Messages ......17 Features ............. 1 Error Responses ........... 18 Application Diagram ........... 2 Symbol Definitions ........ -
Page 6: Introduction
This guide describes the SW HD 4K Series switchers and discusses how to install, configure, and operate them. In this guide, the terms “SW HD 4K Series” and “SW HD 4K” refer to the SW2 HD 4K and SW4 HD 4K switchers. -
Page 7: Application Diagram
IP Link Pro Control 4K HDMI Switcher Proceesor Ethernet TCP/IP Network P PR -2 3 ITAL L LY /T A IR/S T IN Ethernet RS-232 HDMI 0 .2 HDMI 4K Display 4K Media Player Laptop DSS Receiver SW HD 4K Series • Introduction... -
Page 8: Installation
Installation This section describes the installation and setup of the SW HD 4K Series switchers. Topics include: • Installation Overview • Rear Panel Features • Wiring the Power Connector • Wiring for RS‑232 Control and Auto Switching Connecting to the USB Port •... -
Page 9: Rear Panel Features
NOTE: The EDID information is also read and stored whenever power is recycled to the connected output device or when the output device is replaced. SW HD 4K Series • Installation... -
Page 10: Wiring The Power Connector
Slide the leads into the supplied 2-pole captive screw plug and secure them, using a small screwdriver. To verify the power cord polarity before connecting the plug, connect the power supply with no load and check the output with a voltmeter. SW HD 4K Series • Installation... - Page 11 La longueur idéale est de 5 mm (3/16 inches). S’ils sont un peu plus longs, les câbles exposés pourraient se toucher et provoquer un court circuit. S’ils sont un peu plus courts, ils pourraient sortir, même s’ils sont attachés par les vis captives. SW HD 4K Series • Installation...
-
Page 12: Wiring For Rs-232 Control And Auto Switching
NOTE: If you use cable that has a drain wire, tie the drain wire to ground at both ends. Ground (G) Receive (Rx) Transmit (Tx) Transmit (Tx) Receive (Rx) Computer or Control System RS-232 Port Figure 4. RS‑232 Connector Pin Assignments SW HD 4K Series • Installation... -
Page 13: Connecting To The Usb Port
) if you want the • Yes, now and every time I connect a device computer to automatically connect to Windows Update to search the web every time the switcher is connected to this USB port. SW HD 4K Series • Installation... -
Page 14: Enabling Auto-Input Switching
(see figure 4 on page 7). Insert the plug into the 2-pole Auto captive screw connector on the rear panel (see figures 1 and 2 on page 4). SW HD 4K Series • Installation... -
Page 15: Wiring The Contact Closure Connectors
REMOTE Contact Closure input connector and the black pigtail to the associated pin on the Tally Out con- nector (see the diagram to the right). “Show Me” Cable SW HD 4K Series • Installation... -
Page 16: Lockit Hdmi Cable Lacing Bracket Installation Guide
Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket as shown. While holding the connector securely against the lacing bracket, tighten the tie wrap, then remove any excess length. SW HD 4K Series • Installation... -
Page 17: Operation
Operation This section describes the operation of the SW HD 4K Series switchers. Topics include: • Front Panel Features • Operations Front Panel Features INPUTS OUTPUT INPUTS AUTO SIGNAL SWITCH HDCP CONFIG SW2 HD 4K HDMI SWITCHER Auto Switch LED Figure 8. -
Page 18: Operations
Do not connect any external power supplies until you have read the notifications on page 6. • Ne branchez pas de sources d’alimentation externes avant d’avoir lu les mises en garde sur la page 6 Power on the input devices. SW HD 4K Series • Operation... -
Page 19: Selecting An Input
40-degree arc to the right or left of the IR receiver sensor, and from no more than 30 feet (9 m) away (see figure 10 on the next page). SW HD 4K Series • Operation... -
Page 20: Locking And Unlocking The Front Panel (Executive Mode)
3 seconds, then release. The front panel LEDs blink three times, indicating that executive mode has been enabled or disabled (see figure 11). Release buttons. LEDs blink 3 times. Press and hold simultaneously for 3 seconds. Figure 11. Enabling or Disabling Executive Mode SW HD 4K Series • Operation... -
Page 21: Edid Modes
EDID of the display that is currently connected to the output port of the switcher. These two EDID files can be selected as one of the user- assigned EDID files. SW HD 4K Series • Operation... -
Page 22: Remote Communication And Control
No response is required from the host. The switcher sends the following message when it is first powered on: (C) Copyright 20nn, Extron Electronics SW HD 4K Switcher Series, Vn.nn, 60-841-nn is the year in which the copyright for the firmware was registered,... -
Page 23: Error Responses
0-15 = Factory-supplied EDID number (for a list of available EDID files, see the EDID table on page 21). 9 = Default = Current EDID information in hexadecimal format (128 or 256 bytes of hex data) SW HD 4K Series • Remote Communication and Control... - Page 24 3 = Verbose mode and tagged responses for queries = Video mute 0 = Video mute disabled 1 = Video mute enabled (TMDS) 2 = Video and sync mute NOTE: Unless otherwise indicated, commands are not case-sensitive. SW HD 4K Series • Remote Communication and Control...
-
Page 25: Command And Response Table For Sis Commands
= inputs 1 - max inputs EdidA • •... Verbose mode 2/3 Query EDID in hex format View the current EDID assignment in EDID hexadecimal (256 bytes). = current EDID information in hex. Verbose 2/3 SW HD 4K Series • Remote Communication and Control... - Page 26 720p 60 Hz HDMI 2-Ch 1080p 50 Hz HDMI 2-Ch 1080p 60 Hz HDMI 2-Ch 4K/UHD 30 Hz HDMI 2-Ch Output 1 User Loaded Slot 1 User Loaded Slot 2 Default SW HD 4K Series • Remote Communication and Control...
- Page 27 Query firmware version Show firmware build number expressed to the second decimal place. Example: 1.01 Query auto-input switching Show status of auto-input switching. status : 0 = manual, 1 = auto SW HD 4K Series • Remote Communication and Control...
- Page 28 2 = Tagged responses for queries 3 = Verbose mode and tagged responses for queries View verbose mode X1@] X1@] Verbose mode 2/3 Resetting Reset Reset the switcher to its factory default ZXXX values. SW HD 4K Series • Remote Communication and Control...
-
Page 29: Updating Firmware Using Firmware Loader
Updating Firmware Using Firmware Loader Updates to the SW HD 4K Series firmware are made available periodically via the Extron website. You can find out what version of firmware is currently loaded on your switcher by entering the SIS Q command via the RS-232 or USB interface (see the... -
Page 30: Loading The Firmware To The Switcher
Open Firmware Loader via your desktop menu by making the following Start selections: Start > All Programs > Extron Electronics > Firmware Loader > Firmware Loader The Firmware Loader window opens with the Add Device window displayed in figure 15 front (see on the next page). - Page 31 New Firmware File (Optional) panel. Browse On the Open window, navigate to the new firmware file, which has an S19 extension, and double-click it. Figure 16. Open Window for Firmware File Selection SW HD 4K Series • Remote Communication and Control...
- Page 32 For each additional device you want to add to the Firmware Loader window, repeat steps 5 through 10, then click Add Next For the last device, click (instead of ) to add the device and to close Add Next the Add Device window. SW HD 4K Series • Remote Communication and Control...
- Page 33 On the Remove Device(s) window, select or deselect any devices on the list as desired, then click Remove To remove all devices, select ) from the menu. Remove All Devices Edit SW HD 4K Series • Remote Communication and Control...
- Page 34 Remaining Time 00.00.00 Progress column shows , and is displayed above the progress bar 100% Completed and in the Status column. Close the Firmware Loader window. Figure 21. Firmware Upload Complete SW HD 4K Series • Remote Communication and Control...
-
Page 35: Reference Information
Consider equipment nameplate ratings when addressing this concern. Reliable earthing (grounding) — Maintain reliable grounding of rack-mounted equipment. Pay particular attention to supply connections other than direct connections to the branch circuit (for example, use of power strips). SW HD 4K Series • Reference Information... -
Page 36: Furniture Mounting
The SW HD 4K switchers can be mounted under a desk, table, or podium using an under-desk mounting kit (see www.extron.com for recommended kits and follow the mounting instructions provided with the kit). SW HD 4K Series • Reference Information... -
Page 37: Extron Warranty
Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
