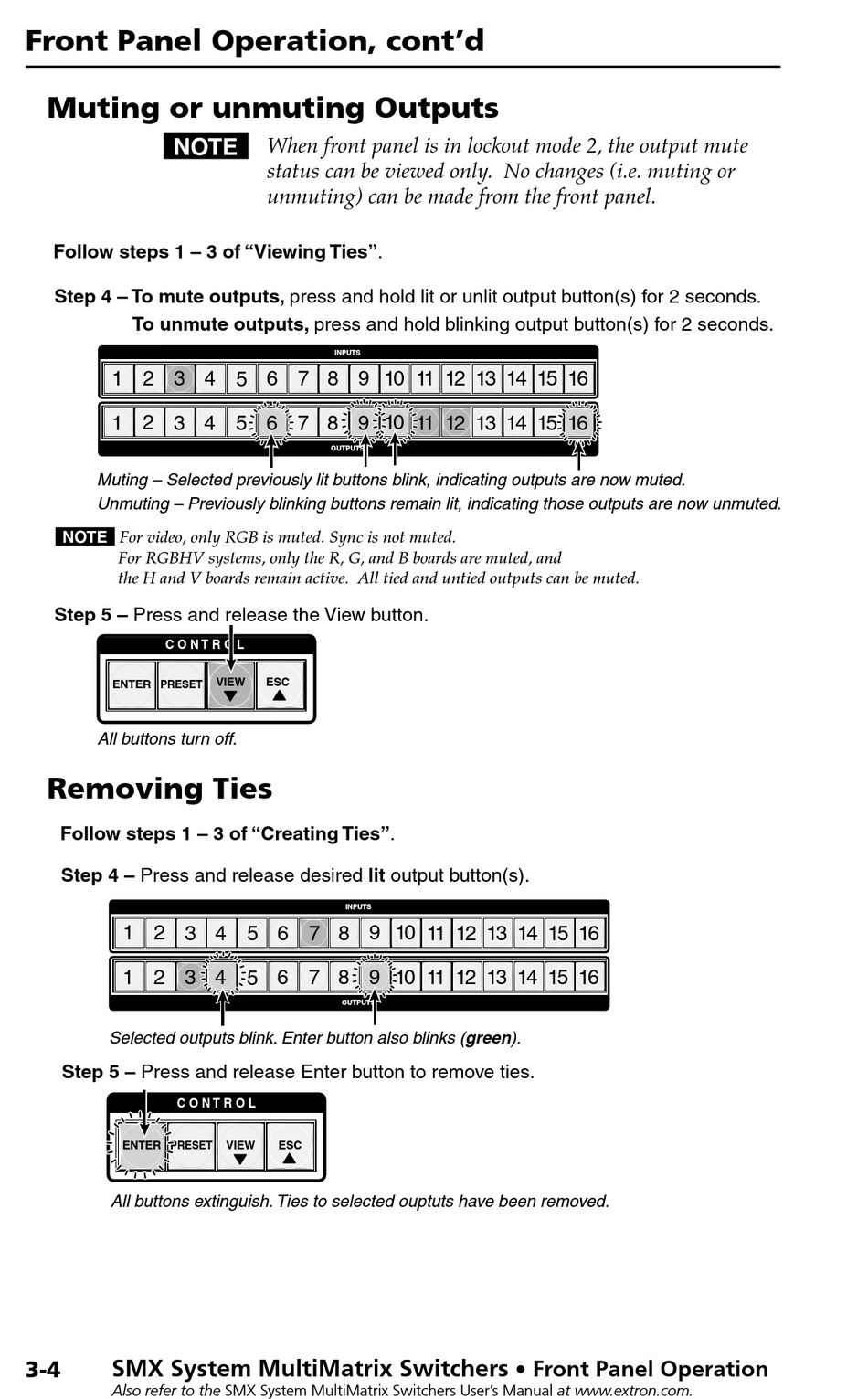

Front Panel Operation, cont'd
Muting or unmuting Outputs
N
Follow steps 1 – 3 of "Viewing Ties".
Step 4 – To mute outputs, press and hold lit or unlit output button(s) for 2 seconds.
To unmute outputs, press and hold blinking output button(s) for 2 seconds.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Muting – Selected previously lit buttons blink, indicating outputs are now muted.
Unmuting – Previously blinking buttons remain lit, indicating those outputs are now unmuted.
N For video, only RGB is muted. Sync is not muted.
For RGBHV systems, only the R, G, and B boards are muted, and
the H and V boards remain active. All tied and untied outputs can be muted.
Step 5 – Press and release the View button.
C O N T R O L
ENTER
PRESET
All buttons turn off.
Removing Ties
Follow steps 1 – 3 of "Creating Ties".
Step 4 – Press and release desired lit output button(s).
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Selected outputs blink. Enter button also blinks (green).
Step 5 – Press and release Enter button to remove ties.
C O N T R O L
ENTER
PRESET
All buttons extinguish. Ties to selected ouptuts have been removed.
SMX System MultiMatrix Switchers
3-4
Also refer to the SMX System MultiMatrix Switchers User's Manual at www.extron.com.
When front panel is in lockout mode 2, the output mute
status can be viewed only. No changes (i.e. muting or
unmuting) can be made from the front panel.
INPUTS
OUTPUTS
VIEW
ESC
INPUTS
OUTPUTS
VIEW
ESC
