Creating Subscriptions Between Devices
1. Ensure the control computer and NetPA Ultra amplifier are connected to the same
network.
2. From the start menu select:
All Programs > Audinate > Dante Controller > Dante Controller
The Dante Controller - Network View screen opens.
Dante Controller auto-discovers Dante devices on the network and advertises itself to
allow other Dante-enabled devices to communicate with it. Transmitters connect to
receivers using the subscription matrix.
2

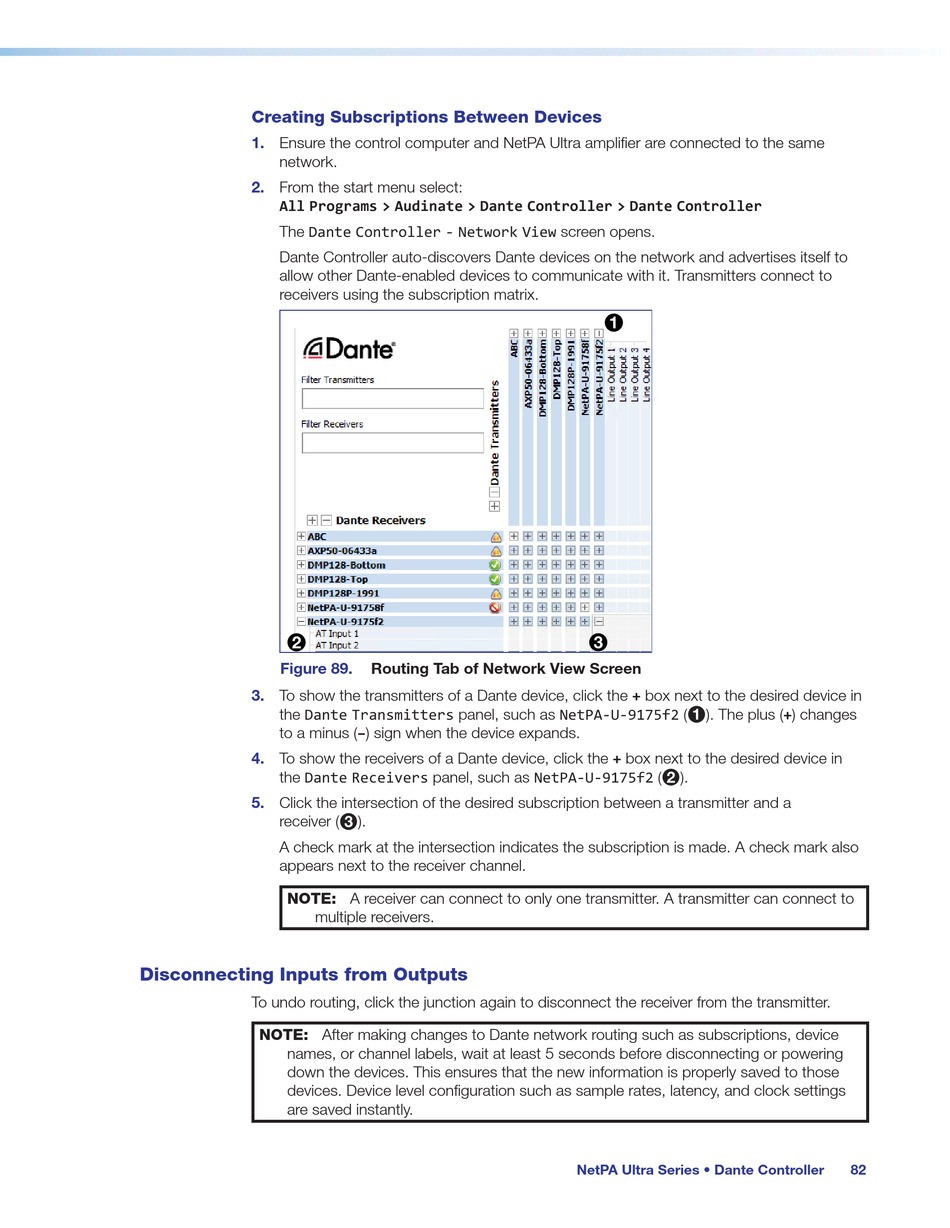

Figure 89.
3. To show the transmitters of a Dante device, click the + box next to the desired device in
the Dante Transmitters panel, such as NetPA-U-9175f2 (
to a minus (–) sign when the device expands.
4. To show the receivers of a Dante device, click the + box next to the desired device in
the Dante Receivers panel, such as NetPA-U-9175f2 (
5. Click the intersection of the desired subscription between a transmitter and a
receiver (
A check mark at the intersection indicates the subscription is made. A check mark also
appears next to the receiver channel.
NOTE: A receiver can connect to only one transmitter. A transmitter can connect to
multiple receivers.

Disconnecting Inputs from Outputs

To undo routing, click the junction again to disconnect the receiver from the transmitter.
NOTE: After making changes to Dante network routing such as subscriptions, device
names, or channel labels, wait at least 5 seconds before disconnecting or powering
down the devices. This ensures that the new information is properly saved to those
devices. Device level configuration such as sample rates, latency, and clock settings
are saved instantly.
Routing Tab of Network View Screen
).
3
1
3
). The plus (+) changes
1
).
2
NetPA Ultra Series • Dante Controller 82
