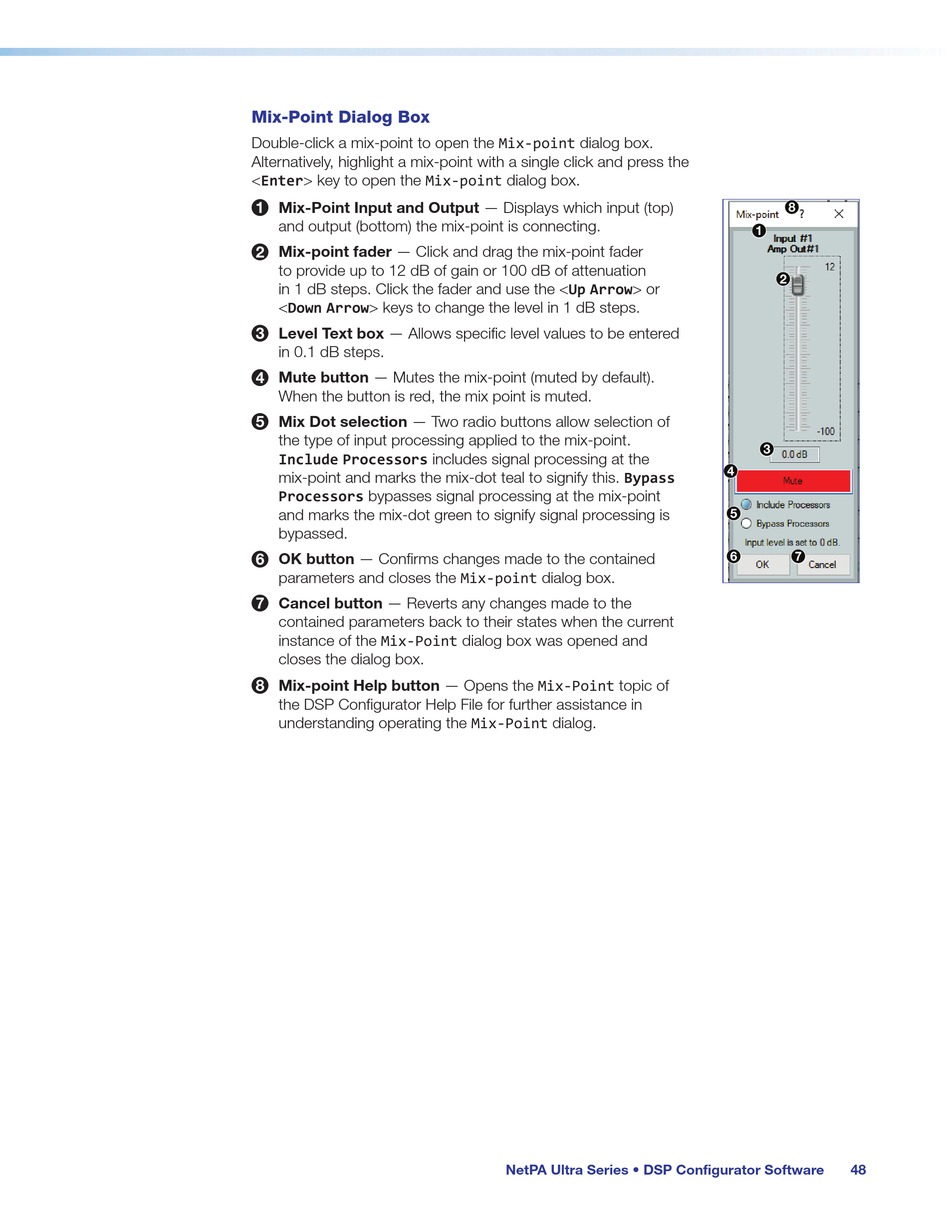

Mix-Point Dialog Box
Double-click a mix-point to open the Mix-point dialog box.
Alternatively, highlight a mix-point with a single click and press the
<Enter> key to open the Mix-point dialog box.
Mix-Point Input and Output — Displays which input (top)
1
and output (bottom) the mix-point is connecting.
Mix-point fader — Click and drag the mix-point fader
2
to provide up to 12 dB of gain or 100 dB of attenuation
in 1 dB steps. Click the fader and use the <Up Arrow> or
<Down Arrow> keys to change the level in 1 dB steps.
Level Text box — Allows specific level values to be entered
3
in 0.1 dB steps.
Mute button — Mutes the mix-point (muted by default).
4
When the button is red, the mix point is muted.
Mix Dot selection — Two radio buttons allow selection of
5
the type of input processing applied to the mix-point.
Include Processors includes signal processing at the
mix-point and marks the mix-dot teal to signify this. Bypass
Processors bypasses signal processing at the mix-point
and marks the mix-dot green to signify signal processing is
bypassed.
OK button — Confirms changes made to the contained
6
parameters and closes the Mix-point dialog box.
Cancel button — Reverts any changes made to the
7
contained parameters back to their states when the current
instance of the Mix-Point dialog box was opened and
closes the dialog box.
Mix-point Help button — Opens the Mix-Point topic of
8
the DSP Configurator Help File for further assistance in
understanding operating the Mix-Point dialog.
