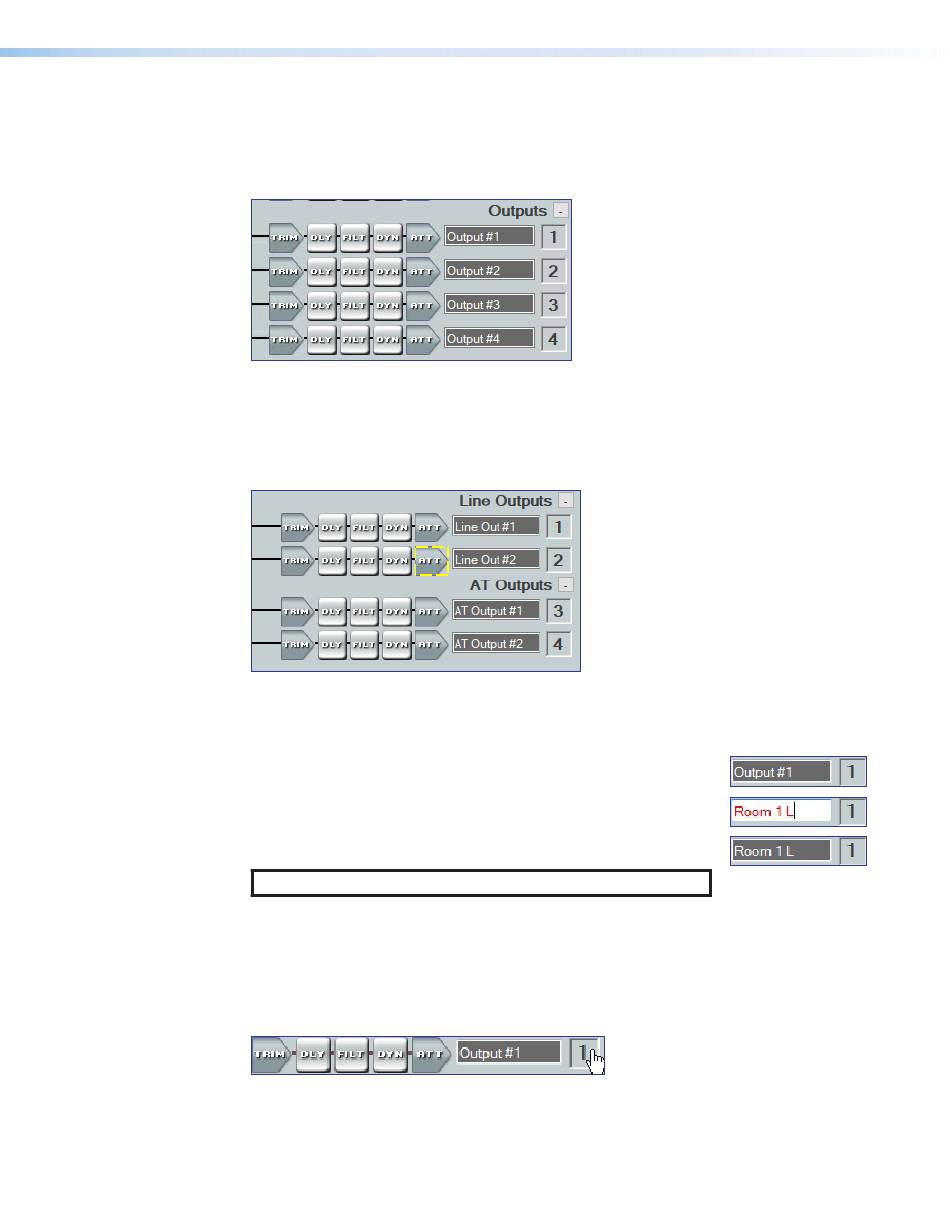

Line/AT Outputs (NetPA U 1004)
In the NetPA U 1004, four outputs are available in the
signals to the four balanced/unbalanced line level outputs as well as the four AT outputs.
Signals routed to these outputs are also transmitted on the Dante network.
Figure 51.
Line/AT Outputs (NetPA U 1002)
The NetPA U 1002 has two separate channels for the line outputs and two separate
channels for the AT outputs. Each output has to be routed to individually.
Figure 52.
Naming an Output
1. Click the output name field.
2. Delete the text and type the desired output name.
3. Press the <Enter> key or navigate away from the field to
confirm and apply the new output name.
4. Press the <Down Arrow> key to navigate to and highlight the
next name field.
NOTE: Follow the same procedure to edit an Output name.
Line/AT Output Building Blocks
Extron building blocks are a quick configuration tool that can significantly reduce
configuration time. A building block is a collection of processor and gain settings for an
input or output processing chain. These building blocks have been built by Extron based on
extensive use and testing with each intended application or specific device.
Figure 53.
Outputs Panel for the NetPA U 1004
Outputs Panel for the NetPA U 1002
Accessing Building Blocks on an Output
NetPA Ultra Series • DSP Configurator Software
panel and route
Line and AT Outputs
50
