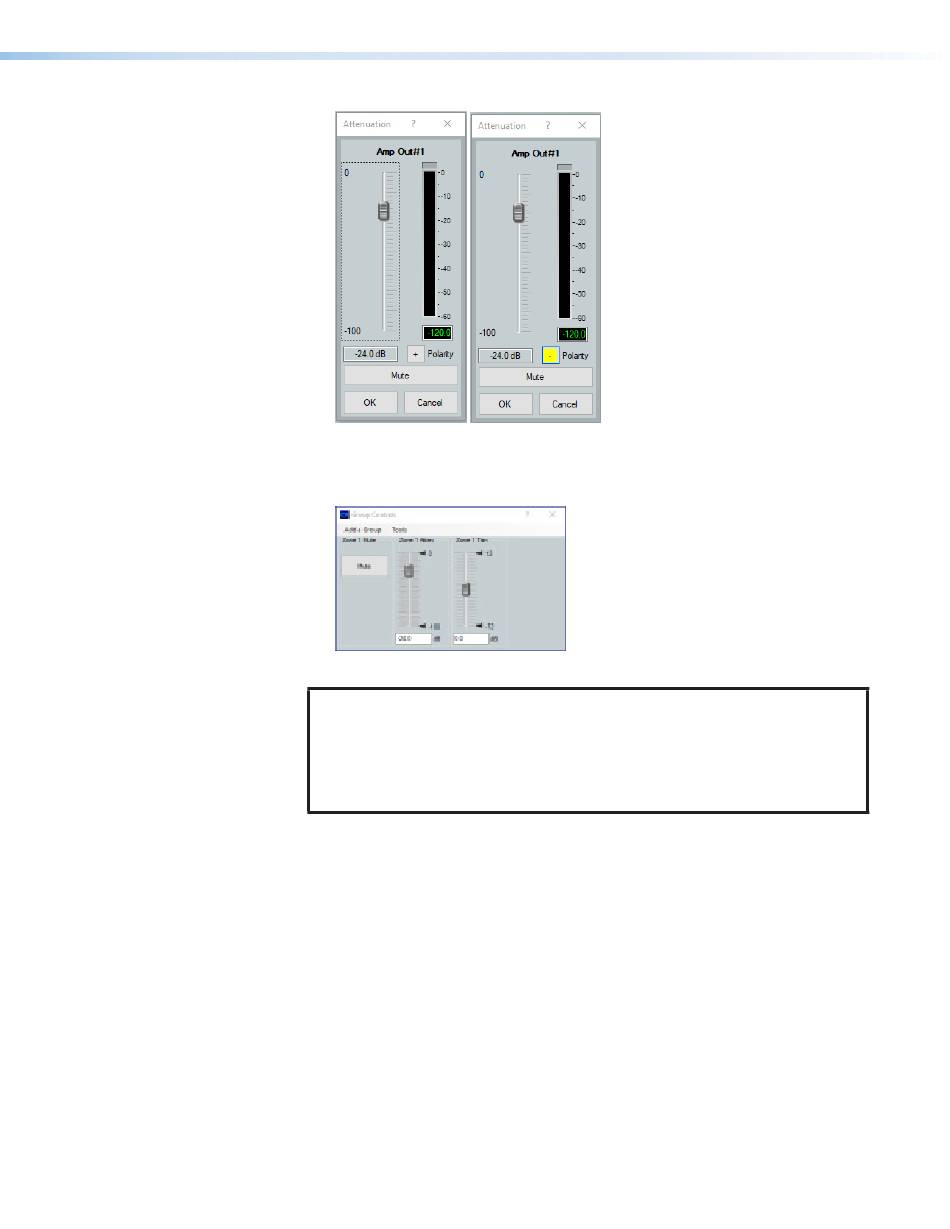

Figure 22. Attenuation Blocks
iv. Create groups for the trim and attenuation blocks of the two channels to control
gain and mute of both channels simultaneously.
Figure 23. Gain Controls
NOTES:
Set the attenuator of the attenuation blocks (via the created group) to
•
-24 dB or lower to prevent an unexpectedly loud signal from getting to
the speaker when you first test the system (see figure 22).
• For details on each processing block see
on page 28.
e. Verify that the gain structure through the signal chain is set appropriately, especially
that the mix points are set to the same gain and mute values.
f. If using Dante inputs, make the ties as shown in
page 75).
3. Unplug the IEC power cord from the amplifier.
4. Wire the outputs (see figure 24
DSP Configurator Software
Dante Controller
on the next page).
