After 25-minutes of inactivity.
•
NOTE: The inactivity timer can be disabled, and the STANDBY pin and SIS
Command can continue to force the unit into Standby mode (see
standby on on page 91 in the SIS Command section to learn how to force
standby mode).
Rx
Tx
G
Do not tin
G
the wires! STANDBY

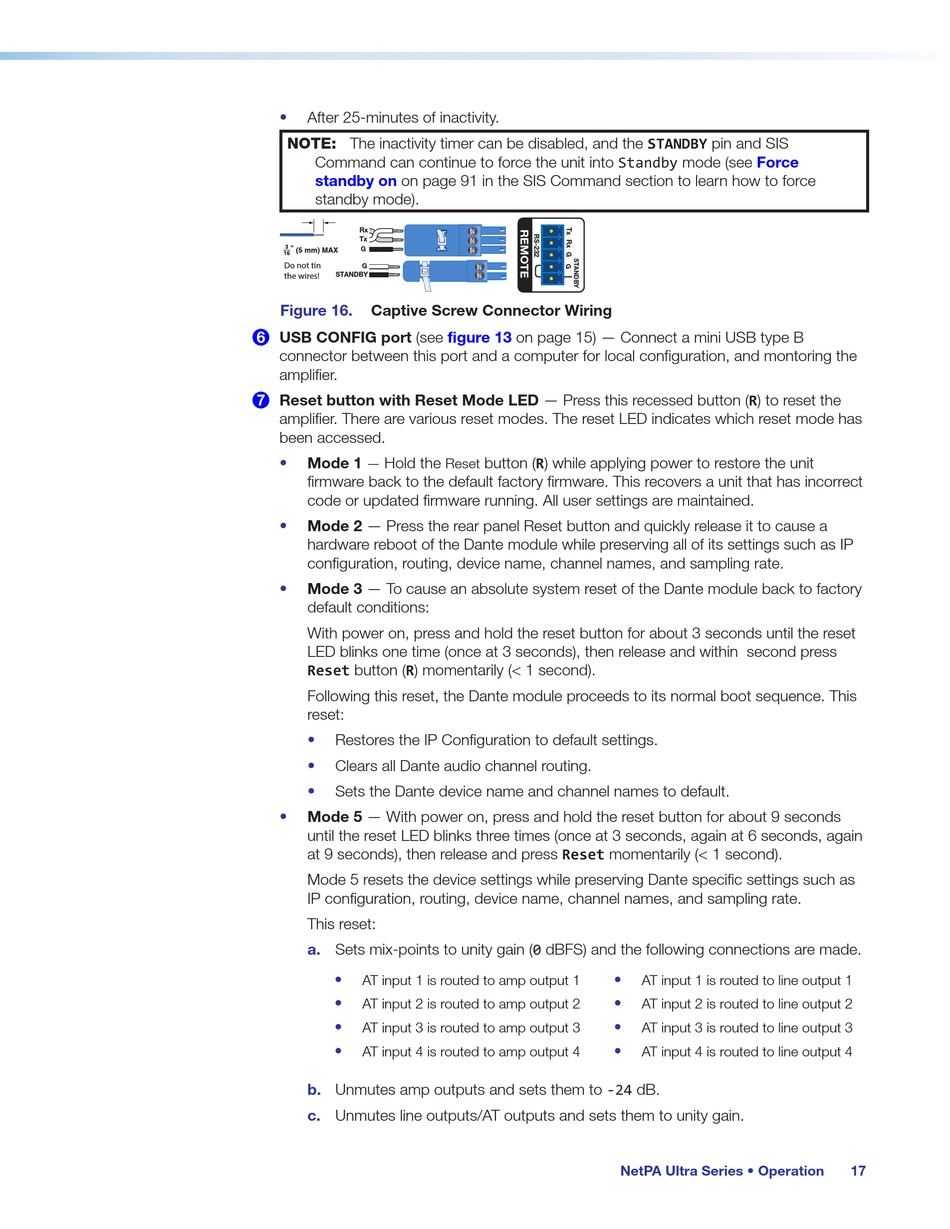

Figure 16. Captive Screw Connector Wiring
USB CONFIG port (see
6
connector between this port and a computer for local configuration, and montoring the
amplifier.
Reset button with Reset Mode LED — Press this recessed button (R) to reset the
7
amplifier. There are various reset modes. The reset LED indicates which reset mode has
been accessed.
• Mode 1 Hold the
—
firmware back to the default factory firmware. This recovers a unit that has incorrect
code or updated firmware running. All user settings are maintained.
• Mode 2 — Press the rear panel Reset button and quickly release it to cause a
hardware reboot of the Dante module while preserving all of its settings such as IP
configuration, routing, device name, channel names, and sampling rate.
• Mode 3 — To cause an absolute system reset of the Dante module back to factory
default conditions:
With power on, press and hold the reset button for about 3 seconds until the reset
LED blinks one time (once at 3 seconds), then release and within second press
Reset button (R) momentarily (< 1 second).
Following this reset, the Dante module proceeds to its normal boot sequence. This
reset:
Restores the IP Configuration to default settings.
•
• Clears all Dante audio channel routing.
• Sets the Dante device name and channel names to default.
• Mode 5 — With power on, press and hold the reset button for about 9 seconds
until the reset LED blinks three times (once at 3 seconds, again at 6 seconds, again
at 9 seconds), then release and press Reset momentarily (< 1 second).
Mode 5 resets the device settings while preserving Dante specific settings such as
IP configuration, routing, device name, channel names, and sampling rate.
This reset:
a. Sets mix-points to unity gain (0 dBFS) and the following connections are made.
•
AT input 1 is routed to amp output 1
•
AT input 2 is routed to amp output 2
•
AT input 3 is routed to amp output 3
•
AT input 4 is routed to amp output 4
Unmutes amp outputs and sets them to -24 dB.
b.
c. Unmutes line outputs/AT outputs and sets them to unity gain.
figure 13 on page 15) — Connect a mini USB type B
button (R) while applying power to restore the unit
Reset
•
•
•
•
NetPA Ultra Series • Operation
Force
AT input 1 is routed to line output 1
AT input 2 is routed to line output 2
AT input 3 is routed to line output 3
AT input 4 is routed to line output 4
17
