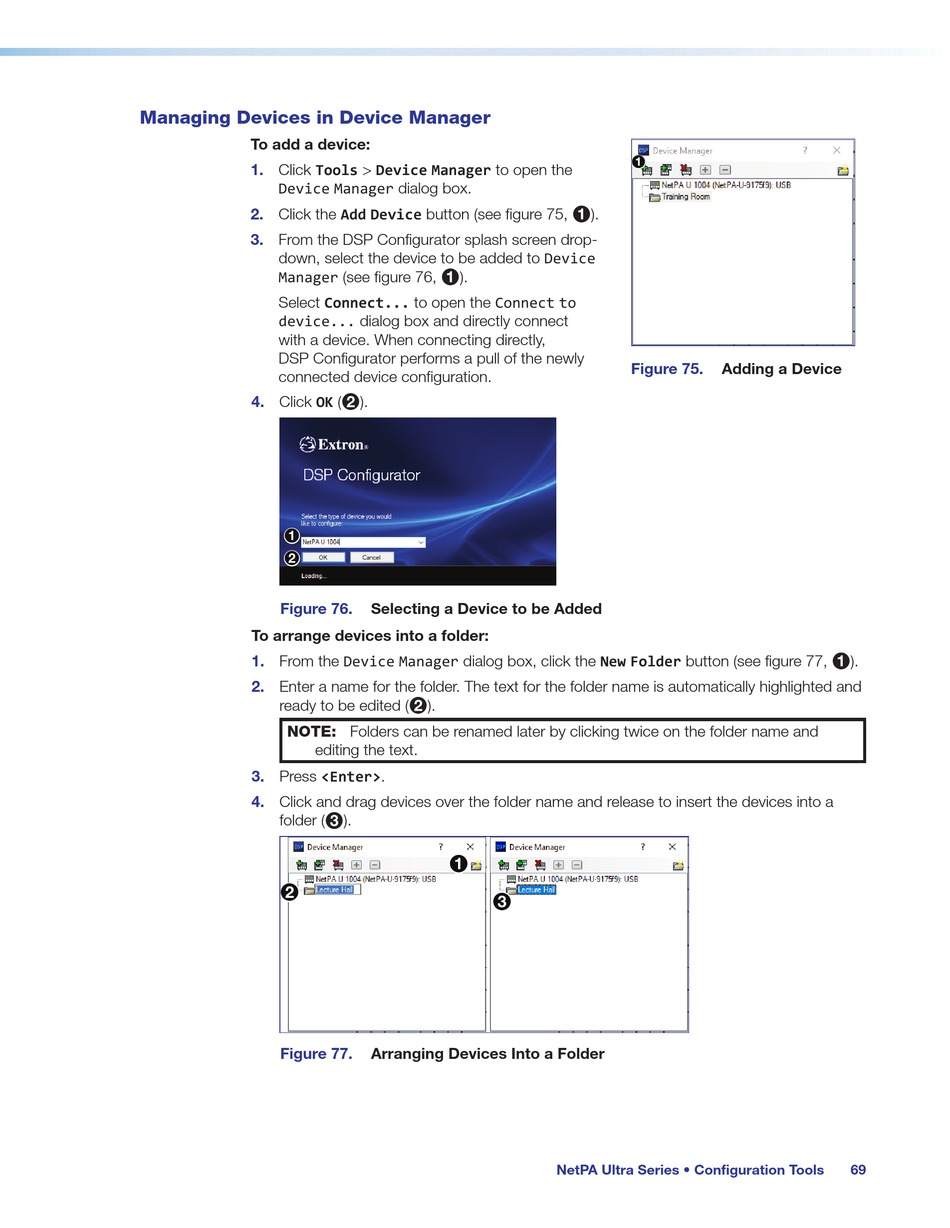

Managing Devices in Device Manager

To add a device:
1. Click Tools > Device Manager to open the
Device Manager dialog box.
2. Click the Add Device button (see figure 75,
3. From the DSP Configurator splash screen drop-
down, select the device to be added to Device
Manager (see figure 76,
Select Connect... to open the Connect to
device... dialog box and directly connect
with a device. When connecting directly,
DSP Configurator performs a pull of the newly
connected device configuration.
4. Click OK (
1
2
Figure 76.
To arrange devices into a folder:
1. From the Device Manager dialog box, click the New Folder button (see figure 77,
2. Enter a name for the folder. The text for the folder name is automatically highlighted and
ready to be edited (
NOTE: Folders can be renamed later by clicking twice on the folder name and
editing the text.
3. Press <Enter>.
4. Click and drag devices over the folder name and release to insert the devices into a
folder (
2
Figure 77.
).
1
).
2
Selecting a Device to be Added
).
2
).
3
1
3
Arranging Devices Into a Folder
1
).
1
Figure 75. Adding a Device
NetPA Ultra Series • Configuration Tools
).
