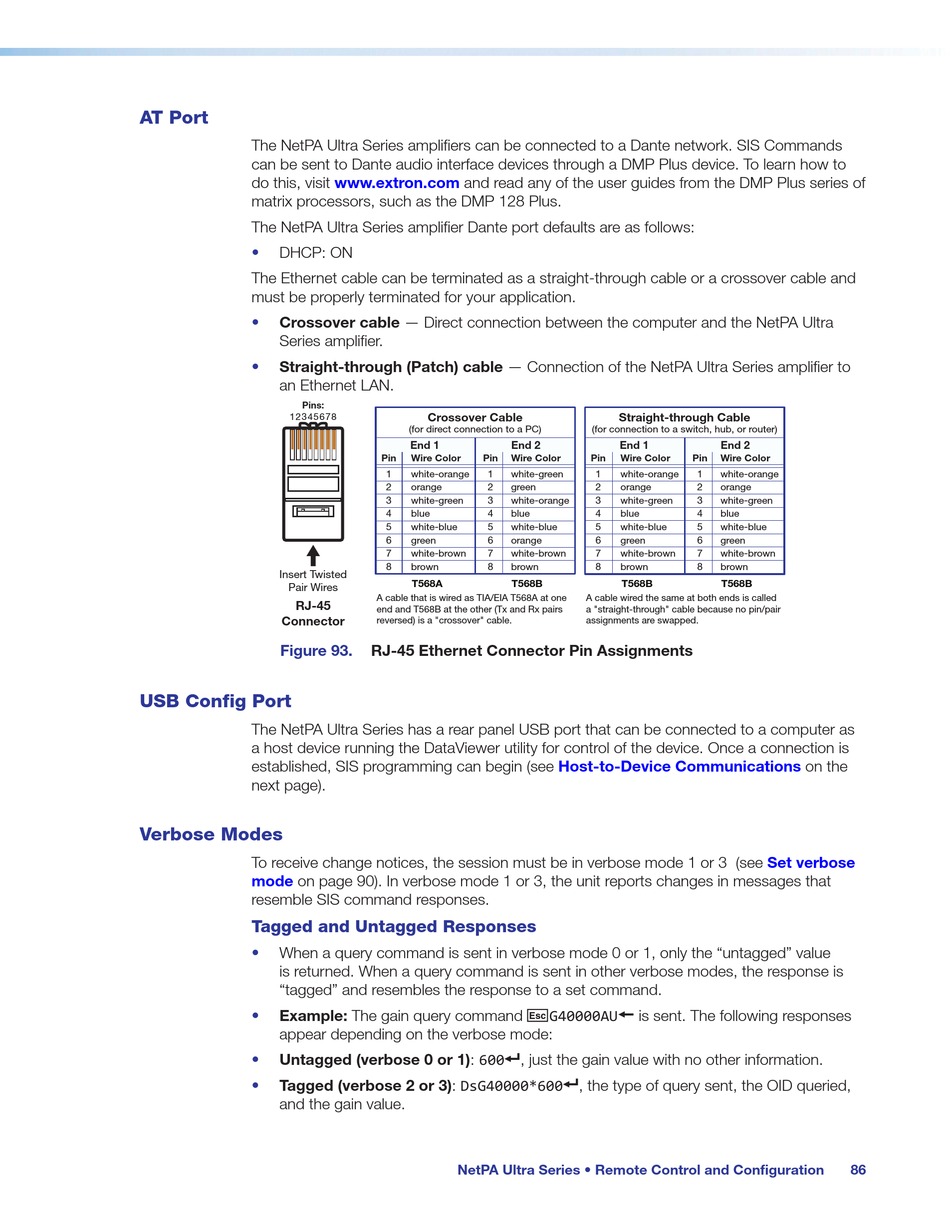

AT Port

The NetPA Ultra Series amplifiers can be connected to a Dante network. SIS Commands
can be sent to Dante audio interface devices through a DMP Plus device. To learn how to
do this, visit
matrix processors, such as the DMP 128 Plus.
The NetPA Ultra Series amplifier Dante port defaults are as follows:
• DHCP: ON
The Ethernet cable can be terminated as a straight-through cable or a crossover cable and
must be properly terminated for your application.
Crossover cable — Direct connection between the computer and the NetPA Ultra
•
Series amplifier.
• Straight-through (Patch) cable — Connection of the NetPA Ultra Series amplifier to
an Ethernet LAN.
Pins:
12345678
Insert Twisted
Pair Wires
RJ-45
Connector
Figure 93.

USB Config Port

The NetPA Ultra Series has a rear panel USB port that can be connected to a computer as
a host device running the DataViewer utility for control of the device. Once a connection is
established, SIS programming can begin (see
next page).

Verbose Modes

To receive change notices, the session must be in verbose mode 1 or 3 (see
mode on page 90). In verbose mode 1 or 3, the unit reports changes in messages that
resemble SIS command responses.
Tagged and Untagged Responses
• When a query command is sent in verbose mode 0 or 1, only the "untagged" value
is returned. When a query command is sent in other verbose modes, the response is
"tagged" and resembles the response to a set command.
Example: The gain query command E G40000AU } is sent. The following responses
•
appear depending on the verbose mode:
Untagged (verbose 0 or 1): 600 ] , just the gain value with no other information.
•
Tagged (verbose 2 or 3): DsG40000*600 ] , the type of query sent, the OID queried,
•
and the gain value.
www.extron.com and read any of the user guides from the DMP Plus series of
Crossover Cable
(for direct connection to a PC)
End 1 End 2
Pin Wire Color Pin Wire Color
1 white-orange 1 white-green
2 orange 2 green
3 white-green 3 white-orange
4 blue 4 blue
5 white-blue 5 white-blue
6 green 6 orange
7 white-brown 7 white-brown
8 brown 8 brown
T568A T568B
A cable that is wired as TIA/EIA T568A at one
end and T568B at the other (Tx and Rx pairs
reversed) is a "crossover" cable.
RJ-45 Ethernet Connector Pin Assignments
NetPA Ultra Series • Remote Control and Configuration
Straight-through Cable
(for connection to a switch, hub, or router)
End 1 End 2
Pin Wire Color Pin Wire Color
1 white-orange 1 white-orange
2 orange 2 orange
3 white-green 3 white-green
4 blue 4 blue
5 white-blue 5 white-blue
6 green 6 green
7 white-brown 7 white-brown
8 brown 8 brown
T568B T568B
A cable wired the same at both ends is called
a "straight-through" cable because no pin/pair
assignments are swapped.
Host-to-Device Communications on the
Set verbose
