Presets Drop-Down List; Dsp Configurator Status Panel; Live And Emulate Panel - Extron electronics NetPA Ultra Series User Manual

Window
The Window menu offers the standard Windows Window Menu options such as Cascade
and Close All Windows.
Help
The Help menu offers the standard Windows Help Menu options such as Content,
Search, and About. The help file can be accessed by clicking Content.

Presets Drop-Down List

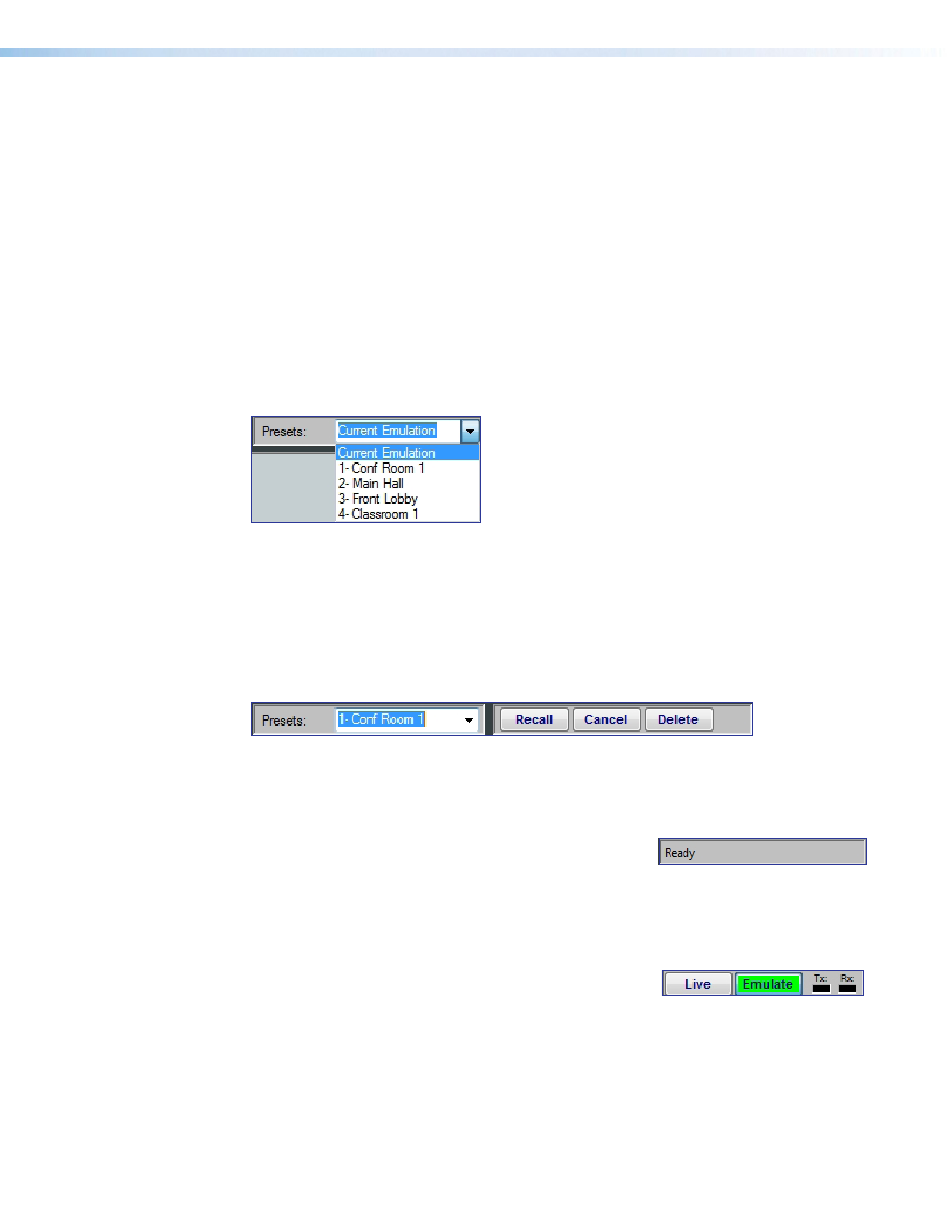

The Presets drop-down list allows the user to view and apply presets saved in the current
configuration file or on a device connected in Live mode. Presets with an asterisk next to
them are on the amplifier, but not in the current configuration file. Run a preset to load it into
the configuration file. Alternatively, perform a backup to run all presets and load them into
the current configuration file (see
Figure 27.
After selecting a preset from the list, choose one of the following actions from the
DSP Configurator status panel:
• Recall — Recalls the selected preset and applies settings to the main workspace.
• Cancel — Cancels the preset recall and returns to the main workspace with the current
emulation or state intact.
Delete — Deletes the selected preset from the configuration.
•
Figure 28.
DSP Configurator Status Panel
This panel displays the current status of DSP Configurator
and shows when data is being pushed to or pulled from
the device. When the software is ready to perform actions,
the panel reads Ready.

Live and Emulate Panel

The Live and Emulate buttons allow users to switch
between Live and Emulate mode. This panel also displays
transmit activity (Tx) and receive activity (Rx) when in Live
mode.
Emulate Mode
While in Emulate mode, DSP Configurator is functioning in an "offline" state. Changes made
to the configuration file are not applied to a device.
File on page 29).
Presets Drop-Down List
Preset and Action Selection
NetPA Ultra Series • DSP Configurator Software 31
