Bridge Plate Rack Mounting - Extron electronics NetPA Ultra Series User Manual

1

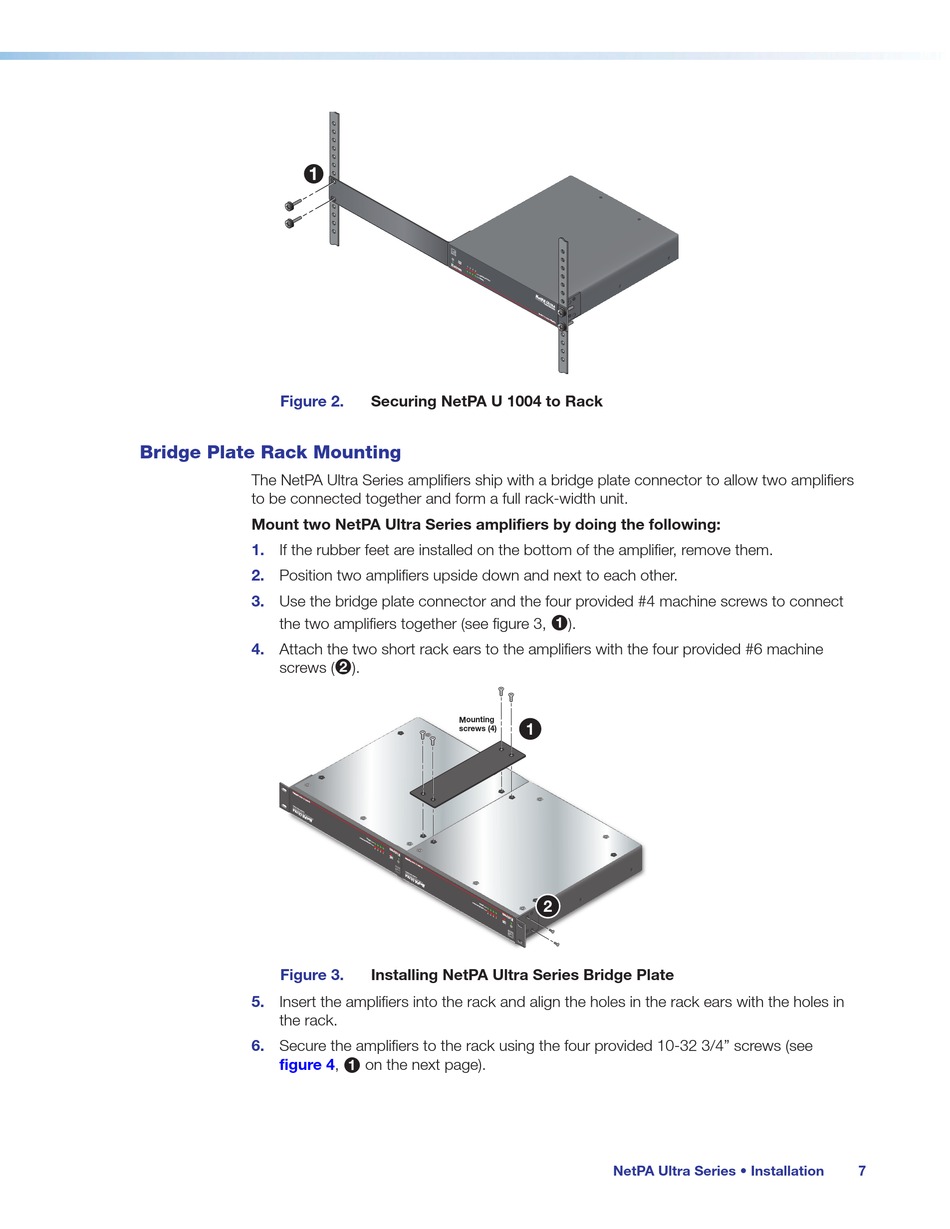

Figure 2.

Bridge Plate Rack Mounting

The NetPA Ultra Series amplifiers ship with a bridge plate connector to allow two amplifiers
to be connected together and form a full rack-width unit.
Mount two NetPA Ultra Series amplifiers by doing the following:
1. If the rubber feet are installed on the bottom of the amplifier, remove them.
2. Position two amplifiers upside down and next to each other.
3. Use the bridge plate connector and the four provided #4 machine screws to connect
the two amplifiers together (see figure 3,
4. Attach the two short rack ears to the amplifiers with the four provided #6 machine
screws (
Figure 3.
5. Insert the amplifiers into the rack and align the holes in the rack ears with the holes in
the rack.
6. Secure the amplifiers to the rack using the four provided 10-32 3/4" screws (see
figure 4,
Securing NetPA U 1004 to Rack
).
2
Installing NetPA Ultra Series Bridge Plate
on the next page).
1
).
1
NetPA Ultra Series • Installation 7
