Accessing the DSP Configurator Help File
DSP Configurator comes loaded with a context-sensitive help file, which can be accessed by clicking
the
top right corner of any dialog box in DSP Configurator. There are other options to accessing the help
file: click
The help file contains detailed procedures and further instructions on all of the
DSP Configurator features.
DSP Configurator Main Workspace
The DSP Configurator main workspace can be divided into four main sections (see
figure 26). Each section contains various functions to configure the NetPA Ultra Series
amplifiers. Use the expand and collapse button, next to the input and output group names
to show or hide the groups and their corresponding mix matrices. If necessary, scroll
through the window by using the mouse wheel or the scroll bar at the right side of the
DSP Configurator main workspace.
1

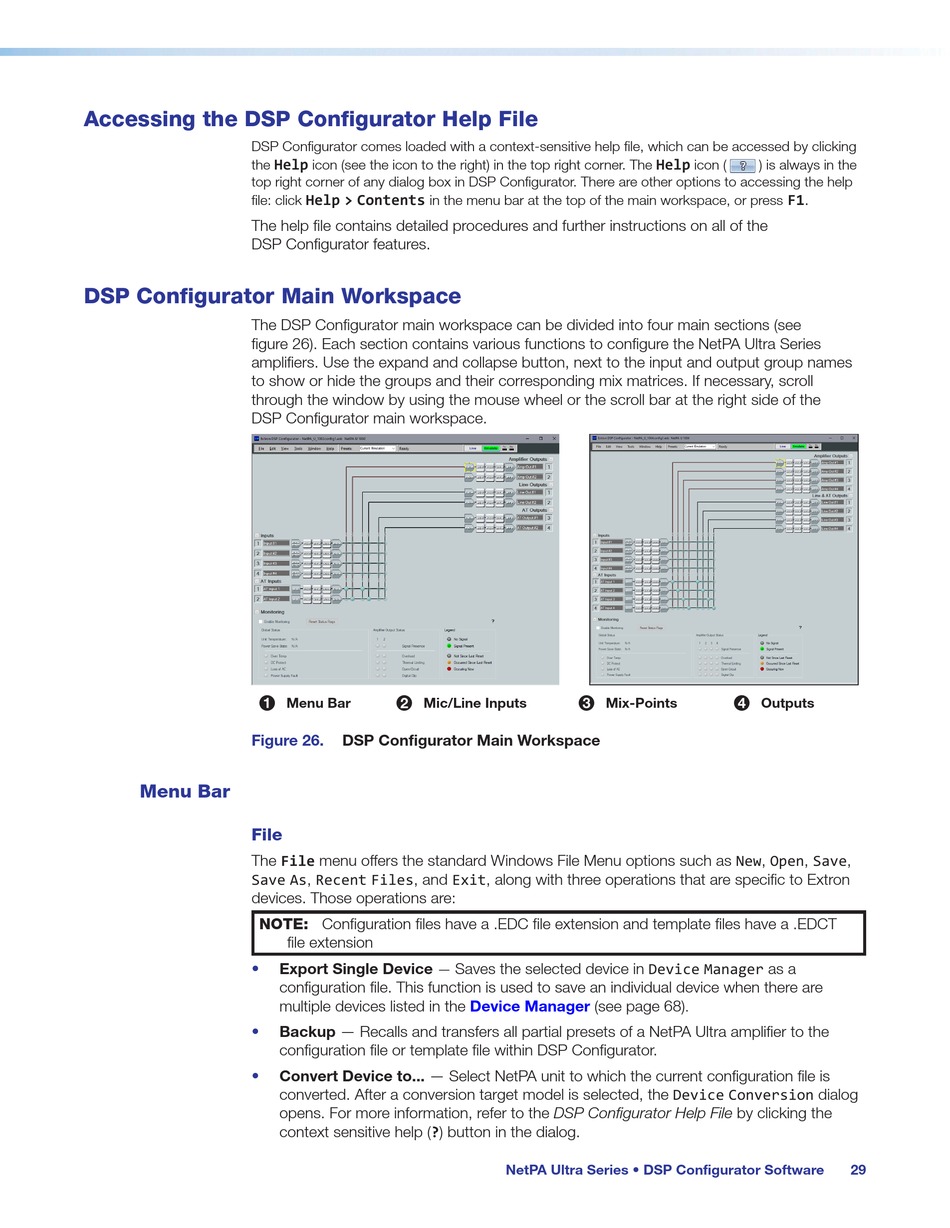

Figure 26.

Menu Bar

File
The File menu offers the standard Windows File Menu options such as New, Open, Save,
Save As, Recent Files, and Exit, along with three operations that are specific to Extron
devices. Those operations are:
NOTE: Configuration files have a .EDC file extension and template files have a .EDCT
•
•
•
Help
icon (see the icon to the right) in the top right corner. The
Help > Contents
in the menu bar at the top of the main workspace, or press
Menu Bar Mic/Line Inputs
2
DSP Configurator Main Workspace
file extension
Export Single Device
—
configuration file. This function is used to save an individual device when there are
multiple devices listed in the
Backup — Recalls and transfers all partial presets of a NetPA Ultra amplifier to the
configuration file or template file within DSP Configurator.
Convert Device to... — Select NetPA unit to which the current configuration file is
converted. After a conversion target model is selected, the Device Conversion dialog
opens. For more information, refer to the DSP Configurator Help File by clicking the
context sensitive help (?) button in the dialog.
Mix-Points
3
Saves the selected device in Device Manager as a
Device Manager (see page 68)
NetPA Ultra Series • DSP Configurator Software
Help
icon ( ) is always in the
F1.
