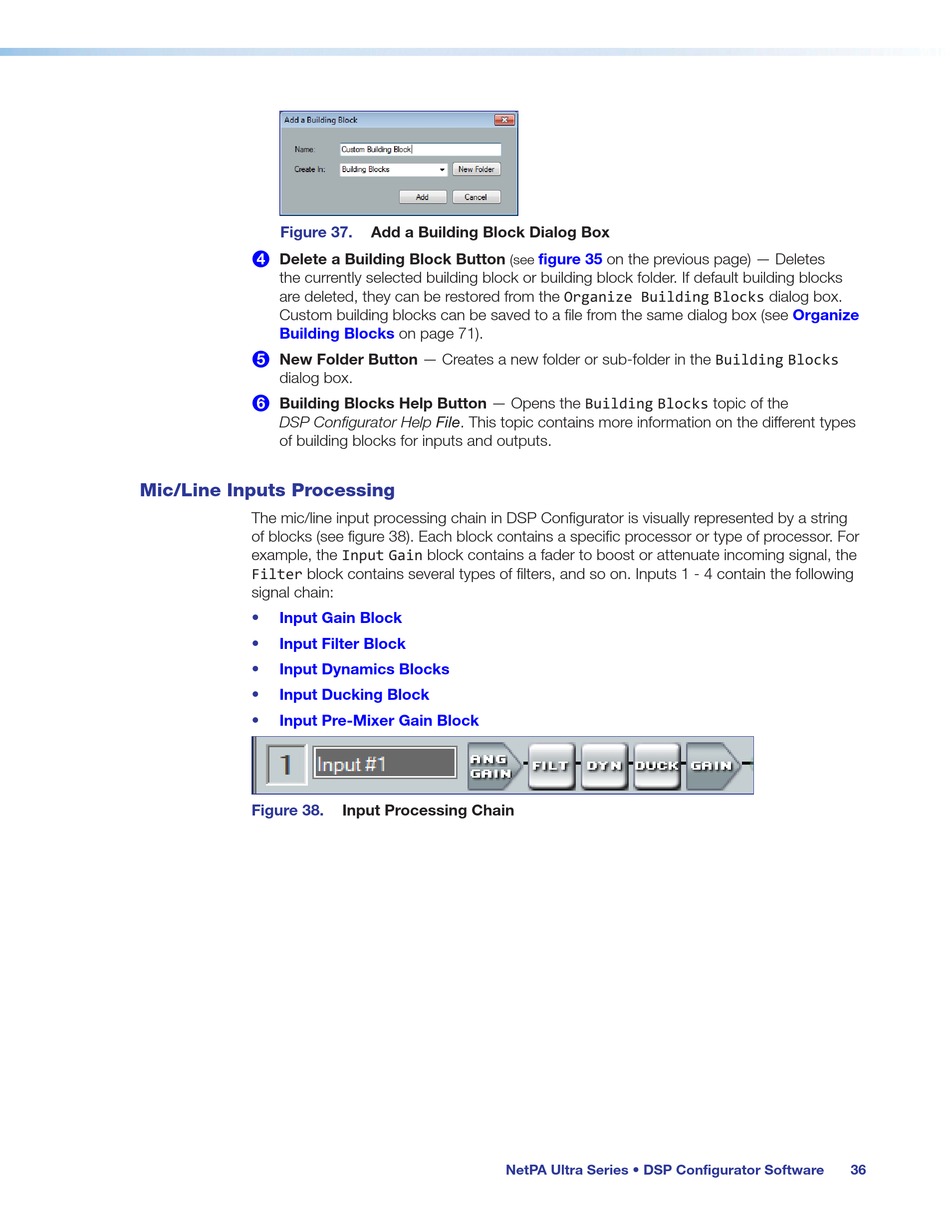

Figure 37.
Delete a Building Block Button
4
the currently selected building block or building block folder. If default building blocks
are deleted, they can be restored from the Organize Building Blocks dialog box.
Custom building blocks can be saved to a file from the same dialog box (see
Building Blocks
New Folder Button — Creates a new folder or sub-folder in the Building Blocks
5
dialog box.
Building Blocks Help Button — Opens the Building Blocks topic of the
6
DSP Configurator Help File. This topic contains more information on the different types
of building blocks for inputs and outputs.

Mic/Line Inputs Processing

The mic/line input processing chain in DSP Configurator is visually represented by a string
of blocks (see figure 38). Each block contains a specific processor or type of processor. For
example, the Input Gain block contains a fader to boost or attenuate incoming signal, the
Filter block contains several types of filters, and so on. Inputs 1 - 4 contain the following
signal chain:
• Input Gain Block
• Input Filter Block
Input Dynamics Blocks
•
• Input Ducking Block
Input Pre-Mixer Gain Block
•
Figure 38.
Add a Building Block Dialog Box
(see
on page 71).
Input Processing Chain
NetPA Ultra Series • DSP Configurator Software
figure 35 on the previous page) — Deletes
Organize
