3.11.8 HDD

Before you replace the HDD:
• Put an SD card in SD card slot C3.
• Go into the SP mode.
• Do SP5846 51 to upload the address book data to the SD card.
Important: If the HDD is damaged, you may not be able to retrieve this data
from the HDD.

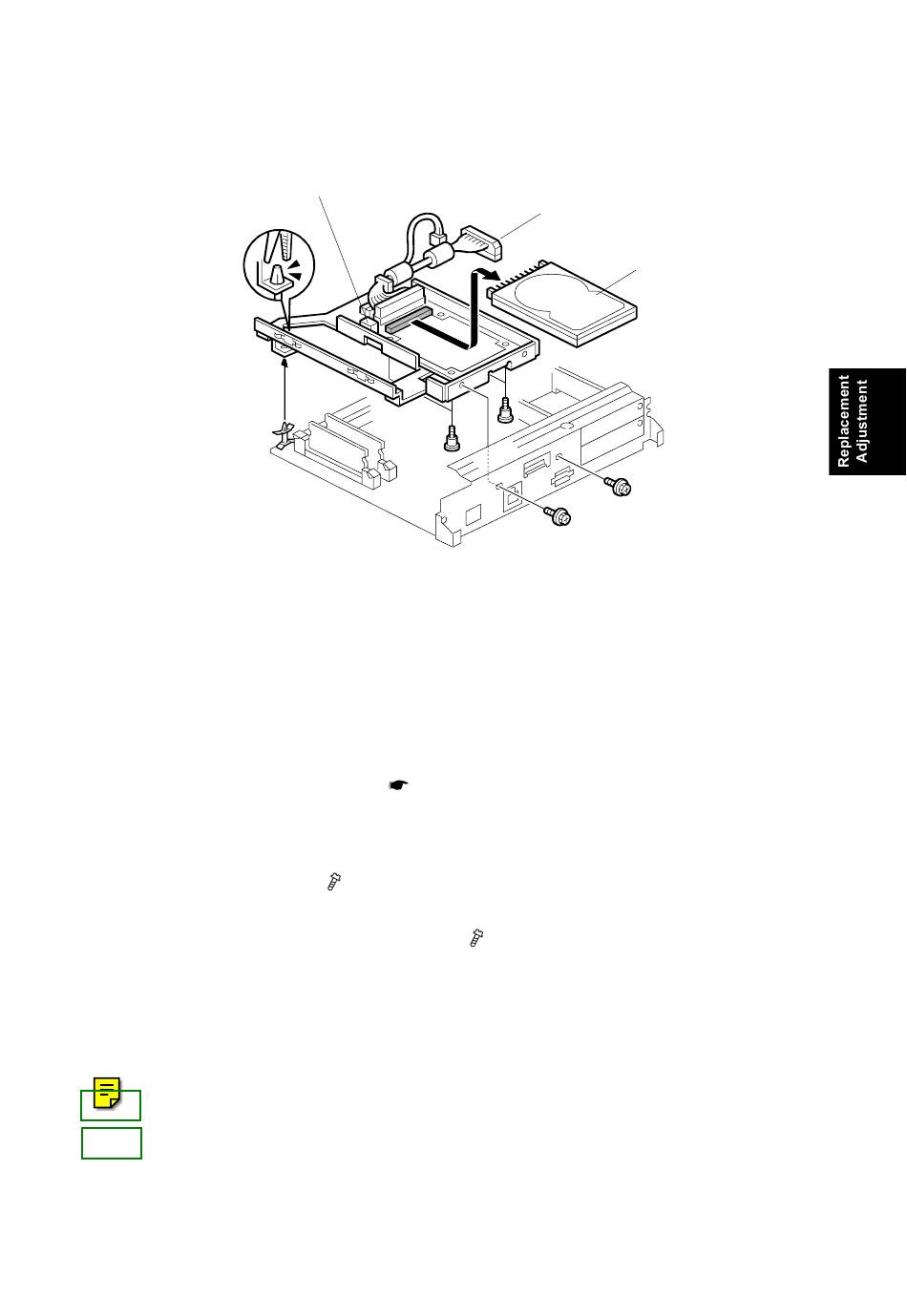

1. Remove the controller board. ( 3.11.1)
2. Disconnect the HDD harness [A].
3. Disconnect the AC harness [B]
4. Remove the HDD unit (
NOTE: It is not necessary to format the new hard disk after installation.
5. Remove the HDD [C] from the bracket ( x4)
6. After you install the new HDD, do SP5853 to copy the preset stamp data from
the firmware to the hard disk. Then turn the main power switch off/on.
7. If you successfully retrieved the address book data from the HDD with SP5846
51, do SP5846 52 to restore the address book data to the HDD.
[B]
x2, Standoffs x2)
3-55
PCBS AND OTHER ITEMS
[A]
[C]
