21 July 2006 INSTALLATION REQUIREMENTS
[C]
[B]
[A]
[D]
B459I103.WMF

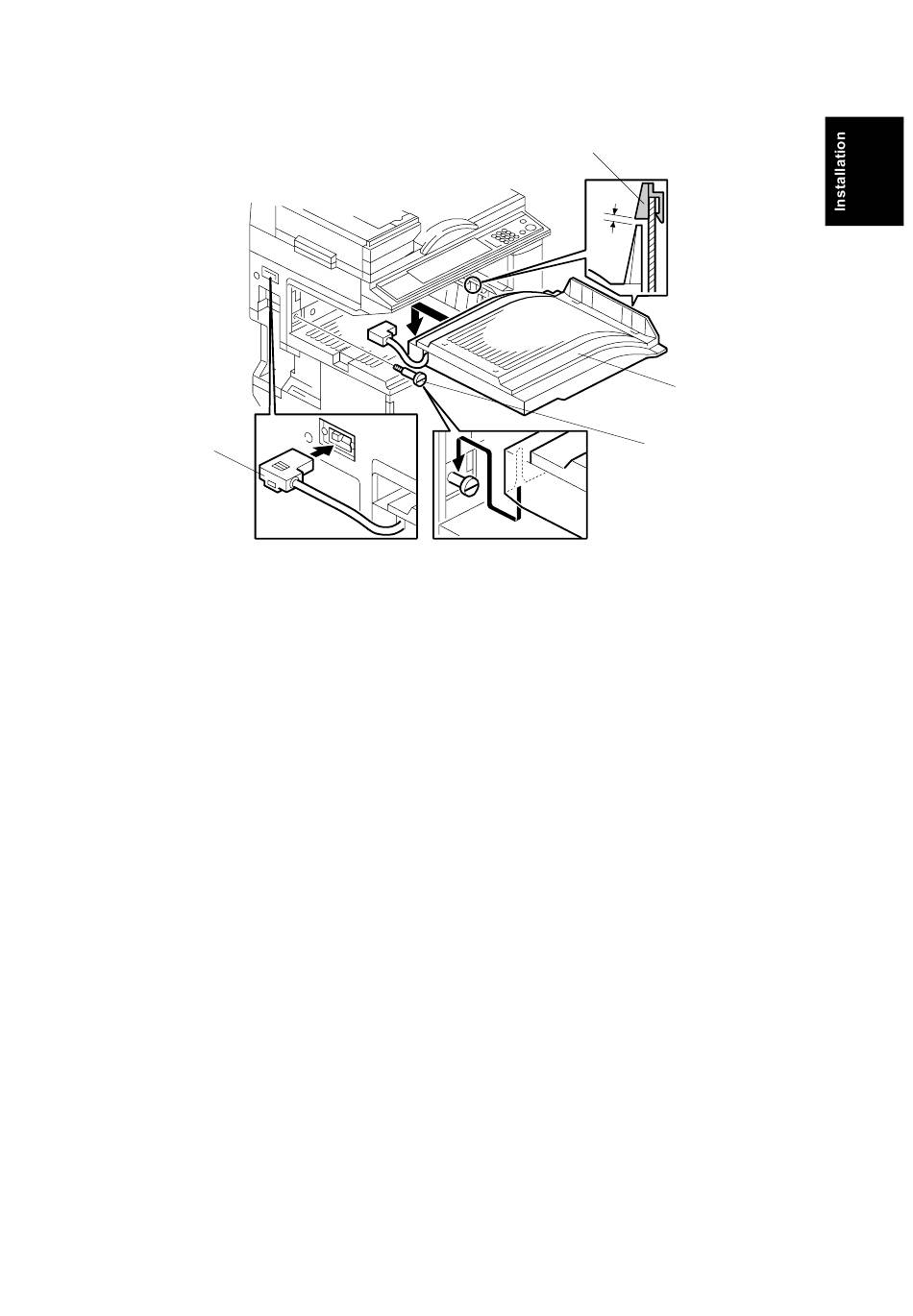

4. Install the stepped screw [A].
5. Install the shift tray unit [B], as shown.
NOTE: 1) Set the shift tray on the stepped screw.
2) The shift tray must be installed under the paper guide [C] installed in
step 3.
6. Connect the cable [D] to the copier.
7. Turn on the main power switch.
8. Check the shift tray operation.
