21 July 2006 PAPER FEED

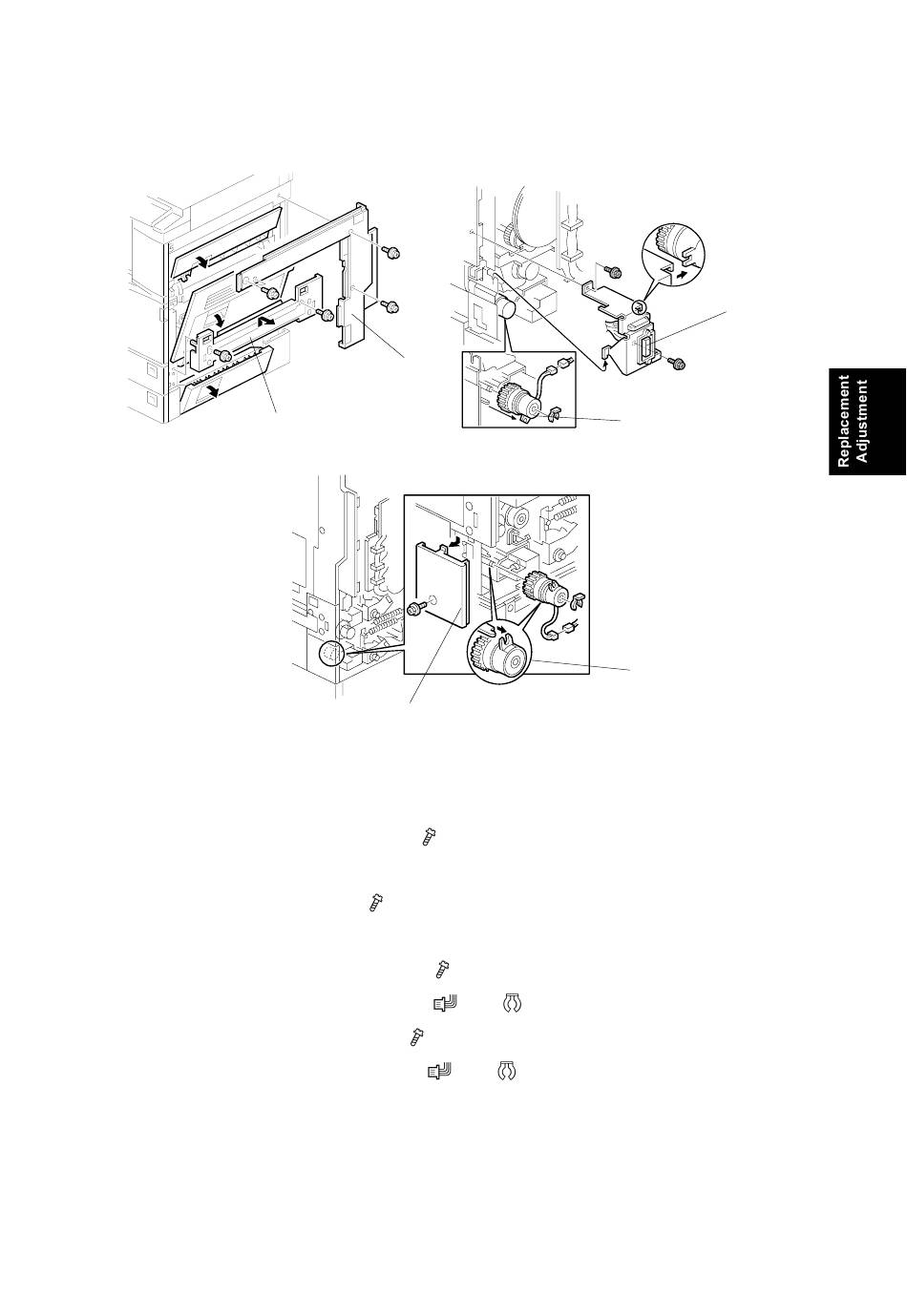

3.10.7 RELAY CLUTCHES

[C]
[B]
[A]
[D]
B205R954.WMFF
B205R953.WMFF
[F]
[E]
B205R950.WMFF
1. Remove the optional duplex unit and/or by-pass tray unit if they have been
installed.
2. Remove the rear cover and lower rear cover.
3. Remove the lower right cover [A] ( x2).
4. Remove the scanner right cover.
5. Remove the right cover [B] ( x4).
6. Swing down the SBCU board bracket.
7. Remove the connector bracket [C] ( x 2).
8. Replace the upper relay clutch [D] ( x 1, x 1).
9. Remove the right rear cover [E] ( x1).
10. Replace the lower relay clutch [F] ( x 1, x 1).
3-43
