6.5.3 AUTO IMAGE DENSITY

ADS prevents the background of an original from appearing on copies.

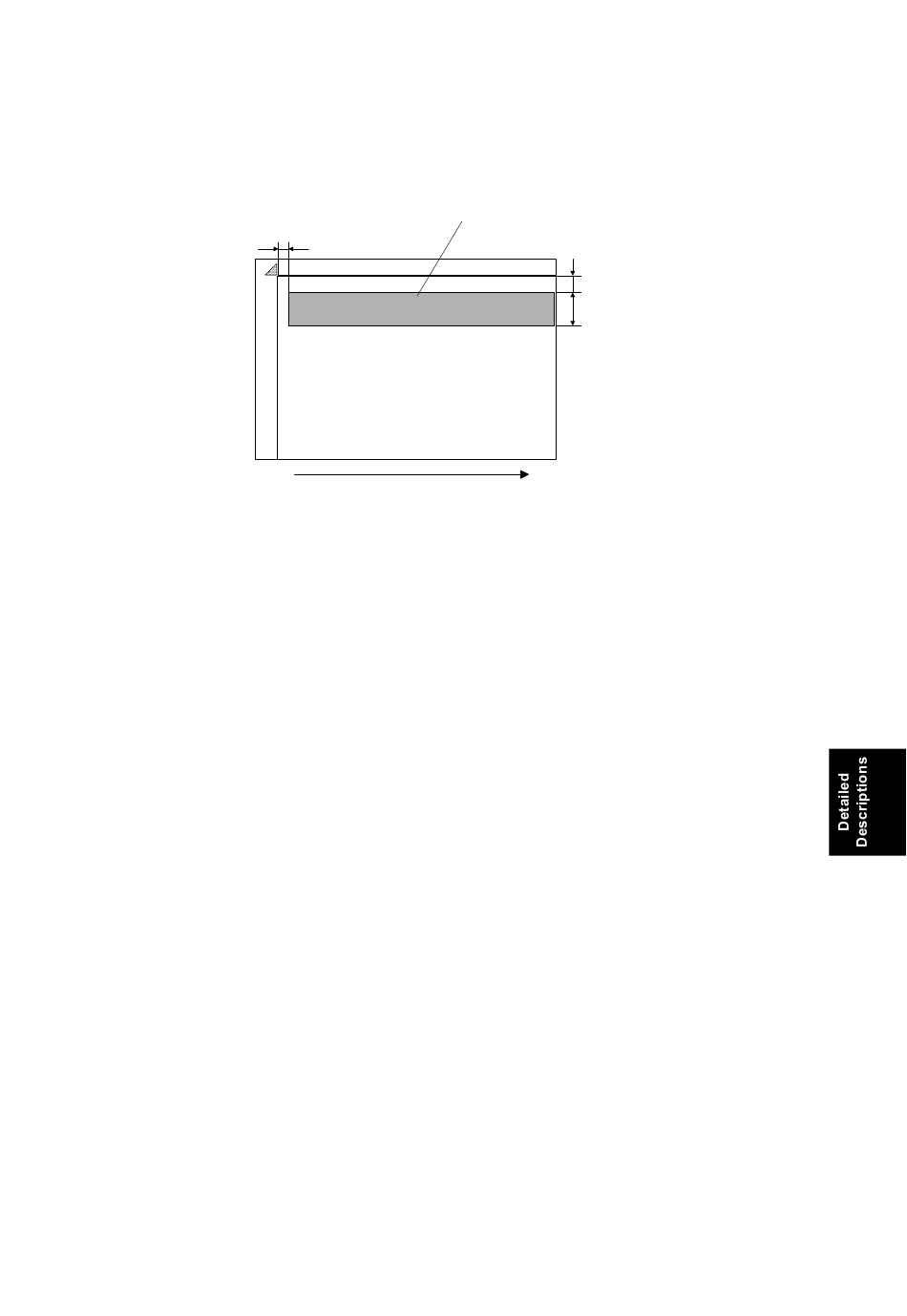

The copier scans the auto image density detection area [A] as shown in the
diagram. This corresponds to a few mm at one end of the main scan line. As the
scanner scans down the page, the SBU detects the peak white level for each scan
line. The IPU performs the ADS function in accordance with the peak white level.
When an original with a gray background is scanned, the density of the gray area is
the peak white level density. Therefore, the original background will not appear on
copies. Because peak level data is taken for each scan line, ADS corrects for any
changes in background density down the page.
As with previous digital copiers, the user can select manual image density when
selecting auto image density mode, and the machine will use both settings when
processing the original.
0.5mm
Sub scan direction
6-21
IMAGE PROCESSING
[A]
20mm
80mm
B205D915.WMF
